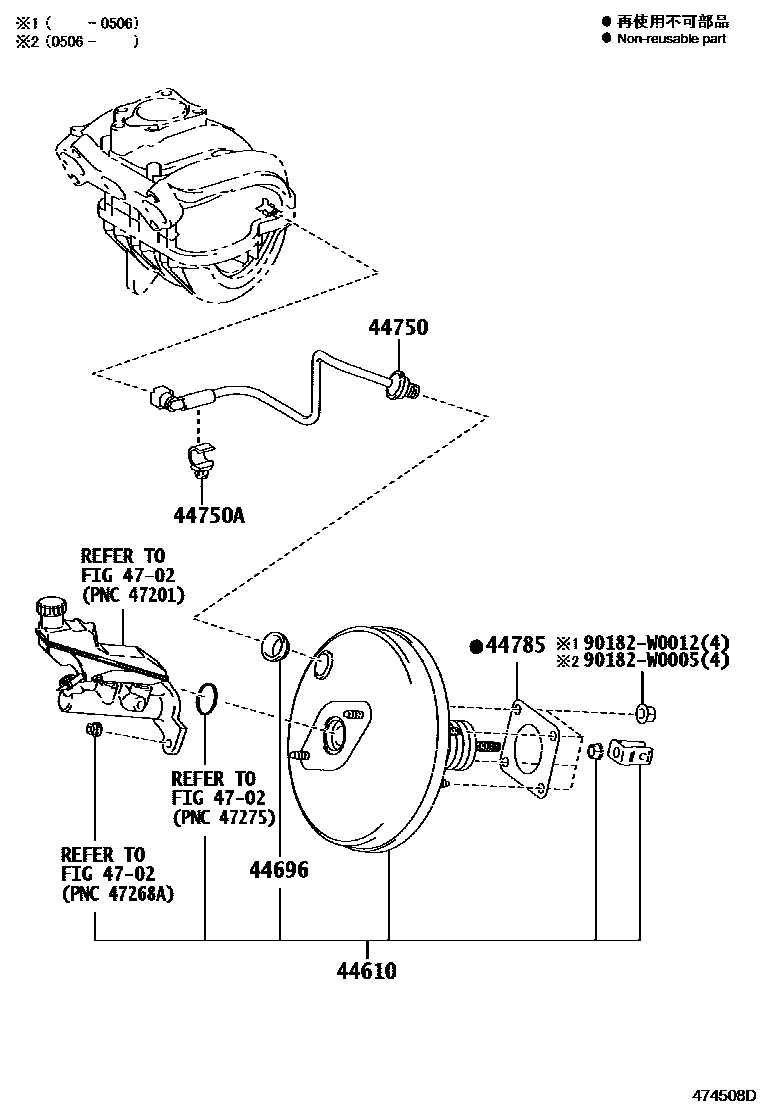

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-09200supersedes 44610-09670iKGB10,WNB10..LHD200812-201009

main44610-09210supersedes 44610-09680iKGB10,WNB10..RHD200812-201009

main44610-09670supersedes 44610-09200iKGB10..LHD201307

WITHOUT(*VSC)

main44610-09680iKGB10..RHD..5F201307

WITHOUT(*VSC)

44696GROMMET, CHECK VALVE

main44692-0H010iKGB10200812-201202

44750HOSE ASSY, VACUUM

main44750-0H010iKGB10..LHD200812-201202

main44750-0H020iKGB10..RHD201202

main44750-0H030iWNB10..LHD200505-200812

main44750-0H040iWNB10..RHD200505-200812

44750ACLIP(FOR VACUUM HOSE ASSY)

main44783-70010iKGB10200502-200812

main44783-70030iWNB10..RHD200505-200812

44785GASKET, BRAKE BOOSTER

main44785-16020iKGB10,WNB10200502-200812

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182W0005

main90182-W0005

90182W0012

main90182-W0012

8 parts on this diagram · 4 diagrams in section
