Toyota YARIS — V-BELT

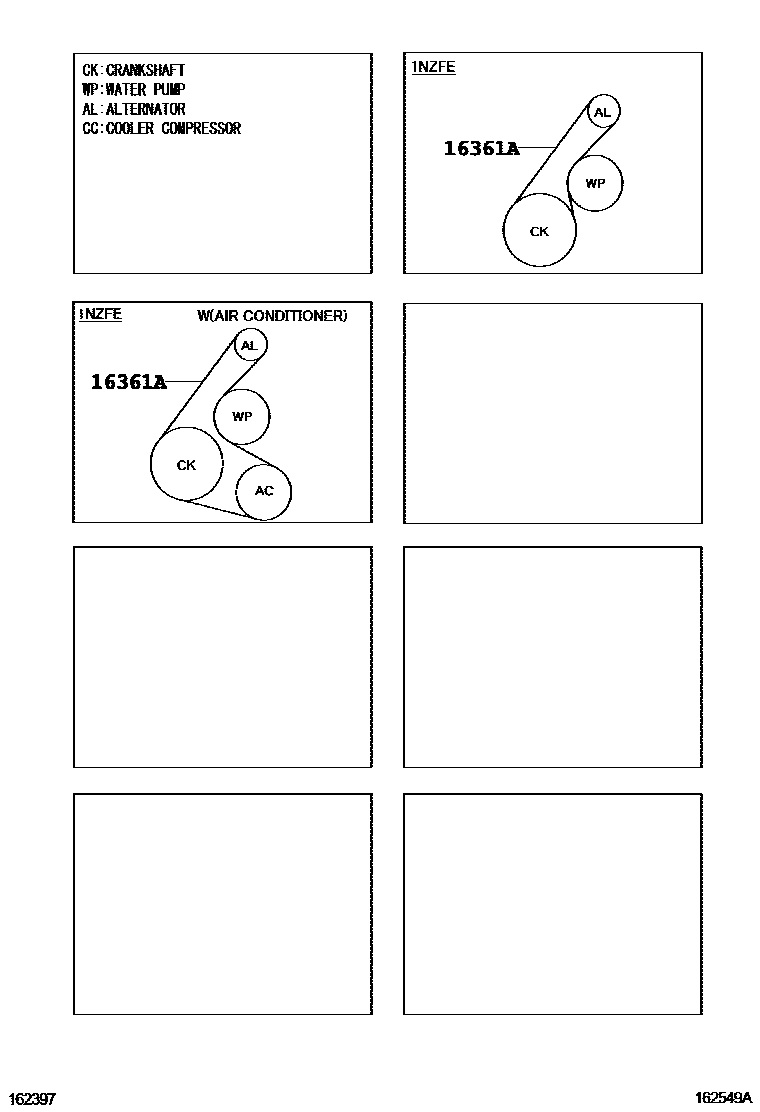

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02499i¥2,680200602-200808

sub90916-02704¥2,430

main90916-02499i¥2,680200808-201211

MARK 90916-02499

sub90916-02704¥2,430

main90916-02500i¥2,930201211

main90916-02704i¥2,430201201-201211

MARK 90916-02704

1 parts on this diagram · 1 diagram in section
