Toyota YARIS — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

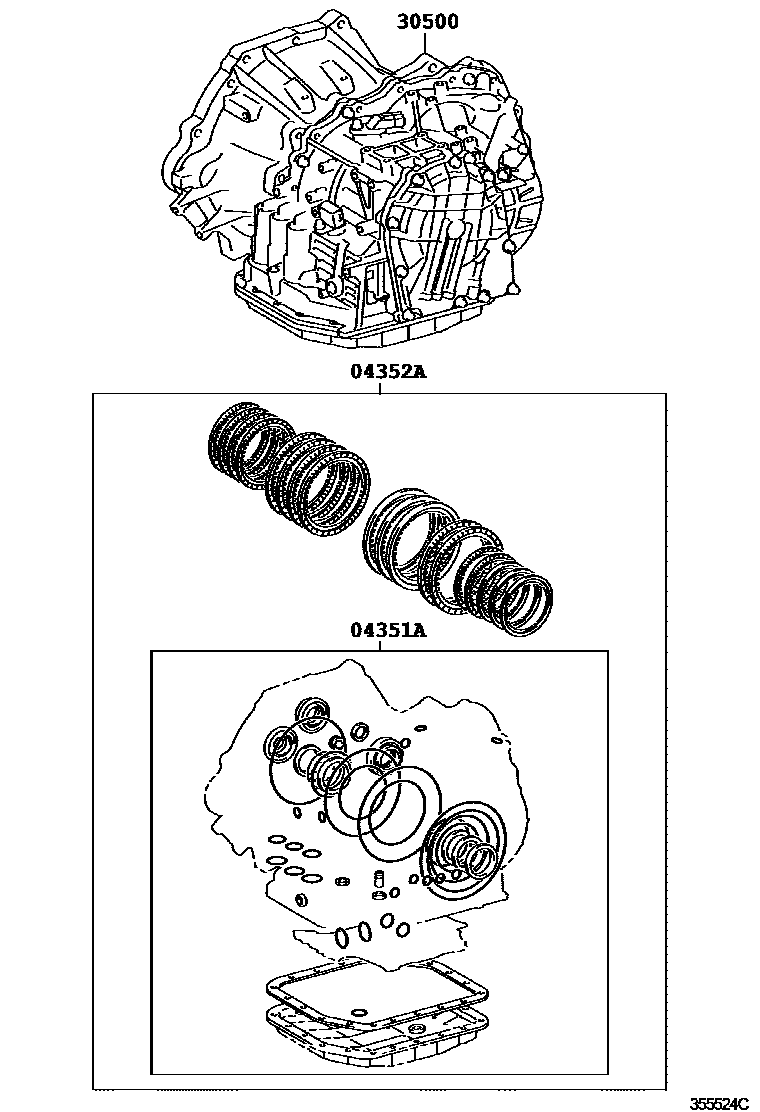

Parts diagram
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
main04351-52350i200602-200808
sub04351-52510¥25,600
main04351-52350i200808-200903
sub04351-52510¥25,600
main04351-52510i¥25,600200903-201003
sub04351-52511¥25,600
main04351-52511i¥25,600201003-201201
sub04351-52512¥25,600
main04351-52512i¥25,600201201-201307
sub04351-52513¥25,600
main04351-52513i¥25,600201307
04352AKIT, TRANSAXLE OVERHAUL(ATM)
main04352-52370i200602-200808
sub04352-52371
main04352-52370i200808-201003
sub04352-52371
main04352-52371i201003-201201
sub04352-52372
main04352-52372i201201-201307
sub04352-52373
main04352-52373i201307
30500TRANSAXLE ASSY, AUTOMATIC
main30500-52321i200602-200808
U340E
main30500-52321i200808
U340E

3 parts on this diagram · 1 diagram in section
