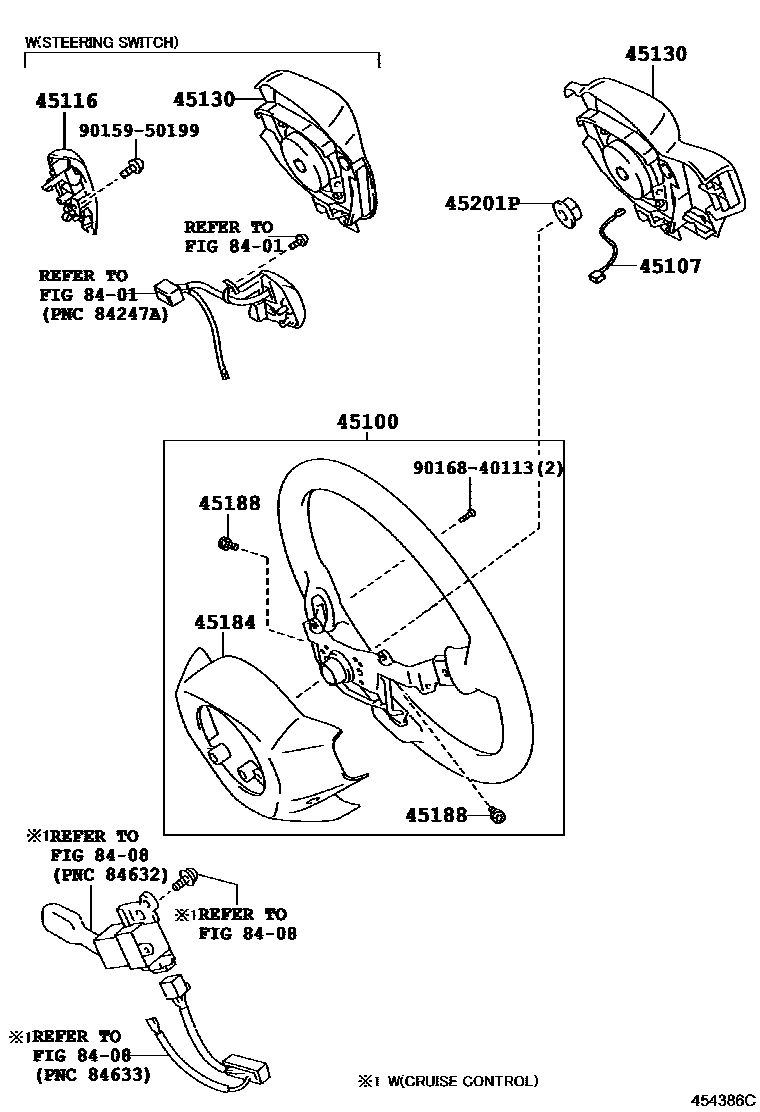

Toyota YARIS — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52321-B0i200602-200808

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-52321-B0i200808-201607

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,41

main45100-52321-B0i200808-201208

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-52321-E0i200808-201208

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-52321-E0i200808-201607

3-SPOKE,URETHANE,ASH BROWN,TRIM40

45107WIRE SUB-ASSY, HORN BUTTON

main45107-52010i¥170200808

CRUISE CONTROL-WITH(ELECTRIC)

main45107-52010i¥170200808

CRUISE CONTROL-WITH(ELECTRIC)&STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH)

main45107-52010i¥170200808

CRUISE CONTROL-WITH(ELECTRIC)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)

main45107-52010i¥170200808

STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH)

main45107-52010i¥170200808

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)

main45107-52010i¥170200602-200808

POWER PACKAGE

main45107-52010i¥170200808

S PACKAGE(POWER PACKAGE)

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52040¥1,800

45130BUTTON ASSY, HORN

main45130-52441-B0i200808-201607

DK.GRAY,TRIM1#,41

main45130-52441-B0i200602-200808

DK.GRAY,TRIM1#,4#

main45130-52441-B0i200808-201208

DK.GRAY,TRIM1#

main45130-52441-E0i200808-201607

ASH BROWN,TRIM40

main45130-52441-E0i200808-201208

ASH BROWN,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52090-B0i200602-200808

DK.GRAY,TRIM1#,4#

main45184-52090-B0i200808-201208

DK.GRAY,TRIM1#

main45184-52090-B0i200808-201607

DK.GRAY,TRIM1#,41

main45184-52090-E0i200808-201208

ASH BROWN,TRIM4#

main45184-52090-E0i200808-201607

ASH BROWN,TRIM40

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010i¥160200602-200808

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i¥130200602-200808

8401

8408

9015950199

main90159-50199¥70

9016840113

main90168-40113¥60

11 parts on this diagram · 1 diagram in section
