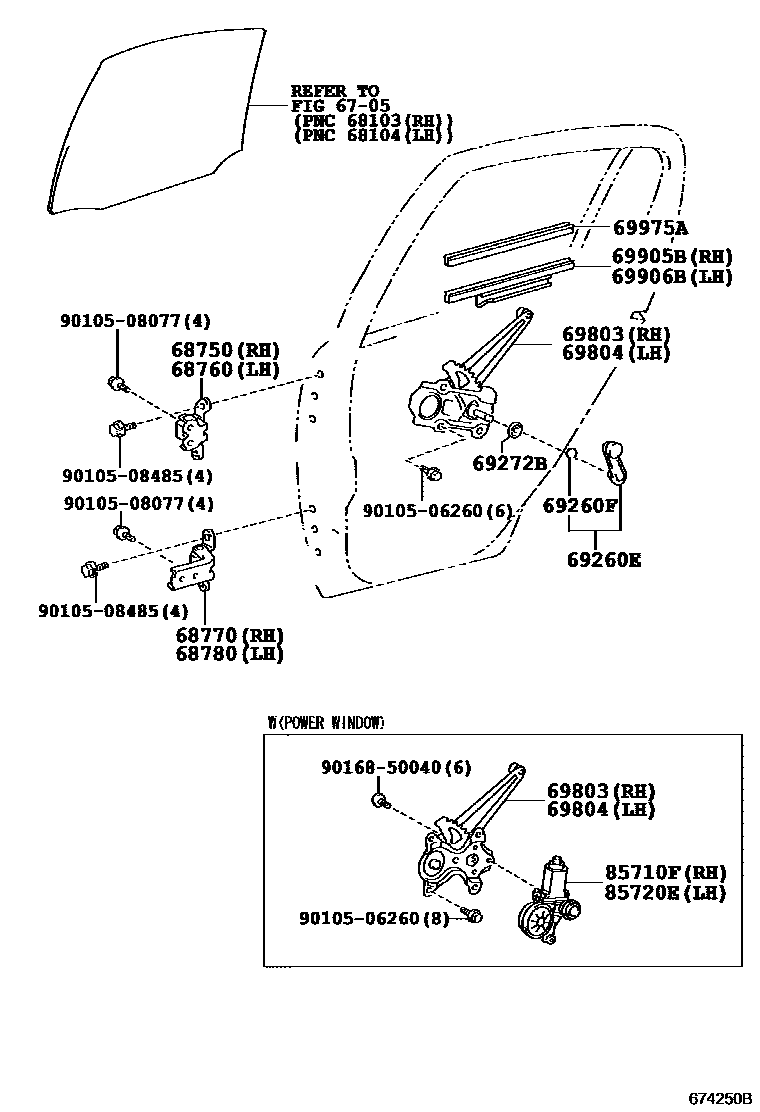

Toyota YARIS — REAR DOOR WINDOW REGULATOR & HINGE
6705
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
DK.GRAY,TRIM1#,41
POWER WINDOW-WITH,DK.GRAY,TRIM1#
POWER WINDOW-WITH,DK.GRAY,TRIM1#,41
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
POWER WINDOW-WITH,DK.GRAY,TRIM1#,4#
POWER WINDOW-WITH,ASH BROWN,TRIM40
ASH BROWN,TRIM4#
ASH BROWN,TRIM40
POWER WINDOW-WITH,ASH BROWN,TRIM4#
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER WINDOW-WITH
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER WINDOW-WITH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
9010506260
9010508077
9010508485
9016850040
19 parts on this diagram · 1 diagram in section
