Toyota YARIS — RADIATOR GRILLE

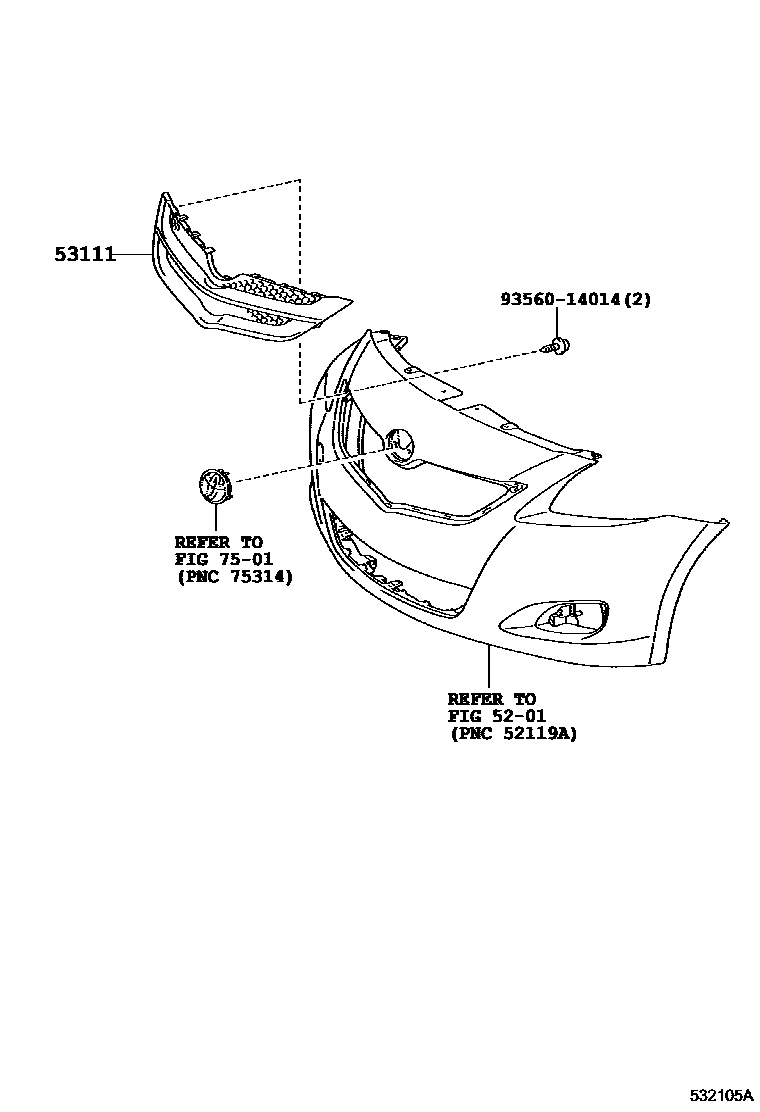

Parts diagram
5201
53111GRILLE, RADIATOR
main53111-52460-A1i200602-200808
WHITE,068
sub53111-52460¥19,700
main53111-52460-B0i200602-200808
DK.GRAY MC.,1E0
sub53111-52460¥19,700
main53111-52460-B1i200602-200808
SILVER M.M.,1E7
sub53111-52460¥19,700
main53111-52460-C0i200602-200808
BLACK MC.,209
sub53111-52460¥19,700
main53111-52460-D0i200602-200808
RED M.M.,3R3
sub53111-52460¥19,700
main53111-52460-G0i200602-200808
LT.OLIVE ME.,6U4
sub53111-52460¥19,700
main53111-52460-H0i200602-200808
TURQUOISE ME.,777
sub53111-52460¥19,700
main53111-52460-J1i200602-200808
GRAYISH BLUE ME.,8R3
sub53111-52460¥19,700
main53111-52460-J2i200602-200808
DK.BLUE MC.,8S6
sub53111-52460¥19,700
main53111-52580-A0i200808-201108
WHITE,068
sub53111-52580¥19,700
main53111-52580-A2i201108-201607
SUPER WHITE 2,040
sub53111-52580¥19,700
main53111-52580-B0i200808-201607
DK.GRAY MC.,1E0
sub53111-52580¥19,700
main53111-52580-B1i200808-201108
SILVER M.M.,1E7
sub53111-52580¥19,700
main53111-52580-B2i201108-201607
SILVER ME.,1F7
sub53111-52580¥19,700
main53111-52580-C0i200808-201607
BLACK MC.,209
sub53111-52580¥19,700
main53111-52580-D0i200808-201607
RED M.M.,3R3
sub53111-52580¥19,700
main53111-52580-H0i200808-201504
TURQUOISE ME.,777
sub53111-52580¥19,700
main53111-52580-J0i200808-201504
BLUE ME.,8N0
sub53111-52580¥19,700
main53111-52580-J1i200808-201607
GRAYISH BLUE ME.,8R3
sub53111-52580¥19,700
main53111-52580-J2i200808-201607
BLUE ME.,8T7
sub53111-52580¥19,700
7501
9356014014
main93560-14014¥60

4 parts on this diagram · 1 diagram in section
