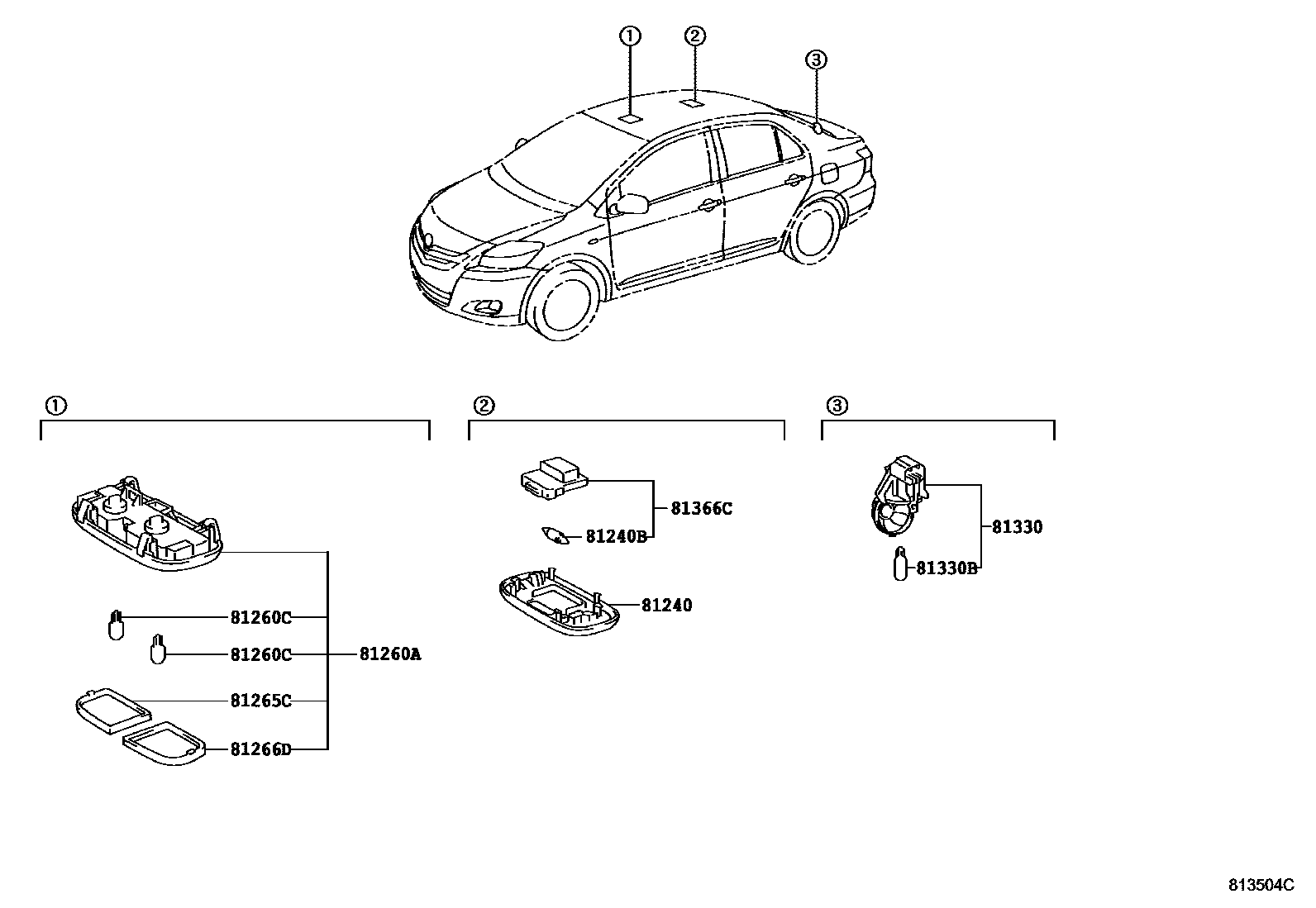

Toyota YARIS — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iNCP93200602-200808

GRAY,TRIM1#

main81240-52040-B0iNCP93200808-201607

GRAY,TRIM1#

main81240-52040-E0iNCP93200602-200808

GREGE,TRIM4#

main81240-52040-E0iNCP93200808-201607

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP93¥180200808

12V 8W

main90981-14011iNCP93¥180200602-200808

12V 8W

81260ALAMP ASSY, MAP

main81260-52030-B0iNCP93200602-200808

GRAY,TRIM1#

main81260-52030-B0iNCP93200808-201607

GRAY,TRIM1#

main81260-52030-E0iNCP93200602-200808

GREGE,TRIM4#

main81260-52030-E0iNCP93200808-201607

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062iNCP93¥340200808

12V 8W

main90981-11062iNCP93¥340200602-200808

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP93¥190200602-200808

main81265-52020iNCP93¥190200808

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP93¥190200602-200808

main81266-52020iNCP93¥190200808

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iNCP93¥840200602-200808

main81330-12020iNCP93¥840200808

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNCP93¥170200602-200808

12V 3.8W

main90981-11020iNCP93¥170200808

12V 3.8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP93¥860200602-200808

main81366-68010iNCP93¥860200808-201607

9 parts on this diagram · 1 diagram in section
