Toyota YARIS — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

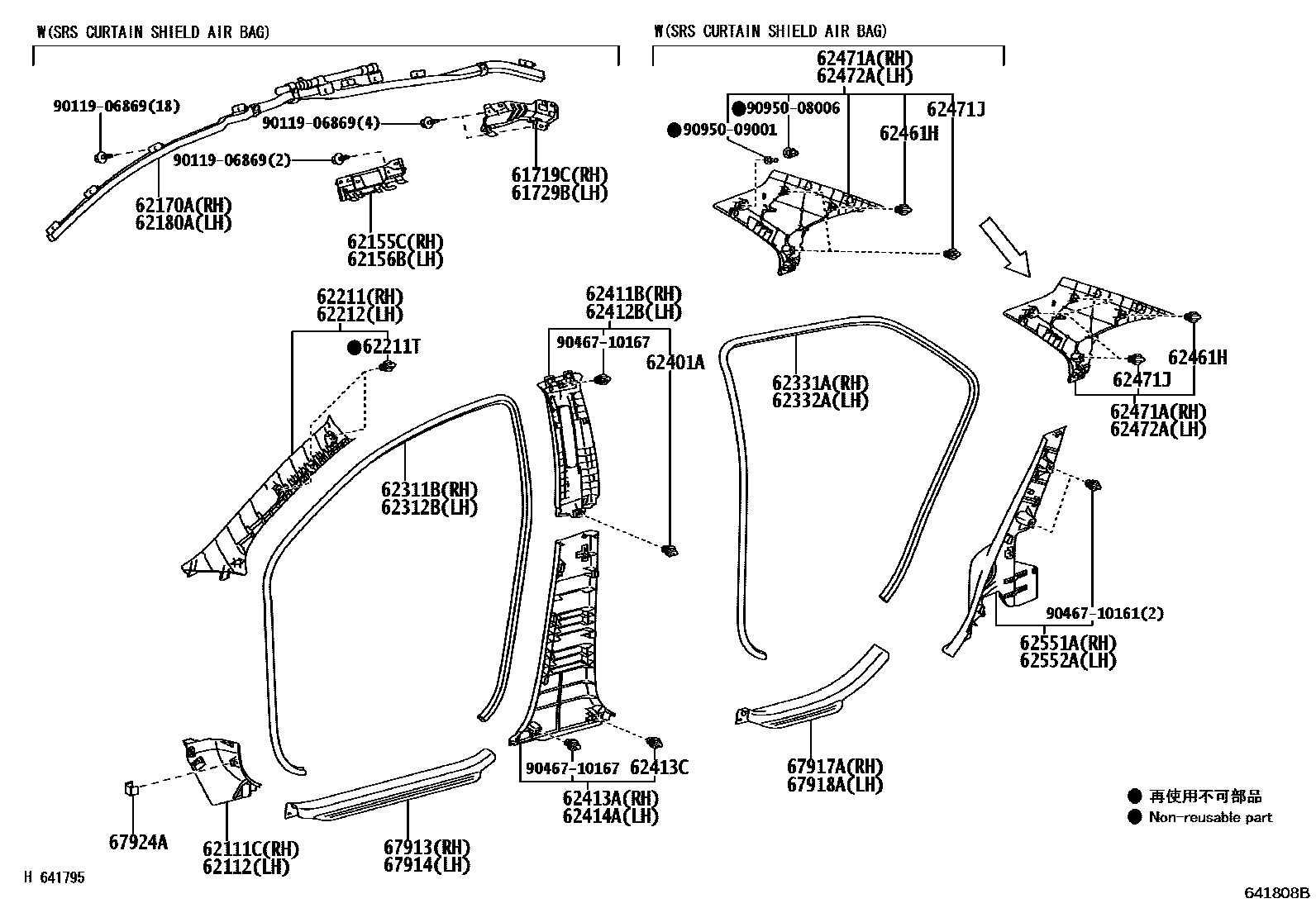

Parts diagram
61719CBRACKET, ROOF SIDE RAIL, RH
main61719-52050i¥2,000200808-201208
SRS AIR BAG-DRIVER
main61719-52050i¥2,000200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main61719-52050i¥2,000201008-201208
61729BBRACKET, ROOF SIDE RAIL, LH
main61729-52060i¥2,000200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main61729-52060i¥2,000200808-201208
SRS AIR BAG-DRIVER
main61729-52060i¥2,000201008-201208
62111CBOARD, COWL SIDE TRIM, RH
main62111-52120-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62111-52120-B0i200808-201208
DK.GRAY,TRIM1#
main62111-52120-B0i200808-201607
DK.GRAY,TRIM1#,41
main62111-52120-E0i200808-201208
ASH BROWN,TRIM4#
main62111-52120-E0i200808-201607
ASH BROWN,TRIM40
62112BOARD, COWL SIDE TRIM, LH
main62112-52170-B0i200808-201607
DK.GRAY,TRIM1#,41
main62112-52170-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62112-52170-B0i200808-201208
DK.GRAY,TRIM1#
main62112-52170-E0i200808-201208
ASH BROWN,TRIM4#
main62112-52170-E0i200808-201607
ASH BROWN,TRIM40
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
main62155-52050i¥1,600200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main62155-52050i¥1,600200808-201208
SRS AIR BAG-DRIVER
main62155-52050i¥1,600201008-201208
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
main62156-52030i¥1,600200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main62156-52030i¥1,600200808-201208
SRS AIR BAG-DRIVER
main62156-52030i¥1,600201008-201208
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-52040i¥44,300200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main62170-52040i¥44,300200808-201208
SRS AIR BAG-DRIVER
main62170-52040i¥44,300201008-201208
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-52040i¥44,300200808-201208
SRS AIR BAG-DRIVER
main62180-52040i¥44,300200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main62180-52040i¥44,300201008-201208
62211GARNISH, FRONT PILLAR, RH
main62211-52180-B0i200602-200610
GRAY,TRIM1#
sub62211-52181¥7,000
sub62211-52180¥7,000
main62211-52180-E0i200602-200610
GREGE,TRIM4#
sub62211-52181¥7,000
sub62211-52180¥7,000
main62211-52181-B0i201208-201607
GRAY,TRIM1#
main62211-52181-B0i200808-201008
GRAY,TRIM1#
main62211-52181-B0i200610-200808
GRAY,TRIM1#
main62211-52181-E0i200610-200808
GREGE,TRIM4#
main62211-52181-E0i200808-201008
GREGE,TRIM4#
main62211-52181-E0i201208-201607
GREGE,TRIM4#
main62211-52191-B0i201008-201202
GRAY,TRIM1#
sub62211-52192¥7,000
main62211-52191-B0i200808-201202
GRAY,TRIM1#
sub62211-52192¥7,000
main62211-52191-E0i200808-201202
GREGE,TRIM4#
sub62211-52192¥7,000
main62211-52191-E0i201008-201202
GREGE,TRIM4#
sub62211-52192¥7,000
main62211-52192-B0i201203-201208
GRAY,TRIM1#
main62211-52192-E0i201203-201208
GREGE,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main62217-52070i¥310201008-201202
main62217-52070i¥310200808-201202
main62217-52130i¥270201203-201208
main90467-10161i¥90200808-200810
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main90467-10161i¥90200602-200808
main90467-10161i¥90200808-200810
SRS AIR BAG-DRIVER
main90467-10188i¥80201208
main90467-10188i¥80200811-201008
62212GARNISH, FRONT PILLAR, LH
main62212-52180-B0i200602-200610
GRAY,TRIM1#
sub62212-52181¥7,000
sub62212-52180¥7,000
main62212-52180-E0i200602-200610
GREGE,TRIM4#
sub62212-52181¥7,000
sub62212-52180¥7,000
main62212-52181-B0i200610-200808
GRAY,TRIM1#
main62212-52181-B0i201208-201607
GRAY,TRIM1#
main62212-52181-B0i200808-201008
GRAY,TRIM1#
main62212-52181-E0i201208-201607
GREGE,TRIM4#
main62212-52181-E0i200610-200808
GREGE,TRIM4#
main62212-52181-E0i200808-201008
GREGE,TRIM4#
main62212-52191-B0i201008-201202
GRAY,TRIM1#
sub62212-52192¥7,000
main62212-52191-B0i200808-201202
GRAY,TRIM1#
sub62212-52192¥7,000
main62212-52191-E0i201008-201202
GREGE,TRIM4#
sub62212-52192¥7,000
main62212-52191-E0i200808-201202
GREGE,TRIM4#
sub62212-52192¥7,000
main62212-52192-B0i201203-201208
GRAY,TRIM1#
main62212-52192-E0i201203-201208
GREGE,TRIM4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-52170-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62311-52170-B0i200808-201208
DK.GRAY,TRIM1#
main62311-52170-B0i200808-201607
DK.GRAY,TRIM1#,41
main62311-52170-E0i200808-201607
ASH BROWN,TRIM40
main62311-52170-E0i200808-201208
ASH BROWN,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-52140-B0i200808-201607
DK.GRAY,TRIM1#,41
main62312-52140-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62312-52140-B0i200808-201208
DK.GRAY,TRIM1#
main62312-52140-E0i200808-201607
ASH BROWN,TRIM40
main62312-52140-E0i200808-201208
ASH BROWN,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-52060-B0i200808-201208
DK.GRAY,TRIM1#
main62331-52060-B0i200808-201607
DK.GRAY,TRIM1#,41
main62331-52060-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62331-52060-E0i200808-201607
ASH BROWN,TRIM40
main62331-52060-E0i200808-201208
ASH BROWN,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-52080-B0i200808-201607
DK.GRAY,TRIM1#,41
main62332-52080-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62332-52080-B0i200808-201208
DK.GRAY,TRIM1#
main62332-52080-E0i200808-201607
ASH BROWN,TRIM40
main62332-52080-E0i200808-201208
ASH BROWN,TRIM4#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-10161i¥90200602-200808
main90467-10161i¥90200808
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-52150-B0i200808-201607
GRAY,TRIM1#
main62411-52150-B0i200602-200808
GRAY,TRIM1#
main62411-52150-E0i200808-201607
GREGE,TRIM4#
main62411-52150-E0i200602-200808
GREGE,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-52150-B0i200602-200808
GRAY,TRIM1#
main62412-52150-B0i200808-201607
GRAY,TRIM1#
main62412-52150-E0i200602-200808
GREGE,TRIM4#
main62412-52150-E0i200808-201607
GREGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-52110-B0i200808-201208
DK.GRAY,TRIM1#
main62413-52110-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62413-52110-B0i200808-201607
DK.GRAY,TRIM1#,41
main62413-52110-E0i200808-201607
ASH BROWN,TRIM40
main62413-52110-E0i200808-201208
ASH BROWN,TRIM4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i¥90200602-200808
main90467-10161i¥90200808
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-52110-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62414-52110-B0i200808-201208
DK.GRAY,TRIM1#
main62414-52110-B0i200808-201607
DK.GRAY,TRIM1#,41
main62414-52110-E0i200808-201607
ASH BROWN,TRIM40
main62414-52110-E0i200808-201208
ASH BROWN,TRIM4#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-10167i¥90200808
main90467-10167i¥90200602-200808
62471AGARNISH, ROOF SIDE, INNER RH
main62471-52250-B0i200808-201008
GRAY,TRIM1#
main62471-52250-B0i200602-200808
GRAY,TRIM1#
main62471-52250-B0i201208-201607
GRAY,TRIM1#
main62471-52250-E0i201208-201607
GREGE,TRIM4#
main62471-52250-E0i200602-200808
GREGE,TRIM4#
main62471-52250-E0i200808-201008
GREGE,TRIM4#
main62471-52260-B0i201008-201208
GRAY,TRIM1#
main62471-52260-B0i200808-201208
GRAY,TRIM1#
main62471-52260-E0i201008-201208
GREGE,TRIM4#
main62471-52260-E0i200808-201208
GREGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161i¥90200808-201208
SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCED)
main90467-10161i¥90200602-200808
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
main90467-10161i¥90200808-201008
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
main90467-10161i¥90200808-201208
SRS AIR BAG-DRIVER
main90467-10161i¥90201008-201208
main90467-10161i¥90201208
62472AGARNISH, ROOF SIDE, INNER LH
main62472-52300-B0i200602-200808
GRAY,TRIM1#
main62472-52300-B0i201208-201607
GRAY,TRIM1#
main62472-52300-B0i200808-201008
GRAY,TRIM1#
main62472-52300-E0i200602-200808
GREGE,TRIM4#
main62472-52300-E0i200808-201008
GREGE,TRIM4#
main62472-52300-E0i201208-201607
GREGE,TRIM4#
main62472-52310-B0i201008-201208
GRAY,TRIM1#
main62472-52310-B0i200808-201208
GRAY,TRIM1#
main62472-52310-E0i201008-201208
GREGE,TRIM4#
main62472-52310-E0i200808-201208
GREGE,TRIM4#
62551ACOVER, REAR SEAT SIDE, RH
main62551-52170-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62551-52170-B0i200808-201208
DK.GRAY,TRIM1#
main62551-52170-B0i200808-201607
DK.GRAY,TRIM1#,41
main62551-52170-E0i200808-201607
ASH BROWN,TRIM40
main62551-52170-E0i200808-201208
ASH BROWN,TRIM4#
62552ACOVER, REAR SEAT SIDE, LH
main62552-52070-B0i200808-201208
DK.GRAY,TRIM1#
main62552-52070-B0i200602-200808
DK.GRAY,TRIM1#,4#
main62552-52070-B0i200808-201607
DK.GRAY,TRIM1#,41
main62552-52070-E0i200808-201607
ASH BROWN,TRIM40
main62552-52070-E0i200808-201208
ASH BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-52150-B0i200808-201208
DK.GRAY,TRIM1#
main67913-52150-B0i200602-200808
DK.GRAY,TRIM1#,4#
main67913-52150-B0i200808-201607
DK.GRAY,TRIM1#,41
main67913-52150-E0i200808-201607
ASH BROWN,TRIM40
main67913-52150-E0i200808-201208
ASH BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-52160-B0i200808-201208
DK.GRAY,TRIM1#
main67914-52160-B0i200808-201607
DK.GRAY,TRIM1#,41
main67914-52160-B0i200602-200808
DK.GRAY,TRIM1#,4#
main67914-52160-E0i200808-201607
ASH BROWN,TRIM40
main67914-52160-E0i200808-201208
ASH BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-52170-B0i200808-201607
DK.GRAY,TRIM1#,41
main67917-52170-B0i200602-200808
DK.GRAY,TRIM1#,4#
main67917-52170-B0i200808-201208
DK.GRAY,TRIM1#
main67917-52170-E0i200808-201208
ASH BROWN,TRIM4#
main67917-52170-E0i200808-201607
ASH BROWN,TRIM40
67918APLATE, REAR DOOR SCUFF, LH
main67918-52180-B0i200808-201607
DK.GRAY,TRIM1#,41
main67918-52180-B0i200808-201208
DK.GRAY,TRIM1#
main67918-52180-B0i200602-200808
DK.GRAY,TRIM1#,4#
main67918-52180-E0i200808-201607
ASH BROWN,TRIM40
main67918-52180-E0i200808-201208
ASH BROWN,TRIM4#
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-52140i¥210200808
main67924-52140i¥210200602-200808
9011906869
main90119-06869¥60
9046710161
main90467-10161¥90
9046710167
main90467-10167¥90
9095008006
main90950-08006¥180
9095009001
main90950-09001¥250

37 parts on this diagram · 1 diagram in section
