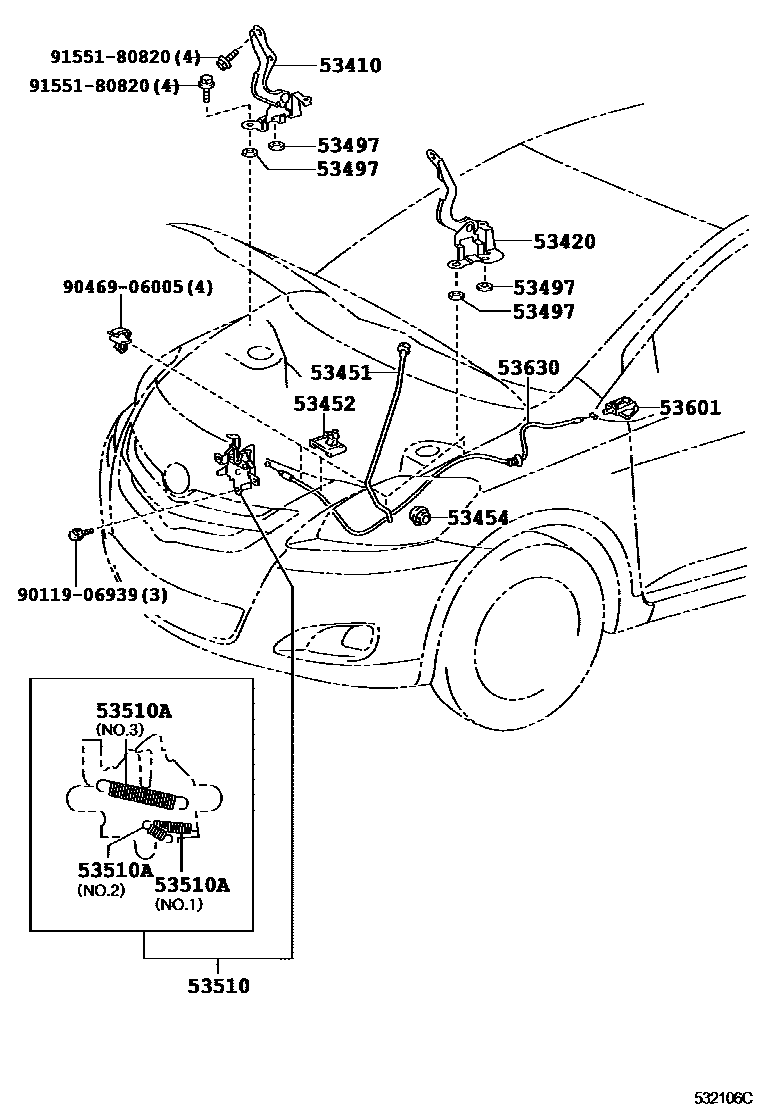

Toyota YARIS — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52240iNCP93¥2,330200602-201607

53420HINGE ASSY, HOOD, LH

main53420-52240iNCP93¥2,330200602-201607

53451ROD, HOOD SUPPORT

main53440-52160iNCP93200602-200808

53452HOLDER, HOOD STAY

main53452-52010iNCP93¥500200602-200808

53454CLIP, HOOD SUPPORT ROD

main53454-52040iNCP93¥130200602-200808

53497PAD, HOOD HINGE, NO.1

main53497-10020iNCP93¥80200602-200808

T=1.5

main53497-42010iNCP93¥100200602-200808

T=0.5

53510LOCK ASSY, HOOD

main53510-52360iNCP93..USA¥3,200200602-201208

main53510-52370iNCP93201208

main53510-52380iNCP93..CND200602-201208

COLD AREA SPEC

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP93¥90200602-200808

WD=0.9,CW=21,NO.1

main90506-12063iNCP93¥90200602-200808

WD=1.2,CW=8.5,NO.2

main90506-16077iNCP93¥120200602-200808

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP93200602-201011

DK.GRAY,TRIM1#

sub53601-52010¥2,230

main53601-52010-C0iNCP93..USA201011-201607

BLACK,TRIM1#,41

sub53601-52010¥2,230

main53601-52010-C0iNCP93..CND201011-201208

BLACK,TRIM1#

sub53601-52010¥2,230

main53601-52010-E3iNCP93..USA201011-201607

ASH BROWN,TRIM40

sub53601-52010¥2,230

main53601-52010-E3iNCP93..CND201011-201208

ASH BROWN,TRIM4#

sub53601-52010¥2,230

main53601-52010-E4iNCP93200602-201011

GREGE,TRIM4#

sub53601-52010¥2,230

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP93¥1,610200602-200808

9011906939

main90119-06939¥60

9046906005

main90469-06005¥80

9155180820

main91551-80820¥80

13 parts on this diagram · 1 diagram in section
