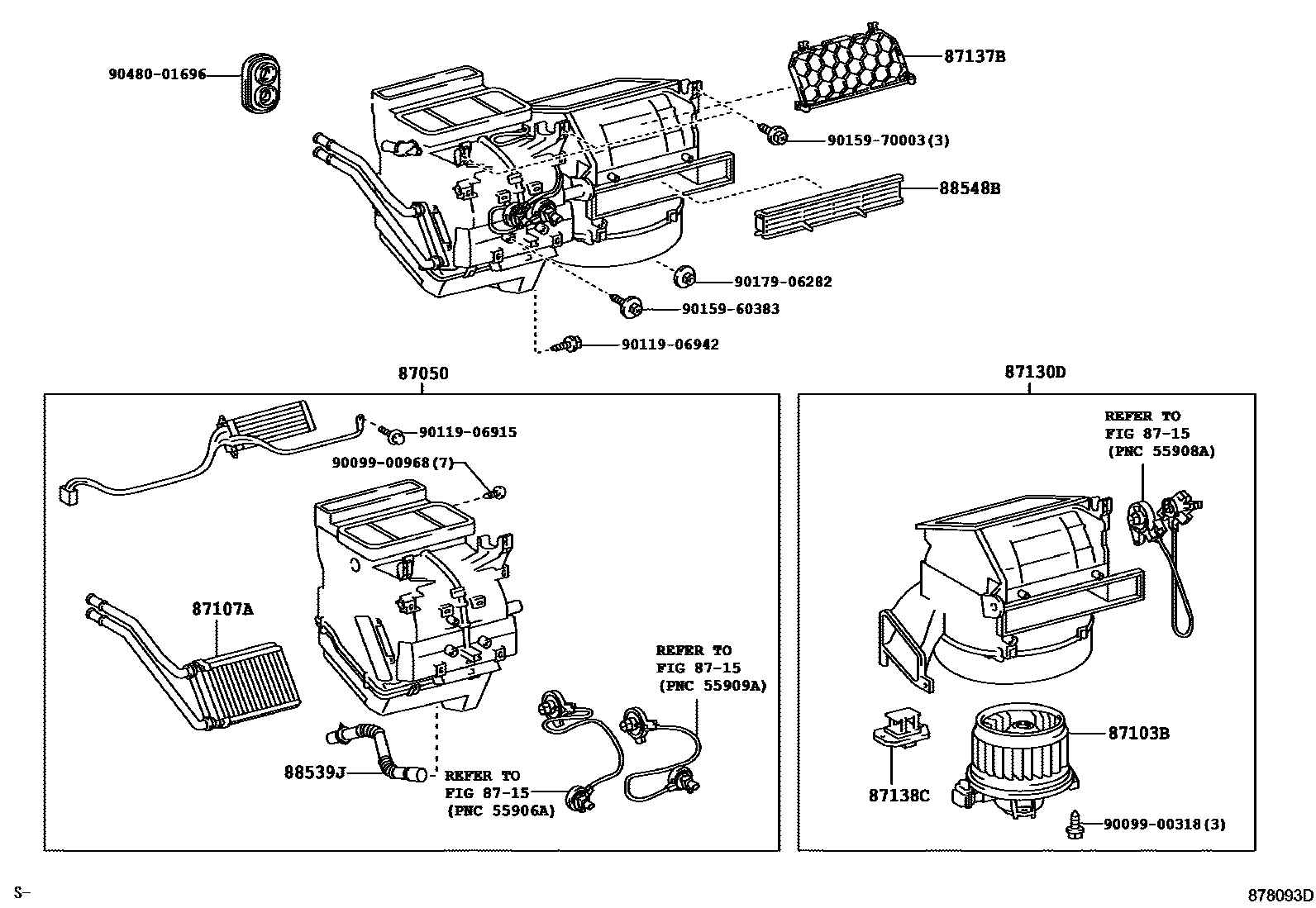

Toyota YARIS — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W/O AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52063iNCP93¥80,100201211

main87050-52101iNCP93..USA200602-200607

sub87050-52102¥40,800

main87050-52102iNCP93..USA¥40,800200608-201211

main87050-52112iNCP93..USA200602-200607

COLD AREA SPEC

sub87050-52113

main87050-52113iNCP93..CND200808-201208

main87050-52113iNCP93..CND200608-200808

COLD AREA SPEC

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52140iNCP93200602-201008

sub87103-52141

main87103-52141iNCP93201009

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52060iNCP93200602-200902

main87107-52061iNCP93¥0200902

87130DBLOWER ASSY

main87130-52092iNCP93201211

main87130-52120iNCP93..USA200602-200701

sub87130-52121

main87130-52121iNCP93..USA200702-200807

sub87130-52122

main87130-52122iNCP93..USA200808-201011

sub87130-52132

main87130-52130iNCP93..CND200602-200701

COLD AREA SPEC

sub87130-52131

main87130-52131iNCP93..USA200702-200807

COLD AREA SPEC

sub87130-52132

main87130-52132iNCP93..USA200808-201211

87137BCOVER, HEATER BLOWER

main87137-52010iNCP93..USA200702-201211

87138CRESISTOR, BLOWER

main87138-52030iNCP93200602-200808

8715

88539JHOSE, DRAIN COOLER

main88539-52020iNCP93200602-201101

sub88539-52030

sub88539-52040

main88539-52040iNCP93201101

88548BCASE, AIR FILTER

main88548-52040iNCP93¥0200602-200808

9009900318

main90099-00318

9009900968

main90099-00968

9011906915

main90119-06915¥60

9011906942

main90119-06942¥60

9015960383

main90159-60383¥70

9015970003

main90159-70003¥60

9017906282

main90179-06282¥90

9048001696

main90480-01696

17 parts on this diagram · 2 diagrams in section
