Toyota YARIS — HEATING & AIR CONDITIONING - COMPRESSOR

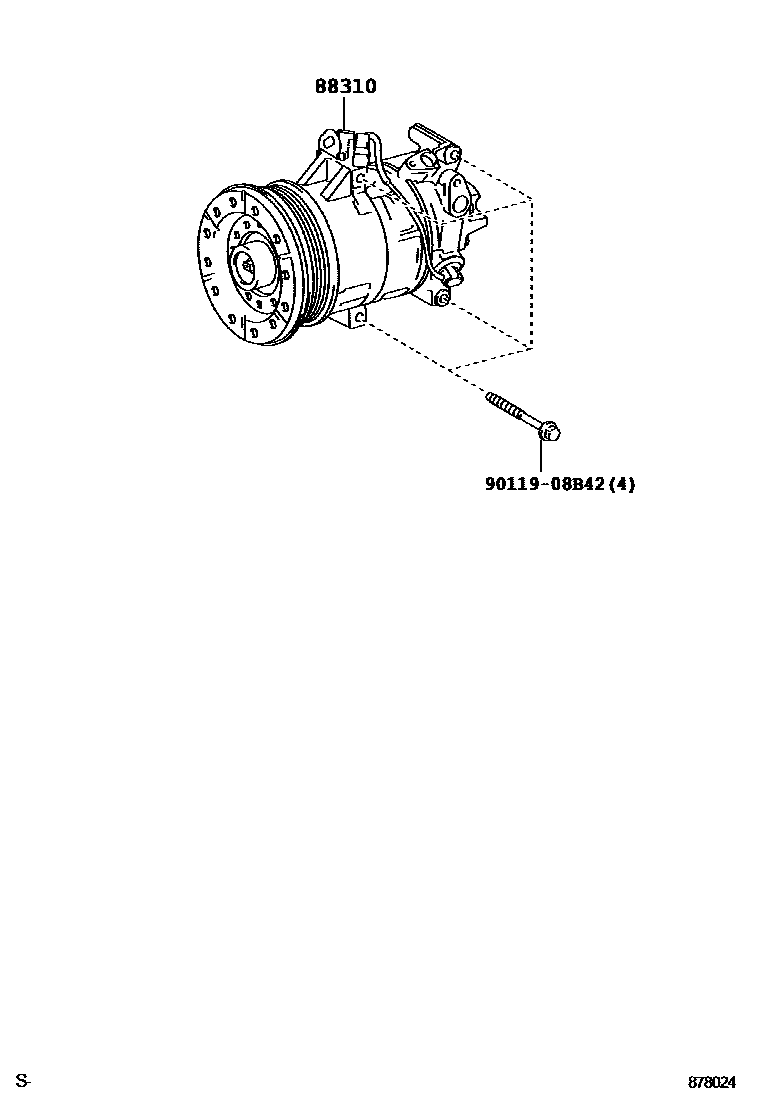

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-52481i201211

9011908B42

main90119-08B42¥0

2 parts on this diagram · 1 diagram in section
