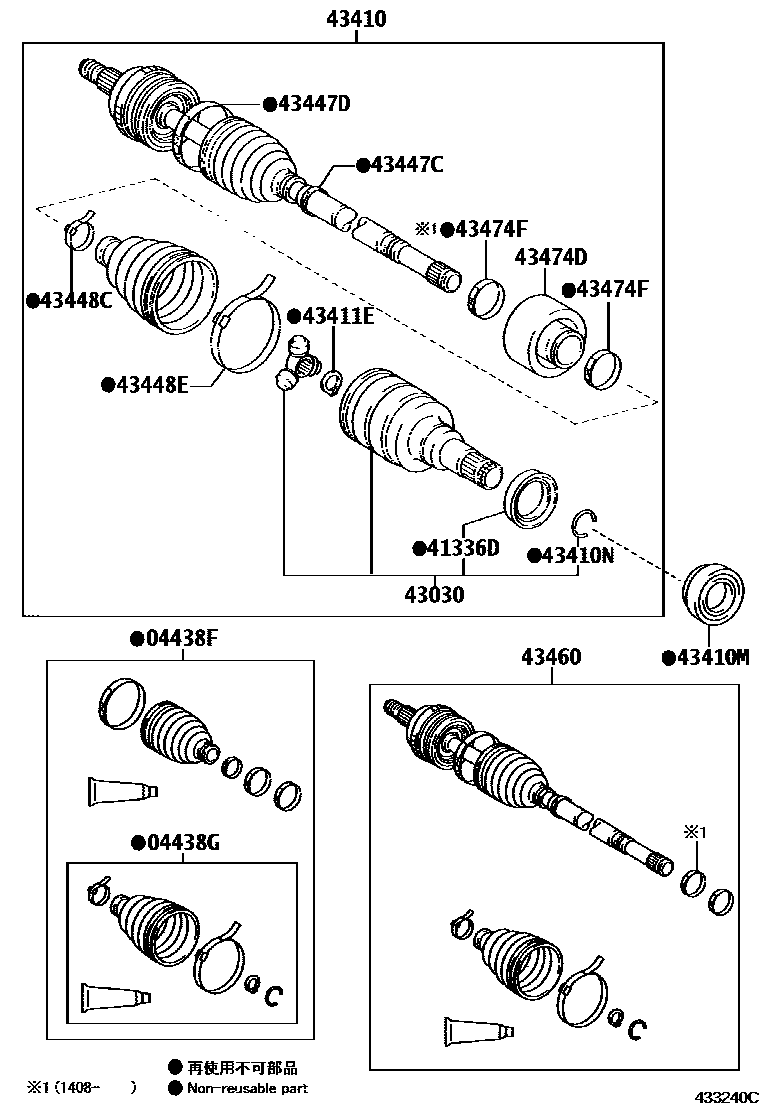

Toyota YARIS — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12530iNCP93¥10,800200808-200909

sub04427-52671¥10,800

main04427-52260iNCP93¥10,800200602-200603

sub04427-52580¥10,800

main04427-52580iNCP93¥10,800200604-200808

sub04427-52671¥10,800

main04427-52671iNCP93¥10,800200909-200910

sub04427-52890¥10,800

main04427-52890iNCP93¥10,800200911-201002

sub04427-52891¥9,000

main04427-52891iNCP93..USA¥9,000201003-201407

sub04427-52897¥9,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52190iNCP93¥6,700200602-200909

sub04437-52191¥5,500

main04437-52191iNCP93¥5,500200909

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP93¥130200602-200808

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNCP93¥19,500200602-200808

sub43403-0W031¥16,200

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52210iNCP93¥68,900200602-200808

sub43410-52211¥52,100

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP93..MTM¥270200602-200811

main90311-34031iNCP93..ATM¥350200602-201212

sub90311-34045¥350

main90311-34033iNCP93..MTM¥350200811-201102

sub90311-34039¥350

main90311-34039iNCP93..MTM¥350201102

main90311-34045iNCP93..ATM¥350201212

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP93¥100200602-200808

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP93¥110200602-200808

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52110iNCP93¥360200602-200808

sub42345-52260¥220

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNCP93¥520200602-200808

sub42345-52250¥330

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP93¥80200602-200808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP93¥350200602-200808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59415iNCP93¥55,800200602-200909

sub43460-59416¥55,800

main43460-59416iNCP93¥55,800200909-201407

sub43460-59666¥49,900

main43460-59666iNCP93¥49,900201408

sub43460-59669¥37,800

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP93¥4,640200602-200808

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP93¥700200602-201408

15 parts on this diagram · 2 diagrams in section
