Toyota YARIS — ENGINE OVERHAUL GASKET KIT

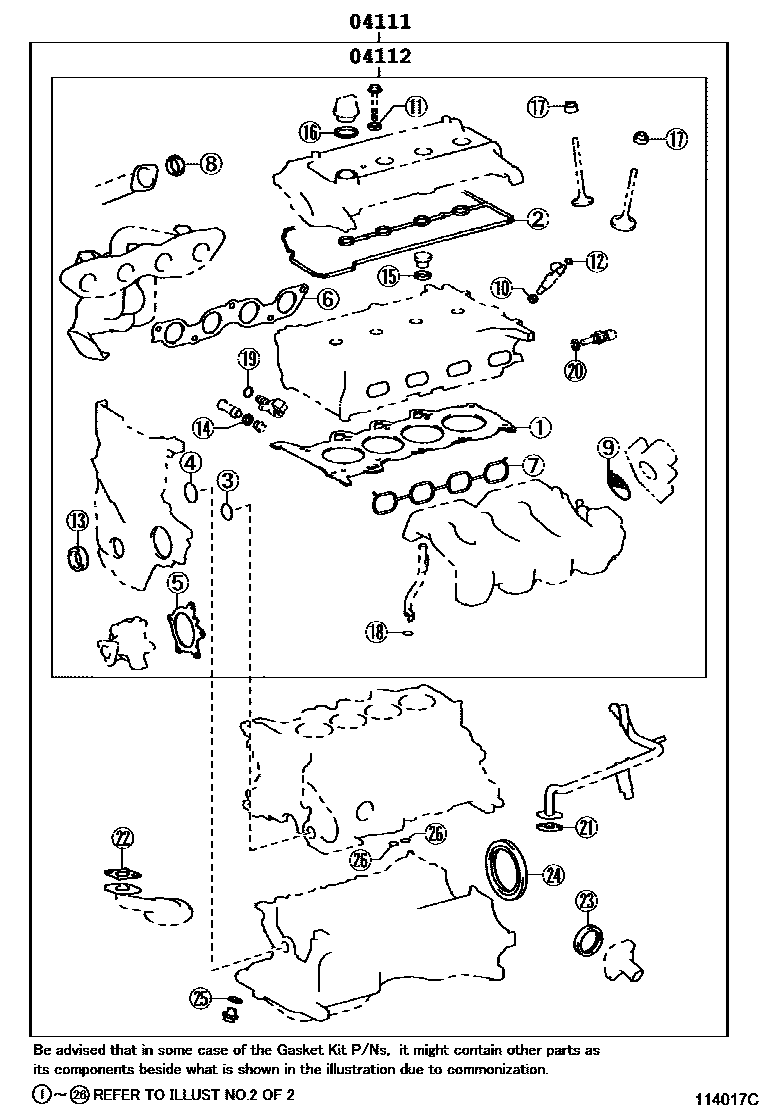

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21230i¥25,600200602-200612
sub04111-21231¥25,500
main04111-21231i¥25,500200612-200811
sub04111-21232¥25,500
main04111-21232i¥25,500200811-201011
sub04111-21233¥25,500
main04111-21233i¥25,500201011-201107
sub04111-21234¥25,500
main04111-21234i¥25,500201107-201110
sub04111-21235¥25,500
main04111-21235i¥25,500201110-201111
sub04111-21236¥25,500
main04111-21236i¥25,500201111-201201
sub04111-21237¥25,500
main04111-21237i¥25,500201201-201204
sub04111-21238¥25,500
main04111-21238i¥25,500201204-201207
sub04111-21239¥25,500
main04111-21360i201207-201311
sub04111-21361
main04111-21361i201311-201402
sub04111-21362
main04111-21362i201402-201604
sub04111-21363
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21230i¥18,400200602-200612
sub04112-21231¥18,400
main04112-21231i¥18,400200612-201011
sub04112-21232¥18,400
main04112-21232i¥18,400201011-201107
sub04112-21233¥18,400
main04112-21233i¥18,400201107-201110
sub04112-21234¥18,400
main04112-21234i¥18,400201110-201111
sub04112-21235¥18,400
main04112-21235i¥18,400201111-201204
sub04112-21236¥18,400
main04112-21236i¥18,400201204-201207
sub04112-21237¥18,400
main04112-21350i201207-201311
sub04112-21351
main04112-21351i201311-201402
sub04112-21352
main04112-21352i201402-201604
sub04112-21353

2 parts on this diagram · 2 diagrams in section
