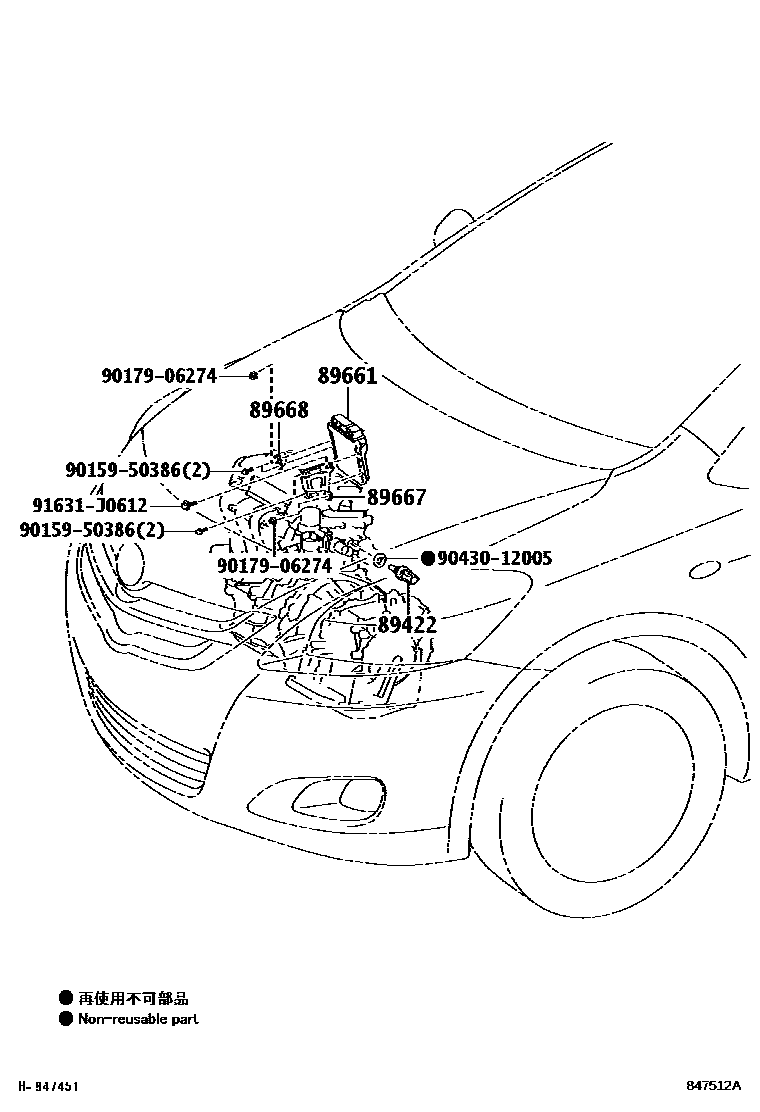

Toyota YARIS — ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i¥2,410200602-200808

89661COMPUTER, ENGINE CONTROL

main89661-52E90i200602-200707

sub89661-52E91

main89661-52E91i200707-200708

sub89661-52G31

main89661-52F00i200602-200608

sub89661-52F01

main89661-52F01i200609-200708

sub89661-52G42

main89661-52G30i200708-200808

sub89661-52G31

main89661-52G40i200708-200710

sub89661-52G41

main89661-52G41i200711-200808

sub89661-52G42

main89661-52G50i200709-200710

sub89661-52G51

main89661-52G51i200711-200808

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J BLACK

sub89661-52G52

main89661-52G51i200711-200808

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J ALUMINUM

sub89661-52G52

main89661-52G61i201211

sub89661-52G62

main89661-52G72i201211

sub89661-52G73

main89661-52J30i200808-200908

sub89661-52J31

main89661-52J40i200808-200908

sub89661-52J41

main89661-52J50i200808-200908

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J BLACK

sub89661-52J51

main89661-52J50i200808-200908

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J ALUMINUM

sub89661-52J51

main89661-52L50i200908-201007

sub89661-52Q30

main89661-52L60i200908-201007

sub89661-52Q40

main89661-52L70i200908-201007

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J ALUMINUM

sub89661-52Q50

main89661-52L70i200908-201007

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J BLACK

sub89661-52Q50

main89661-52Q30i201007-201208

sub89661-52Q31

main89661-52Q40i201007-201211

sub89661-52Q41

main89661-52Q50i201007-201208

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J ALUMINUM

sub89661-52Q51

main89661-52Q50i201007-201208

TIRE & DISC WHEEL-185/60R15 ALL SEASON 5.5J BLACK

sub89661-52Q51

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52200i¥1,070200602-201208

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52220i¥620200602-201208

9015950386

main90159-50386¥60

9017906274

main90179-06274¥70

9043012005

main90430-12005¥110

91631J0612

main91631-J0612¥110

8 parts on this diagram · 1 diagram in section
