Toyota YARIS — DISC WHEEL & WHEEL CAP

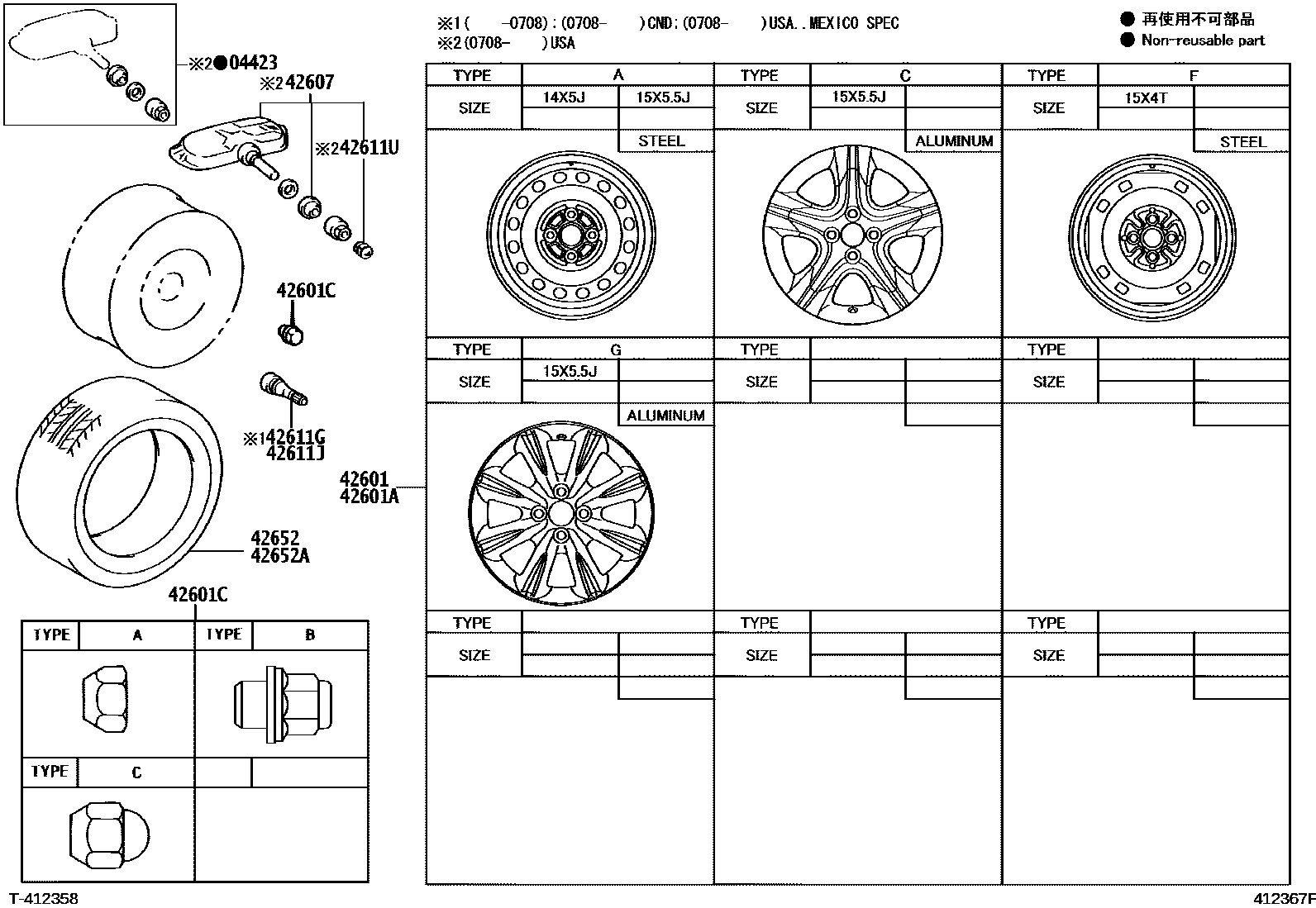

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i¥460200708-201211
sub04423-33060¥280
42601WHEEL, DISC
main42611-52490i¥9,000200602-200706
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52491¥9,000
main42611-52491i¥9,000200706-200906
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52492¥9,000
main42611-52492i¥9,000200906-201009
14X5J, #,TYPE A:REFER ILLUST.
sub42611-52493¥8,300
main42611-52493i¥8,300201010-201211
14X5J, #,TYPE A:REFER ILLUST.
main42611-52501i¥10,100200709-200905
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-52502¥10,100
main42611-52502i¥10,100200906-201208
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-52503¥10,100
main42611-52530i¥34,500201211
15X5.5, #,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-1A020i¥9,400200602-201211
15X4T,TYPE F:REFER ILLUST.
main42611-1A020i¥9,400200602-201211
15X4T,TIRE & DISC WHEEL-175/65R14 OFF ROAD SPEC,5J BLACK,TYPE F:REFER ILLUST.
main42611-1A020i¥9,400200602-201211
15X4T,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK,TYPE F:REFER ILLUST.
main42611-1A020i¥9,400200602-201211
15X4T,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM,TYPE F:REFER ILLUST.
main42611-1A020i¥9,400200808-201211
15X4T,MEXICO SPEC&TIRE & DISC WHEEL-175/65R14 OFF ROAD SPEC,5J BLACK,TYPE F:REFERILLUST.
main42611-1A020i¥9,400200808-201211
15X4T,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK,TYPE F:REFER ILLUST.
main42611-1A020i¥9,400200808-201211
15X4T,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM,TYPE F:REFER ILLUST.
main42611-52530i¥34,500201211
15X5.5, #,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01007i¥230200602-201211
TYPE A:REFER ILLUST.
main90942-01021i¥330200808-201208
TYPE C:REFER ILLUST.
main90942-01033i¥430201211
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33011i¥10,500200708-201211
sub42607-33012¥10,500
main42607-52010i200808-200911
sub42607-33011¥10,500
main42607-52030i201101-201206
sub42607-33011¥10,500
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i¥390200602-200708
main90942-05009i¥390200602-200808
MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK
main90942-05009i¥390200602-200808
MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i¥390200602-200808
MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM
main90942-05009i¥390200602-200808
TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK
main90942-05009i¥390200602-200808
TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM
main90942-05009i¥390200602-200808
MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK
main90942-05009i¥390200602-200808
TIRE & DISC WHEEL-175/65R14 OFF ROAD SPEC,5J BLACK
main90942-05009i¥390200808
42611UCAP, TIRE VALVE
main90942-05039i¥90200708-201211
42652TIRE
main42652-52720i200602-200709
P175/65R14 *B/S
main42652-52730i200602-200709
P175/65R14 *D/L
main42652-52750i200709-201208
185/60R15,GOODYEAR
42652ATIRE (FOR SPARE)
main42652-12E50i200808-200908
T125/70D15,*T/Y,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK
main42652-12E50i200808-200908
T125/70D15,*T/Y,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM
main42652-12E50i200808-200908
T125/70D15,*T/Y,TIRE & DISC WHEEL-175/65R14 OFF ROAD SPEC,5J BLACK
main42652-12E50i200808-200908
T125/70D15,*T/Y,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK
main42652-12E50i200808-200908
T125/70D15,*T/Y,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM
main42652-12E50i200808-201108
T125/70D15,*T/Y
main42652-12E50i200808-200908
T125/70D15,*T/Y,MEXICO SPEC&TIRE & DISC WHEEL-175/65R14 OFF ROAD SPEC,5J BLACK
main42652-32520i200808-201211
T125/70D15,*B/S

10 parts on this diagram · 3 diagrams in section
