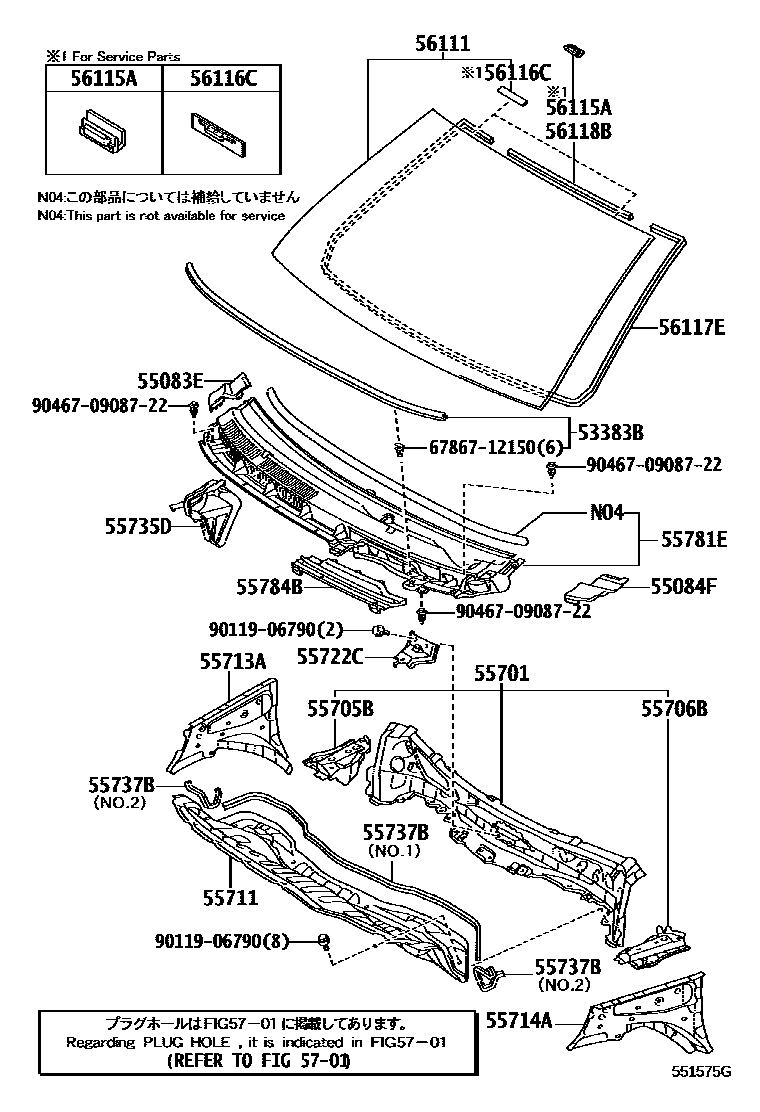

Toyota YARIS — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52100iNCP93¥820200602-200808

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-52080iNCP93¥1,070200602-200808

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-52010iNCP93¥1,070200602-200808

55701PANEL SUB-ASSY, COWL

main55700-52260iNCP93200602-201607

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52110iNCP93¥3,390200602-200808

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52110iNCP93¥3,390200602-200808

55711PANEL, COWL TOP, OUTER

main55701-52220iNCP93¥15,800200602-200808

55713APANEL, COWL TOP SIDE, RH

main55713-52090iNCP93¥4,110200602-201607

55714APANEL, COWL TOP SIDE, LH

main55714-52090iNCP93¥4,110200602-201607

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52060iNCP93¥2,230200602-200808

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52050iNCP93¥1,780200602-200808

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP93¥820200602-200808

NO.1

main55737-52050iNCP93¥240200602-200808

NO.2

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52100iNCP93..USA¥13,600200602-200808

main55708-52120iNCP93..CND¥15,200200602-201208

COLD AREA SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-52080iNCP93¥2,100200602-200808

56111GLASS, WINDSHIELD

main56101-52320iNCP93¥92,500200602-200707

*LAM,T=4.56,GREEN

sub56101-52510

main56101-52322iNCP93¥60,700200902

*LAM,T=4.56,GREEN

main56101-52510iNCP93200708-200901

*LAM,T=4.56,GREEN

sub56101-52511

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP93¥130200602-200808

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP93¥120200602-200808

56117EDAM, WINDOW GLASS ADHESIVE

main56117-52150iNCP93¥1,340200602-200808

L=3141

sub56117-64010¥1,480

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52100iNCP93¥600200602-200808

L=601

sub56117-74010¥750

5701

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150¥100

9011906790

main90119-06790¥60

904670908722

main90467-0908722

23 parts on this diagram · 1 diagram in section
