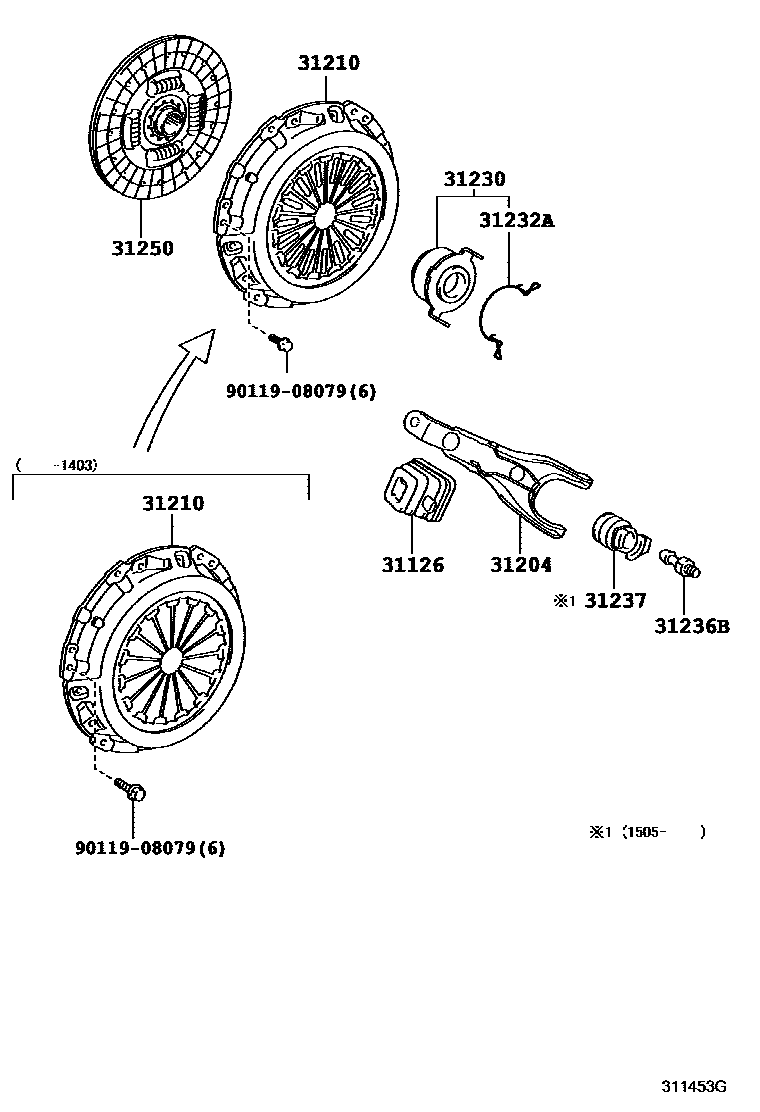

Toyota YARIS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP93..MTM¥570200602-200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP93..MTM¥1,290200602-200808

31210COVER ASSY, CLUTCH

main31210-52050iNCP93..MTM¥12,200200602-200603

sub31210-52051¥12,200

main31210-52051iNCP93..MTM¥12,200200603-200702

sub31210-52052¥10,600

main31210-52052iNCP93..MTM¥10,600200703-201203

sub31210-52053¥9,600

main31210-52053iNCP93..MTM¥9,600201204-201403

main31210-52180iNCP93..MTM¥9,700201403

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP93..MTM¥4,470200602-200812

sub31230-12181¥3,520

main31230-12181iNCP93..MTM¥3,520200812

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP93..MTM¥110200602-200808

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP93..MTM¥460200602-200808

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP93..MTM¥370201505

31250DISC ASSY, CLUTCH

main31250-52050iNCP93..MTM¥15,500200602-200808

9011908079

main90119-08079¥120

9 parts on this diagram · 1 diagram in section
