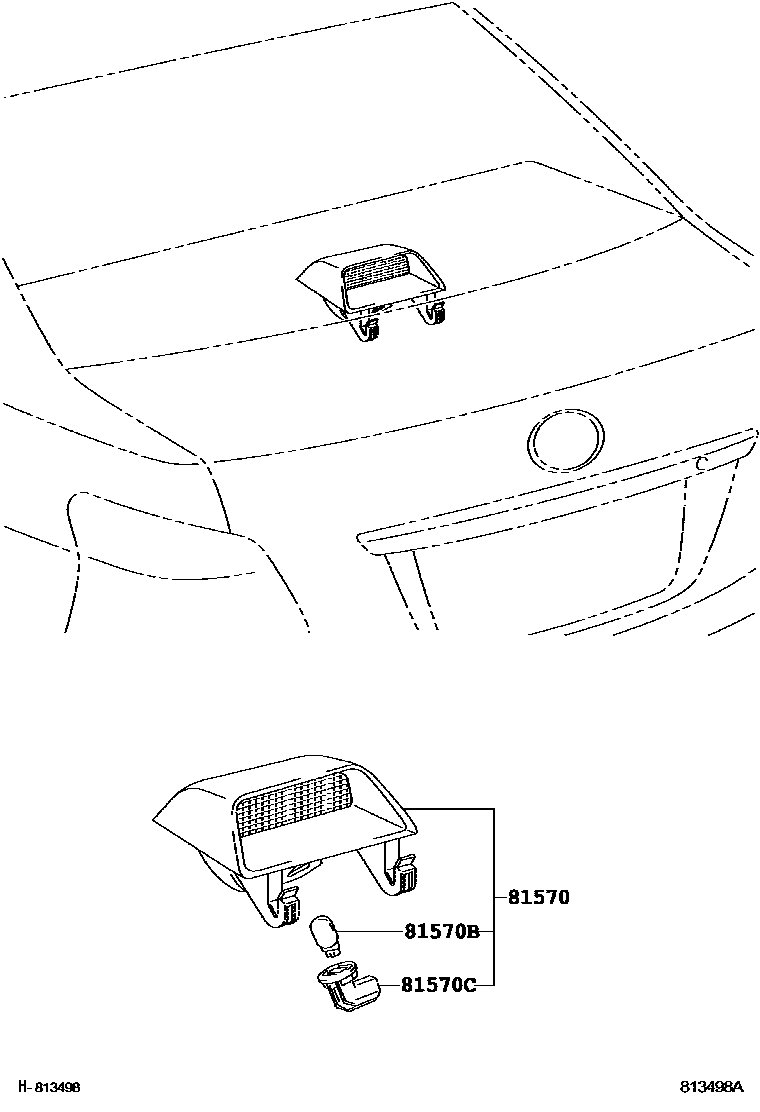

Toyota YARIS — CENTER STOP LAMP

0001 1 0002 1W(REAR SPOILER)

81570LAMP ASSY, CENTER STOP

main81570-12350-B0iNCP93200602-201607

DK.GRAY,TRIM1#

main81570-12350-B0iNCP93200602-200808

REAR SPOILER-WITH,DK.GRAY,TRIM1#

main81570-12350-E1iNCP93200602-201607

GREGE,TRIM4#

main81570-12350-E1iNCP93200602-200808

REAR SPOILER-WITH,GREGE,TRIM4#

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iNCP93¥200200602-200808

12V 16W

main90981-11059iNCP93¥200200602-200808

12V 16W,REAR SPOILER-WITH

81570CSOCKET, CENTER STOP LAMP

main90075-99005iNCP93¥610200602-200808

REAR SPOILER-WITH

main90075-99005iNCP93¥610200808

3 parts on this diagram · 2 diagrams in section
