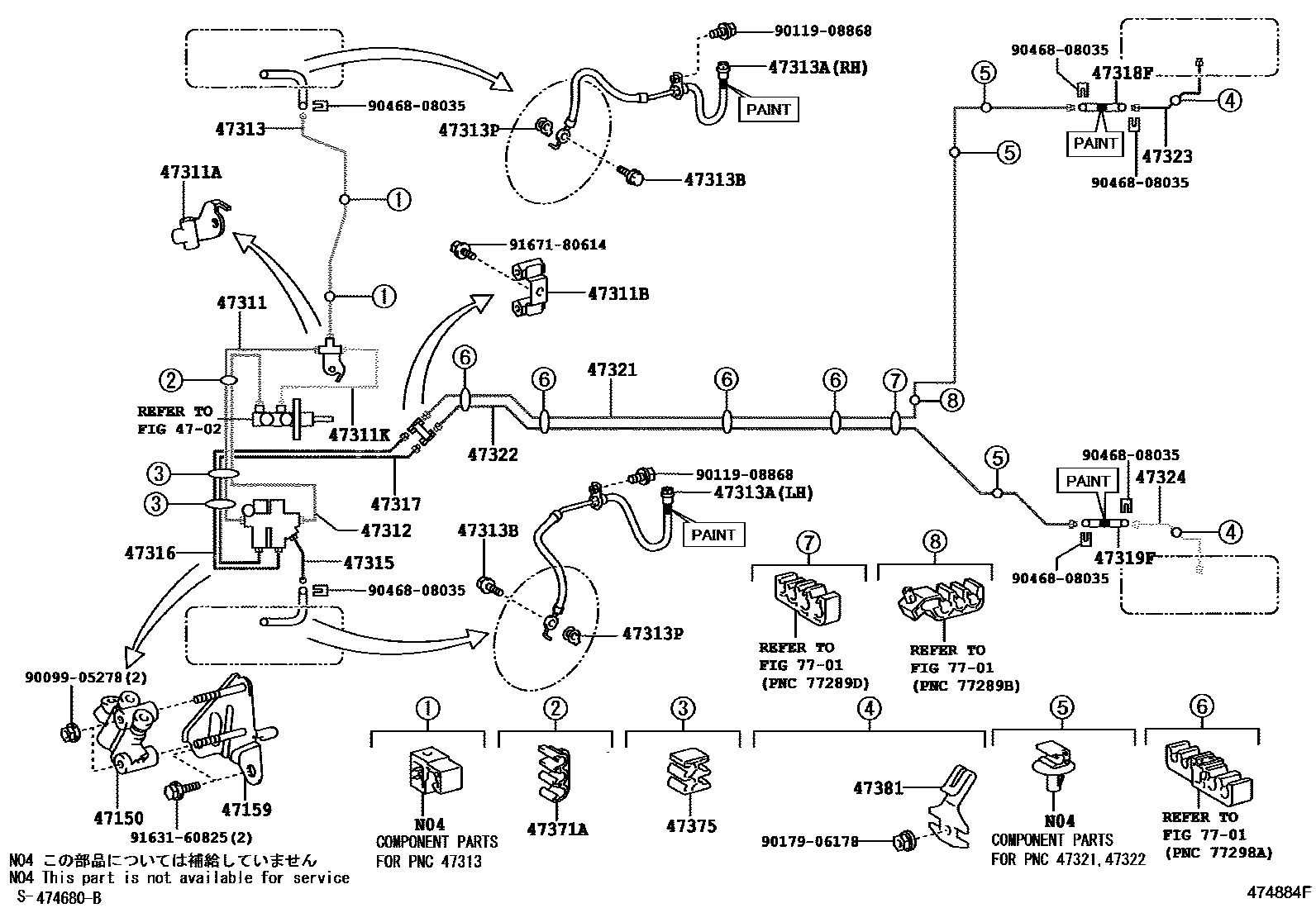

Toyota YARIS — BRAKE TUBE & CLAMP
4702
47150VALVE ASSY, PROPORTIONING
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
POWER PACKAGE&ABS-WITH(W/0 BRAKE ASSIST)
ABS-WITH(W/0 BRAKE ASSIST)
47159BRACKET, PROPORTIONING VALVE
POWER PACKAGE&ABS-WITH(W/0 BRAKE ASSIST)
ABS-WITH(W/0 BRAKE ASSIST)
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
47311TUBE, FRONT BRAKE, NO.1
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
47311AWAY(FOR FRONT BRAKE TUBE)
ABS-WITHOUT
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311KTUBE, BRAKE MASTER CYLINDER TO WAY
ABS-WITHOUT
47312TUBE, FRONT BRAKE, NO.2
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
47313TUBE, FRONT BRAKE, NO.3
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
RH,GREEN
LH
LH,PINK
RH,RED OR L.GREEN
LH,LIGHT BLUE
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
47316TUBE, FRONT BRAKE, NO.6
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
47317TUBE, FRONT BRAKE, NO.7
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
ABS-WITHOUT
sub47317-52260
47318FHOSE, FLEXIBLE(FOR REAR RH)
PAINTED=YELLOW
PAINTED=RED
47319FHOSE, FLEXIBLE(FOR REAR LH)
PAINTED=PINK
PAINTED=LIGHT BLUE
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
ABS-WITHOUT
47375CLAMP, BRAKE TUBE, NO.5
ABS-WITHOUT
POWER PACKAGE&ABS-WITH(WITHOUT BRAKE ASSIST)
MEXICO SPEC&ABS-WITH(WITHOUT BRAKE ASSIST)
PUERTO RICO SPEC&ABS-WITHOUT
ABS-WITH(W/0 BRAKE ASSIST)
47381BRACKET, BRAKE TUBE CLAMP NO.1
7701
9009905278
9011908868
9017906178
9046808035
9163160825
9167180614
31 parts on this diagram · 6 diagrams in section
