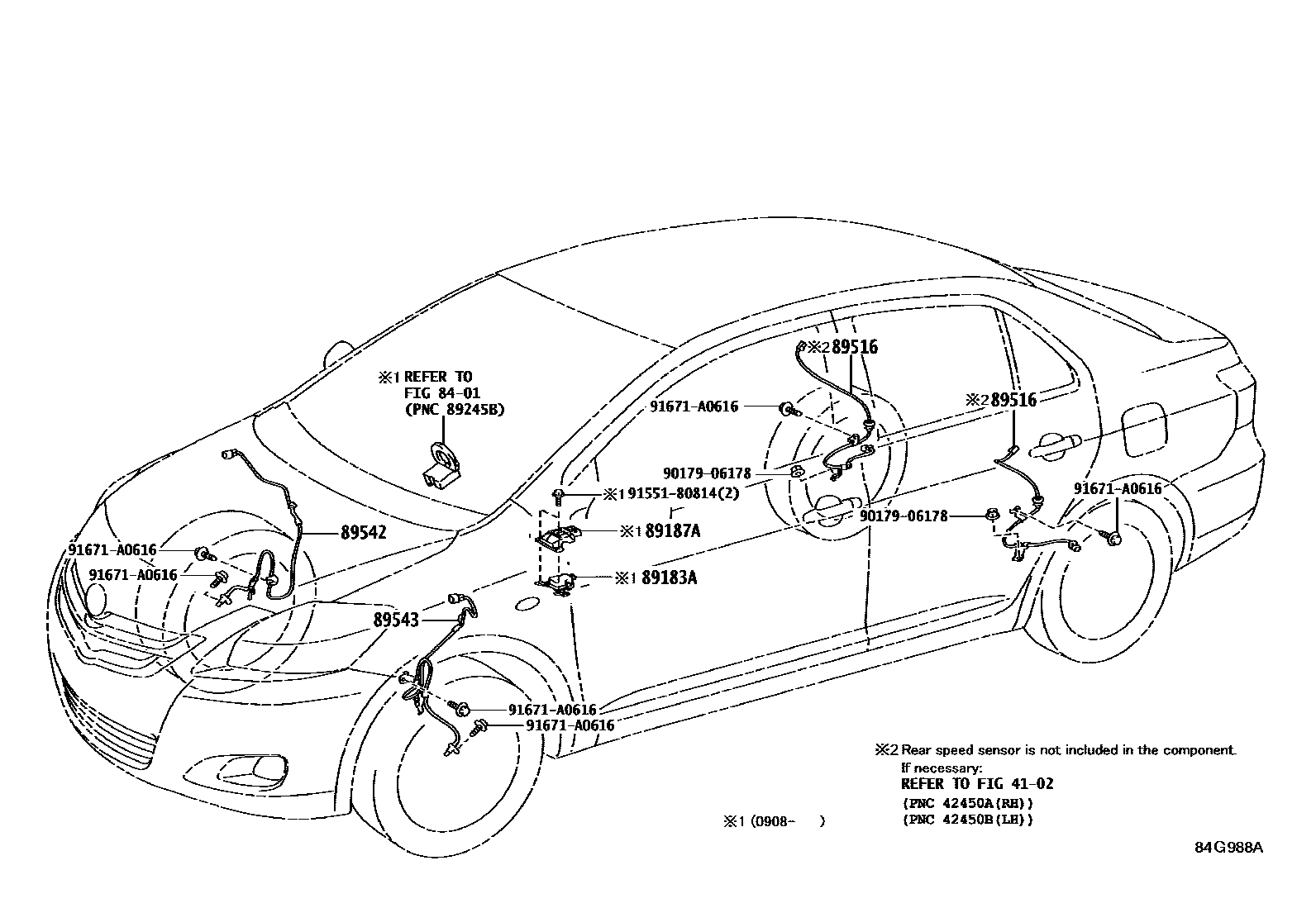

Toyota YARIS — ABS & VSC

4102

8401

89183ASENSOR, YAWRATE

main89180-52050iNCP93..CND¥120,000200908-201211

89187APROTECTOR, YAWRATE SENSOR

main89187-52010iNCP93..USA¥1,220200908-201211

89516WIRE, SKID CONTROL SENSOR

main89516-52090iNCP93..USA¥2,290200808-200904

RH

main89516-52090iNCP93..USA¥2,290200808-200904

POWER PACKAGE,RH

main89516-52100iNCP93..USA¥2,290200808-200904

POWER PACKAGE,LH

main89516-52100iNCP93..USA¥2,290200808-200904

LH

main89516-52110iNCP93..USA¥2,290200905-201108

RH

main89516-52120iNCP93..USA¥2,290200905-201108

LH

main89516-52130iNCP93¥1,430201108

RH

main89516-52140iNCP93¥1,430201108

LH

89542SENSOR, SPEED, FRONT RH

main89542-52030iNCP93..CND¥21,700200808-200812

ABS-WITHOUT

main89542-52030iNCP93..USA¥21,700200808-200812

POWER PACKAGE

main89542-52030iNCP93..USA¥21,700200808-200812

WITH(MANUAL REMOTE CONTROL MIRROR)

main89542-52060iNCP93..USA¥21,700200901-201108

ABS-WITHOUT

sub89542-52120¥21,700

main89542-52060iNCP93..USA¥21,700200901-201108

WITH(MANUAL REMOTE CONTROL MIRROR)

sub89542-52120¥21,700

main89542-52060iNCP93..CND¥21,700200908-201108

sub89542-52120¥21,700

main89542-52090iNCP93¥18,200201108-201607

89543SENSOR, SPEED, FRONT LH

main89543-52030iNCP93..USA¥21,700200808-200812

POWER PACKAGE

main89543-52030iNCP93..USA¥21,700200808-200812

ABS-WITHOUT

main89543-52030iNCP93..USA¥21,700200808-200812

WITH(MANUAL REMOTE CONTROL MIRROR)

main89543-52060iNCP93..USA¥21,700200901-201108

ABS-WITHOUT

sub89543-52120¥21,700

main89543-52060iNCP93..USA¥21,700200901-201108

WITH(MANUAL REMOTE CONTROL MIRROR)

sub89543-52120¥21,700

main89543-52060iNCP93..CND¥21,700200908-201108

sub89543-52120¥21,700

main89543-52090iNCP93¥18,200201108-201607

9017906178

main90179-06178¥100

9155180814

main91551-80814¥80

91671A0616

main91671-A0616¥60

10 parts on this diagram · 1 diagram in section
