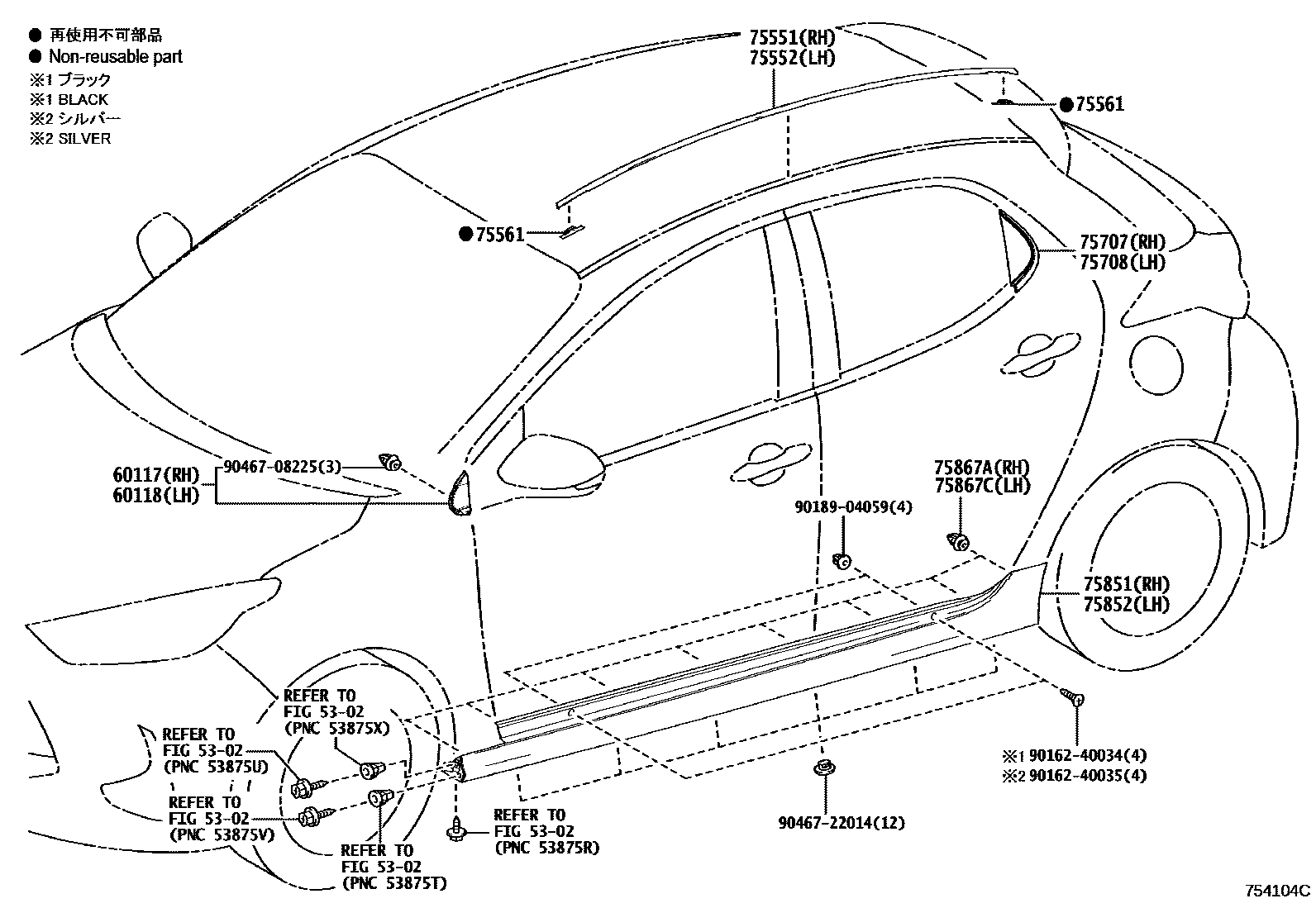

Toyota YARIS — SIDE MOULDING

5302

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-K0060iKSP210,MXPA1#¥710202002-202401

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-K0060iKSP210,MXPA1#¥710202002-202401

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52280iKSP210,MXPA1#¥1,660202002-202401

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-52240iKSP210,MXPA1#¥1,660202002-202401

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52050iMXPH10,15¥90202002-202401

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-52010iKSP210,MXPA1#,MXPH14,17..G,U,X¥1,120202008-202401

main75707-52020iMXPA1#,MXPH14,17..Z¥1,800202008-202401

main75707-K0010iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X¥1,480202002-202008

sub75707-52010¥1,120

main75707-K0020iMXPA1#,MXPH1#..HBDZ,Z¥2,380202002-202008

sub75707-52020¥1,800

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-52010iMXPH10,15..HBDG,HBDX¥1,120202008-202401

main75708-52020iMXPH10,15..HBDZ¥1,800202008-202401

main75708-K0010iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X¥1,480202002-202008

sub75708-52010¥1,120

main75708-K0020iMXPA1#,MXPH1#..HBDZ,Z¥2,380202002-202008

sub75708-52020¥1,800

75851MOULDING, ROCKER PANEL, RH

main75851-K0060-A0iKSP210,MXPA1#,MXPH10,15202002

SUPER WHITE 2,040

main75851-K0060-A1iKSP210,MXPA1#,MXPH1#202002-202208

WHITE PEARL CS.,070

main75851-K0060-A2iMXPA1#,MXPH14,17..Z202208

PLATINUM WHITE PEARL MC.,089

main75851-K0060-A2iMXPA1#,MXPH14,17..Z202401

PLATINUM WHITE PEARL MC.,089 ,2VP

main75851-K0060-B0iKSP210,MXPA1#,MXPH1#202002-202208

SILVER ME.,1F7

main75851-K0060-B1iKSP210,MXPA1#,MXPH14,17202208

SILVER ME.,1L0

main75851-K0060-B2iKSP210,MXPA1#,MXPH14,17202401

MASSIVE GRAY,1L6 ,M22

main75851-K0060-C0iKSP210,MXPA1#,MXPH10,15202002

BLACK,202 ,2KC

main75851-K0060-C0iKSP210,MXPA1#,MXPH14,17202401

BLACK,202

main75851-K0060-D0iKSP210,MXPA1#,MXPH1#202002-202105

BORDEAUX M.M,3R9

main75851-K0060-D1iKSP210,MXPA1#,MXPH14,17202401

RED MC.,3T3

main75851-K0060-D1iKSP210,MXPA1#,MXPH10,15202002

RED MC.,2NE ,3T3

main75851-K0060-D2iKSP210,MXPA1#,MXPH10,15202002

ICE PINK ME.,2SS ,3U6

main75851-K0060-D3iKSP210,MXPA1#,MXPH14,17202002

CORAL CS.,2SR ,3U7

main75851-K0060-E0iKSP210,MXPA1#,MXPH14,17202002

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main75851-K0060-G0iKSP210,MXPA1#,MXPH1#202002-202208

THERMO-TECT LIME GREEN,6W7

main75851-K0060-J0iKSP210,MXPA1#,MXPH10,15202002

DK.BLUE M.M.,8W7

main75851-K0060-J1iKSP210,MXPA1#,MXPH10,15202002

CYAN METALLIC,2RV ,8W9

75852MOULDING, ROCKER PANEL, LH

main75852-K0060-A0iKSP210,MXPA1#,MXPH14,17202002

SUPER WHITE 2,040

main75852-K0060-A1iKSP210,MXPA1#,MXPH1#202002-202208

WHITE PEARL CS.,070

main75852-K0060-A2iKSP210,MXPA1#,MXPH14,17..G,U,X202401

PLATINUM WHITE PEARL MC.,089 ,2VP

main75852-K0060-A2iKSP210,MXPA1#,MXPH10,15202208

PLATINUM WHITE PEARL MC.,089

main75852-K0060-B0iKSP210,MXPA1#,MXPH1#202002-202208

SILVER ME.,1F7

main75852-K0060-B1iKSP210,MXPA1#,MXPH14,17202208

SILVER ME.,1L0

main75852-K0060-B2iKSP210,MXPA1#,MXPH14,17202401

MASSIVE GRAY,1L6 ,M22

main75852-K0060-C0iKSP210,MXPA1#,MXPH10,15202002

BLACK,202 ,2KC

main75852-K0060-C0iKSP210,MXPA1#,MXPH14,17202401

BLACK,202

main75852-K0060-D0iKSP210,MXPA1#,MXPH1#202002-202105

BORDEAUX M.M,3R9

main75852-K0060-D1iKSP210,MXPA1#,MXPH10,15202002

RED MC.,2NE ,3T3

main75852-K0060-D1iKSP210,MXPA1#,MXPH14,17202401

RED MC.,3T3

main75852-K0060-D2iKSP210,MXPA1#,MXPH10,15202002

ICE PINK ME.,2SS ,3U6

main75852-K0060-D3iKSP210,MXPA1#,MXPH14,17202002

CORAL CS.,2SR ,3U7

main75852-K0060-E0iKSP210,MXPA1#,MXPH14,17202002

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main75852-K0060-G0iKSP210,MXPA1#,MXPH1#202002-202208

THERMO-TECT LIME GREEN,6W7

main75852-K0060-J0iKSP210,MXPA1#,MXPH10,15202002

DK.BLUE M.M.,8W7

main75852-K0060-J1iKSP210,MXPA1#,MXPH10,15202002

CYAN METALLIC,2RV ,8W9

75867ACLIP, ROCKER PANEL MOULDING

main75867-30130iKSP210,MXPA1#,MXPH1#¥210202009-202401

main75867-52020iKSP210,MXPA1#,MXPH1#¥210202002-202008

75867CCLIP, ROCKER PANEL MOULDING

main75867-30130iKSP210,MXPA1#,MXPH1#¥210202009-202401

main75867-52020iKSP210,MXPA1#,MXPH1#¥210202002-202009

9016240034

main90162-40034¥60

9016240035

main90162-40035¥130

9018904059

main90189-04059¥70

9046708225

main90467-08225¥60

9046722014

main90467-22014¥100

17 parts on this diagram · 1 diagram in section
