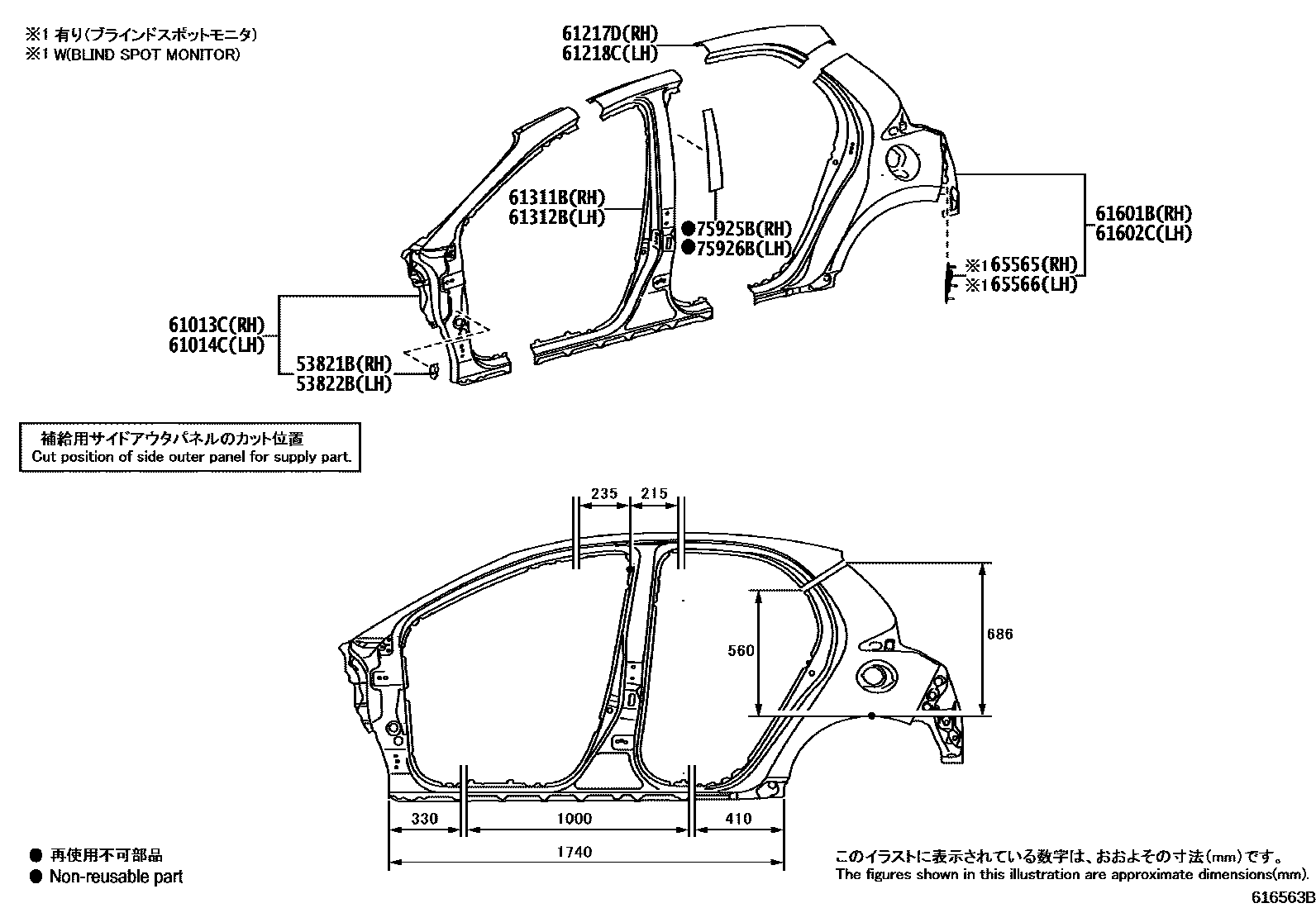

Toyota YARIS — SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030iMXPH10,15¥240202002-202401

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030iKSP210,MXPA1#¥240202002-202401

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52070iKSP210,MXPA1#¥13,000202002-202401

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52070iKSP210,MXPA1#¥13,000202002-202401

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-52020iKSP210,MXPA1#¥3,570202002-202401

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-52020iKSP210,MXPA1#¥3,570202002-202401

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52100iKSP210,MXPA1#,MXPH1#¥16,700202002-202005

sub61311-52101¥12,700

sub90333-25003¥70

main61311-52101iKSP210,MXPA1#¥12,700202005-202401

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52100iKSP210,MXPA1#,MXPH1#¥16,700202002-202005

sub61312-52101¥12,700

sub90333-25003¥70

main61312-52101iKSP210,MXPA1#¥12,700202005-202401

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52840iMXPH14,17..U¥29,800202401

main61601-52850iKSP210,MXPA1#¥29,800202002-202401

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52840iMXPH14,17..U¥30,900202401

main61602-52850iMXPH10,15¥30,900202002-202401

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010iMXPH14,17..U¥900202401

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010iMXPH14,17..U¥900202401

75925BTAPE, BLACK OUT, NO.3 RH

main75925-K0010iKSP210,MXPA1#¥890202002-202401

75926BTAPE, BLACK OUT, NO.3 LH

main75926-K0010iKSP210,MXPA1#¥890202002-202401

14 parts on this diagram · 3 diagrams in section
