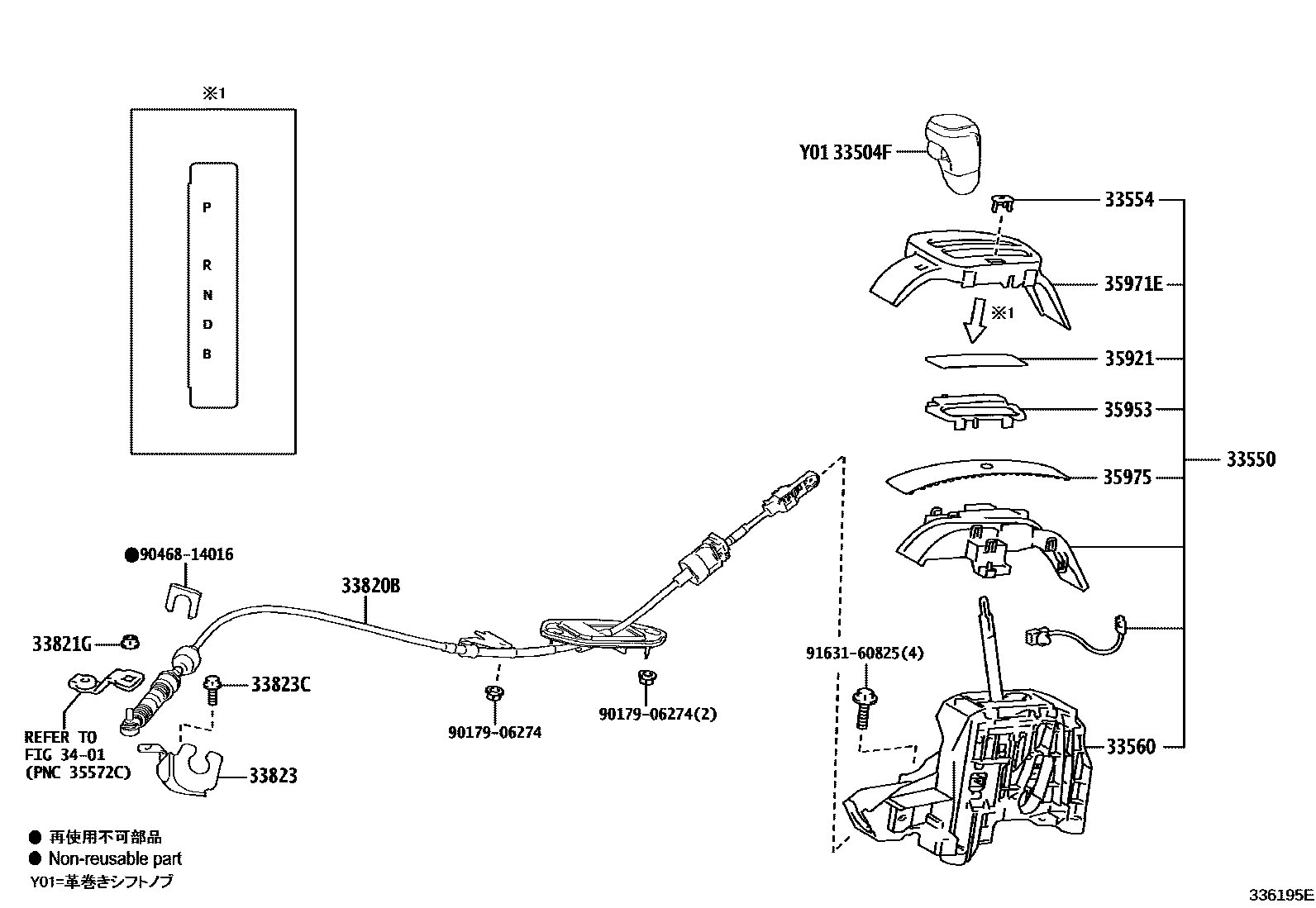

Toyota YARIS — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12680-C1iMXPA10..6F..X202002-202401

BLACK,TRIM2#,4#

main33504-12680-C1iMXPA10..6F..X202002-202401

BLACK,TRIM1#,2#,4#

main33504-12680-C1iMXPA10..6F..X202401

BLACK,TRIM2#

main33504-52570-C0iMXPA10..6F..Z202002-202401

BLACK,TRIM1#,2#

main33504-52570-C0iMXPA10..6F..Z202401

BLACK,TRIM2#

main33504-K0030-C0iMXPH10,15..HBDX202002-202401

BLACK,TRIM2#,4#

main33504-K0030-C0iMXPA1#..CVT..G202002-202401

BLACK,TRIM1#,2#,4#

main33504-K0030-C0iKSP210,MXPA1#,MXPH14,17..CVT..(U,X)202401

BLACK,TRIM2#

main33504-K0040-C0iMXPH10,15..HBDZ202002-202401

BLACK,TRIM1#,2#

main33504-K0040-C0iMXPA1#,MXPH14,17..CVT..Z202401

BLACK,TRIM2#

main33504-K0040-C0iMXPA1#,MXPH14,17..CVT..Z202401

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-52K20iKSP210..X¥28,200202210-202502

main33550-52K30iMXPH17;KSP210,MXPH14..G,U,Z¥28,200202401

main33550-52K30iMXPH15;MXPH10..HBDG,HBDZ¥28,200202303-202401

main33550-52K40iMXPA10..CVT..X¥34,000202210-202502

main33550-52K50iMXPA10..CVT..X¥34,000202210-202401

main33550-52K50iMXPA15;MXPA10..CVT..(G,Z)¥34,000202401

main33550-K0070iMXPA10..CVT..X¥31,100202002-202209

sub33550-52K20¥28,200

main33550-K0080iMXPH10..HBDX¥31,100202002-202302

sub33550-52K30¥28,200

main33550-K0080iKSP210,MXPA10..CVT..X¥31,100202002-202208

sub33550-52K30¥28,200

main33550-K0090iMXPA15;MXPA10..CVT..(G,Z)¥37,400202208-202209

sub33550-52K50¥34,000

main33550-K0100iMXPA10..CVT..X202208-202209

sub33550-52K40¥34,000

33554CAP, SHIFT LEVER

main33554-K0030iKSP210,MXPA1#..CVT¥70202002-202401

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52770iKSP210,MXPH14..X¥18,400202210-202502

main33560-52780iMXPH17;KSP210,MXPH14..G,U,Z¥18,400202401

main33560-52780iKSP210..X¥18,400202303-202401

main33560-52790iMXPA10..CVT..X¥18,400202210-202502

main33560-52800iMXPA15;MXPA10..CVT..(G,Z)¥18,400202210-202401

main33560-52800iMXPA15;MXPA10..CVT..(G,Z)¥18,400202401

main33560-K0030iKSP210,MXPH10..HBDX,X¥20,200202002-202209

sub33560-52770¥18,400

main33560-K0040iKSP210,MXPA10..CVT..X¥20,200202002-202208

sub33560-52780¥18,400

main33560-K0040iMXPH10..HBDX¥20,200202002-202302

sub33560-52780¥18,400

main33560-K0050iMXPA15;MXPA10..CVT..(G,Z)¥20,200202208-202209

sub33560-52800¥18,400

main33560-K0060iMXPA10..CVT..X202208-202209

sub33560-52790¥18,400

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-K0050iKSP210¥9,400202002-202401

main33820-K0060iMXPA10..6F¥17,000202002-202401

main33820-K0070iMXPA10..CVT¥9,400202002-202401

main33820-K0080iMXPH14,17¥10,700202002

main33820-K0090iMXPA15¥9,400202003-202401

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iKSP210¥80202002-202401

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-K0030iKSP210¥570202002-202401

main33823-K0040iMXPA1#..CVT¥430202002-202401

main33823-K0050iMXPH10,15¥940202002

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iMXPA10..6F¥100202002-202401

main91671-80820iMXPH10,15¥80202002-202401

3401

35921PLATE, CONTROL POSITION INDICATOR

main35921-K0050iMXPA1#..CVT¥1,020202002-202401

main35921-K0060iMXPA1#..CVT¥1,020202208-202401

35953GUIDE, POSITION INDICATOR LIGHT

main35953-K0010iMXPH10,15¥790202002-202401

main35953-K0020iMXPA1#..CVT¥930202208-202401

35971EHOUSING, POSITION INDICATOR

main35971-K0030iKSP210,MXPH14,17¥1,360202002-202401

main35971-K0040iMXPA1#..CVT¥1,460202208-202401

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-K0030iMXPA1#..CVT¥440202002-202401

main35975-K0040iMXPA1#..CVT¥550202208-202401

9017906274

main90179-06274¥70

9046814016

main90468-14016¥160

9163160825

main91631-60825¥80

16 parts on this diagram · 4 diagrams in section
