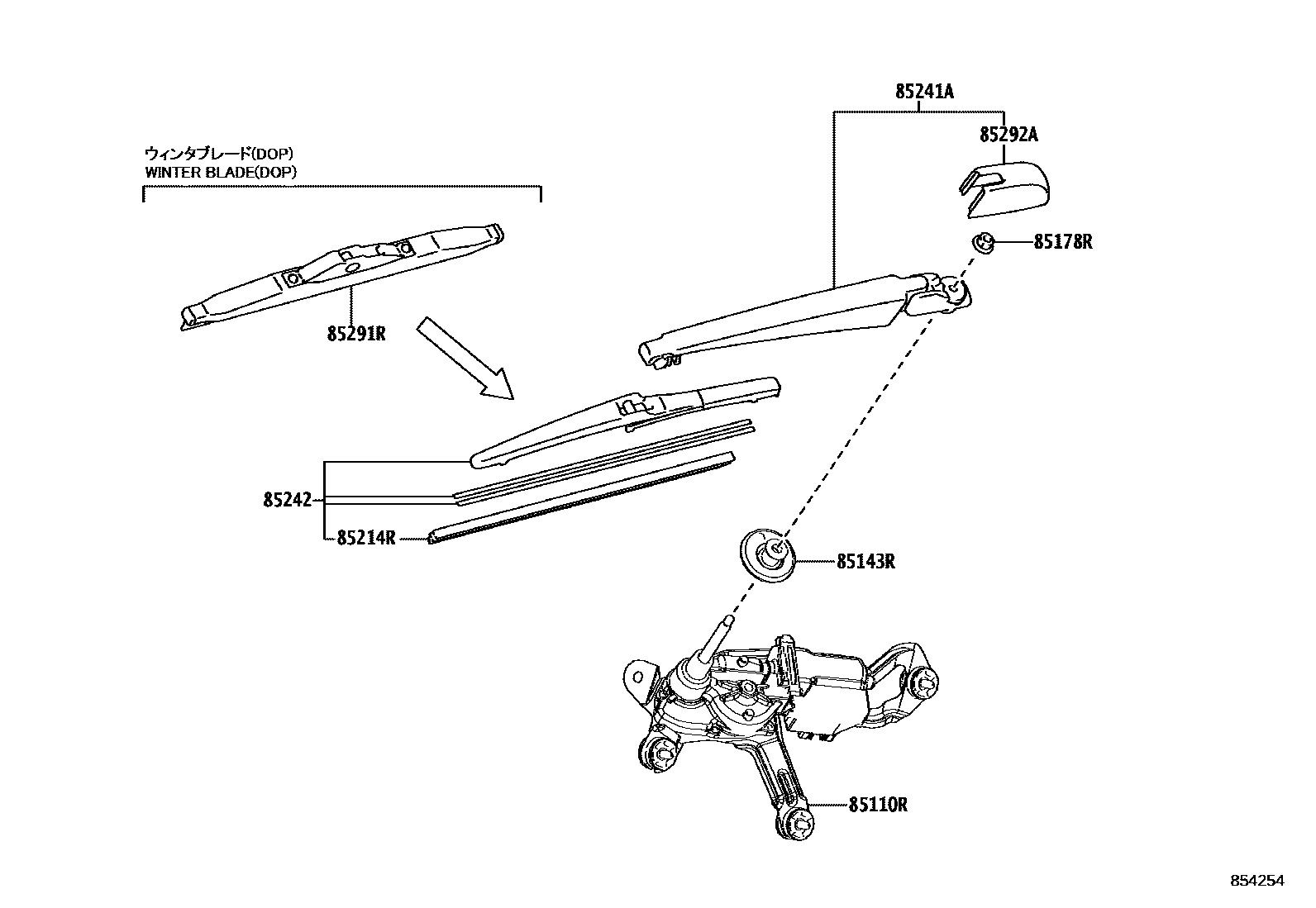

Toyota YARIS — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-K0040iKSP210,MXPA1#¥15,600202002-202401

85143RGROMMET, REAR WIPER MOTOR

main85143-42050iKSP210,MXPA1#¥0202002-202401

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKSP210,MXPA1#¥70202002-202401

85214RRUBBER, REAR WIPER

main85214-42060iKSP210,MXPA1#¥550202002-202401

85241AARM, REAR WIPER

main85241-52220iKSP210,MXPA1#¥1,340202002-202401

85242BLADE, RR WIPER

main85242-K0030iKSP210,MXPA1#¥1,100202002-202401

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iKSP210,MXPA1#¥480202002-202401

8 parts on this diagram · 1 diagram in section
