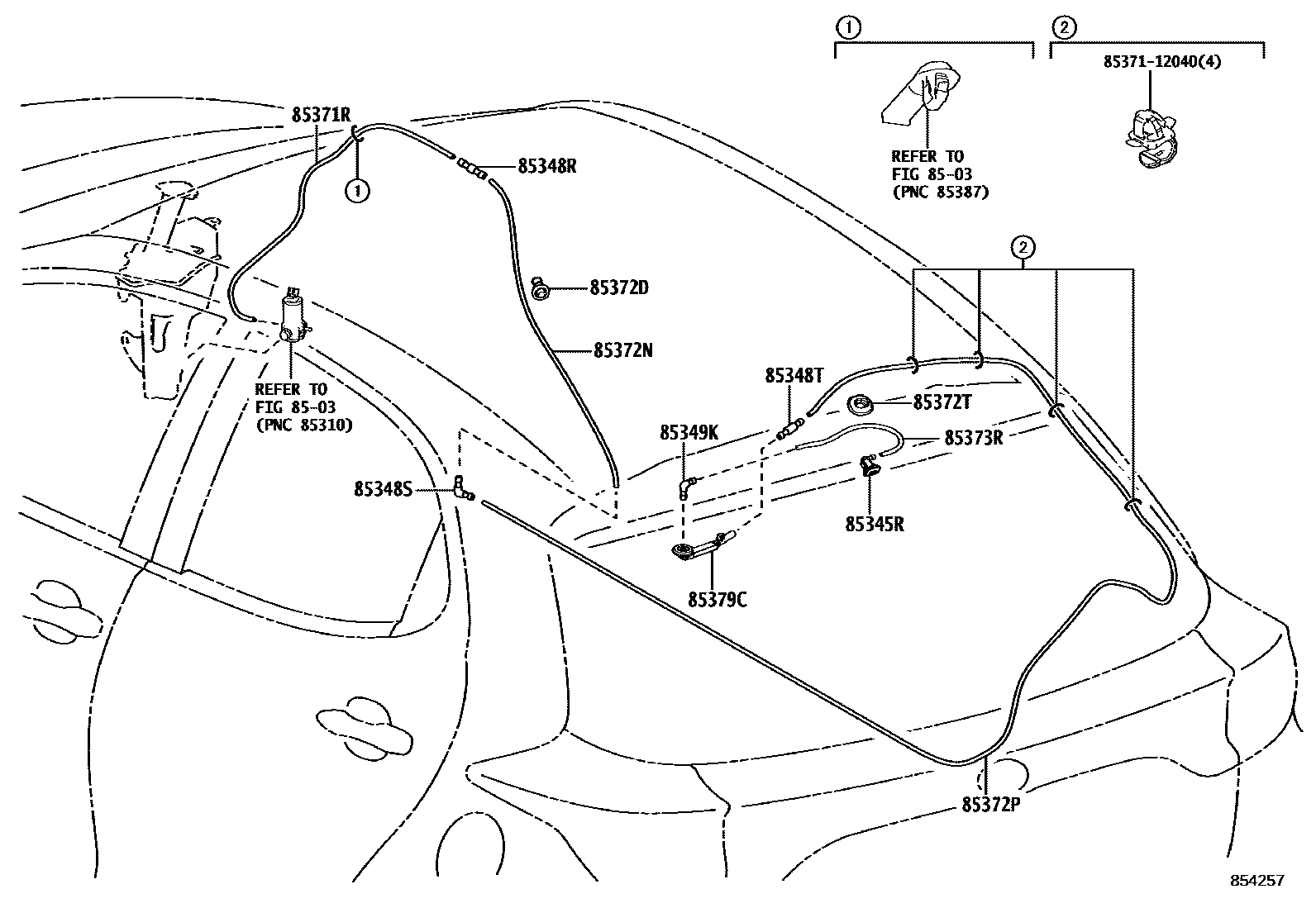

Toyota YARIS — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-K0010iKSP210,MXPA1#202002-202401

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iKSP210,MXPA1#202002-202401

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iKSP210,MXPA1#202002-202401

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKSP210,MXPA1#202002-202401

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iKSP210,MXPA1#202002-202401

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62226iKSP210,MXPA1#202002-202401

main90099-62226iKSP210,MXPA1#202002-202401

85372DGROMMET, REAR WASHER HOSE

main85379-12850iKSP210,MXPA1#¥0202002-202401

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iKSP210,MXPA1#202002-202401

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59377iKSP210,MXPA1#202002-202401

85372TGROMMET, WASHER

main85372-20020iKSP210,MXPA1#¥390202002-202406

main85373-52030iKSP210,MXPA1#,MXPH14,17202407

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-62206iKSP210,MXPA1#202002-202401

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iKSP210,MXPA1#202002-202401

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040¥100

14 parts on this diagram · 1 diagram in section
