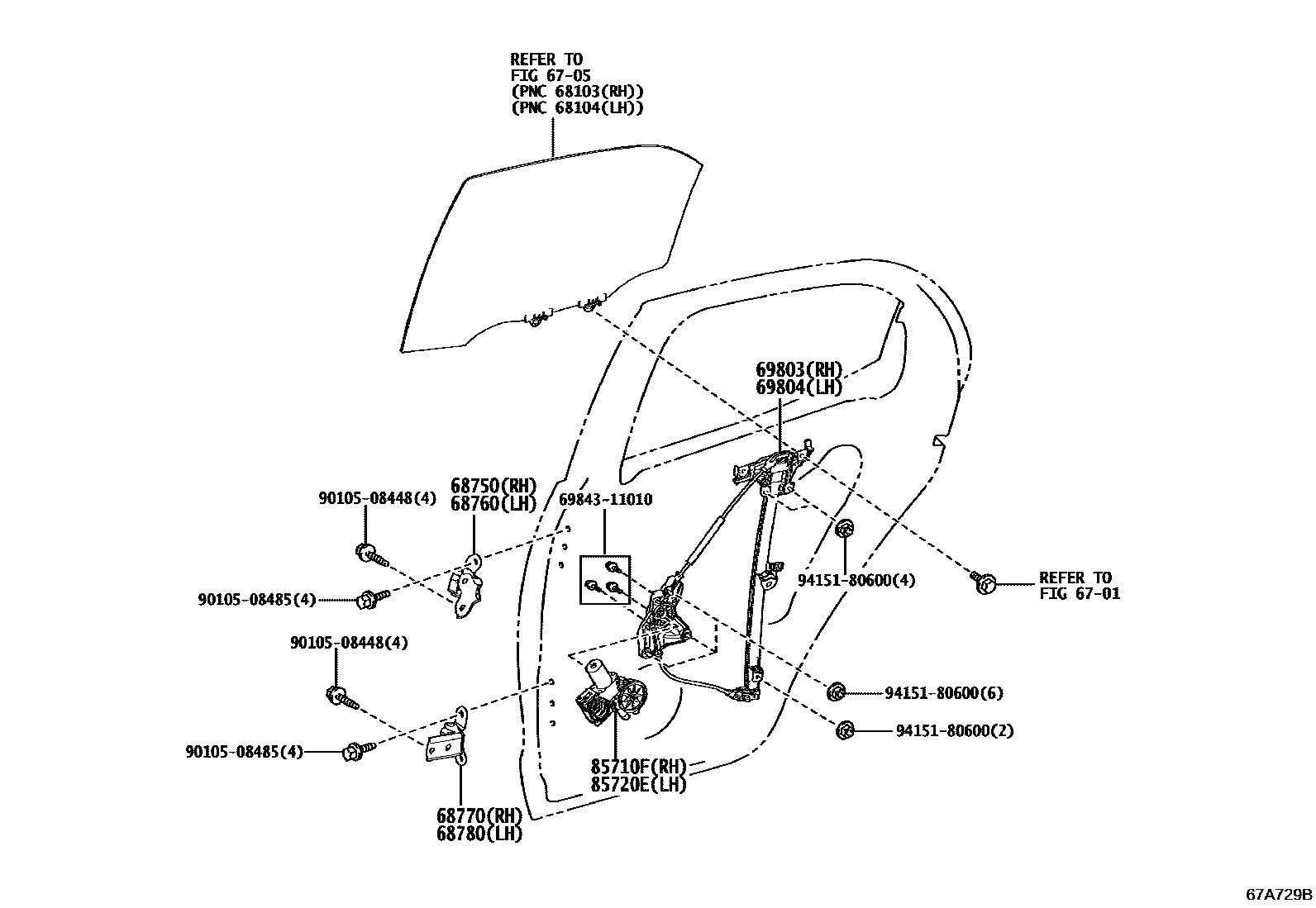

Toyota YARIS — REAR DOOR WINDOW REGULATOR & HINGE

6701

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iKSP210,MXPA1#¥1,850202002-202401

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iKSP210,MXPA1#¥1,850202002-202401

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iKSP210,MXPA1#¥1,850202002-202401

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iKSP210,MXPA1#¥1,850202002-202401

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-K0050iKSP210,MXPA1#¥4,560202002-202401

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-K0040iKSP210,MXPA1#¥4,560202002-202401

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52420iKSP210,MXPA1#,MXPH14,17¥12,600202401

main85710-K0080iMXPH10,15¥13,900202002-202401

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52390iKSP210,MXPA1#,MXPH14,17¥12,600202401

main85720-K0080iKSP210,MXPA1#¥13,900202002-202401

6984311010

main69843-11010¥780

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
