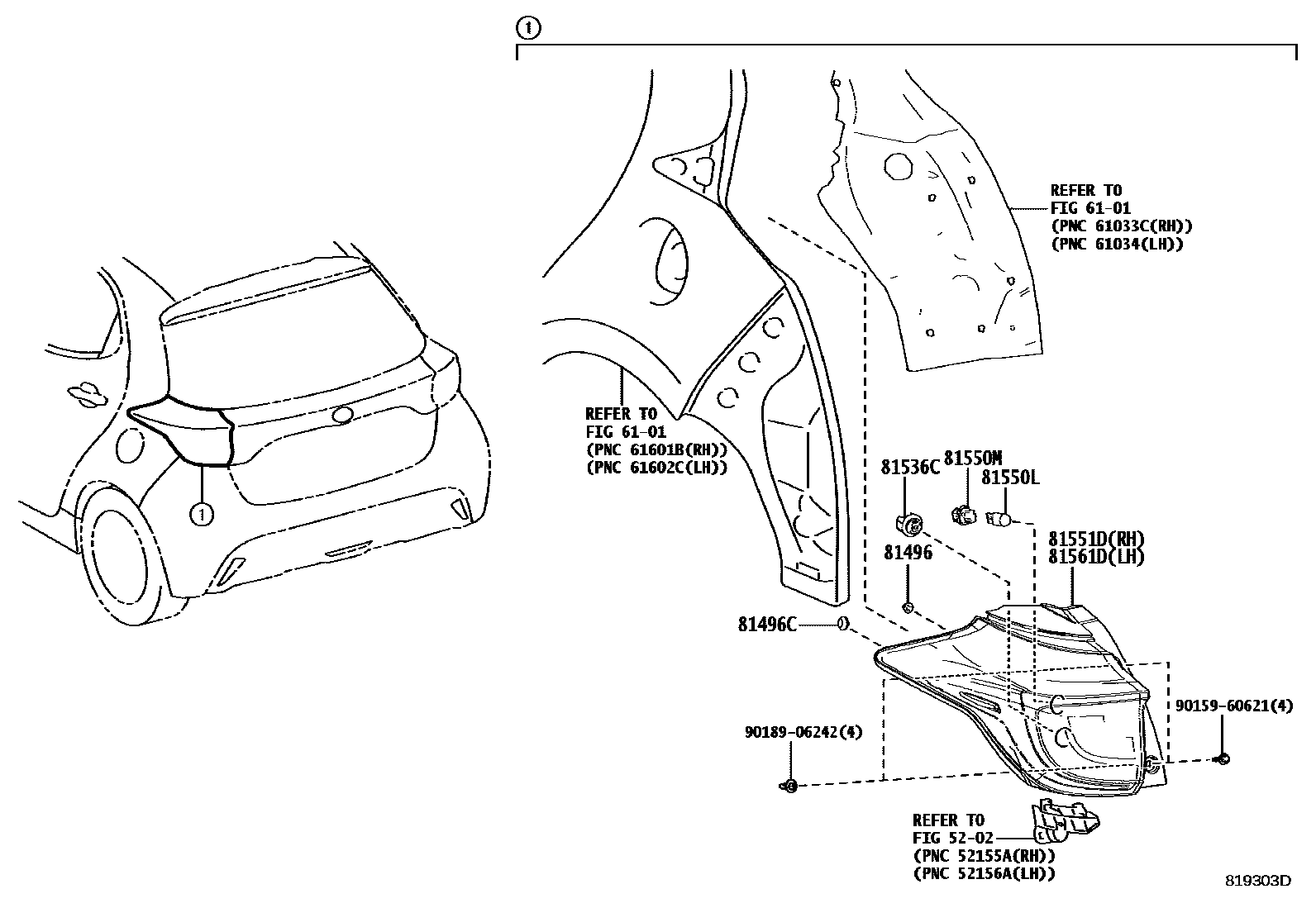

Toyota YARIS — REAR COMBINATION LAMP

0001 1��������� �������������� 0002 1LED���� ��������������

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iKSP210,MXPA1#,MXPH14,17¥70202002-202401

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iKSP210,MXPA1#¥100202002-202401

81536CLED, TAIL & STOP LAMP

main81536-15120iKSP210,MXPA1#..G,X¥2,850202002-202407

main81965-70010iKSP210,MXPA1#,MXPH14,17..G,U,X¥3,210202407

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iMXPH10,15..HBDG,HBDX¥300202002-202401

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028iKSP210,MXPA1#..G,X¥610202002-202401

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-K0010iKSP210,MXPA1#..G,X¥14,600202002-202401

main81551-K0020iMXPH10,15..HBDG,HBDX¥14,400202002-202401

main81551-K0020iMXPA1#,MXPH14,17..Z¥14,400202401

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-K0010iKSP210,MXPA1#,MXPH14,17..G,U,X¥14,600202002-202401

main81561-K0020iMXPH10,15..HBDZ¥14,400202002-202401

main81561-K0020iMXPA1#,MXPH14,17..Z¥14,400202401

9015960621

main90159-60621¥60

9018906242

main90189-06242¥70

11 parts on this diagram · 2 diagrams in section
