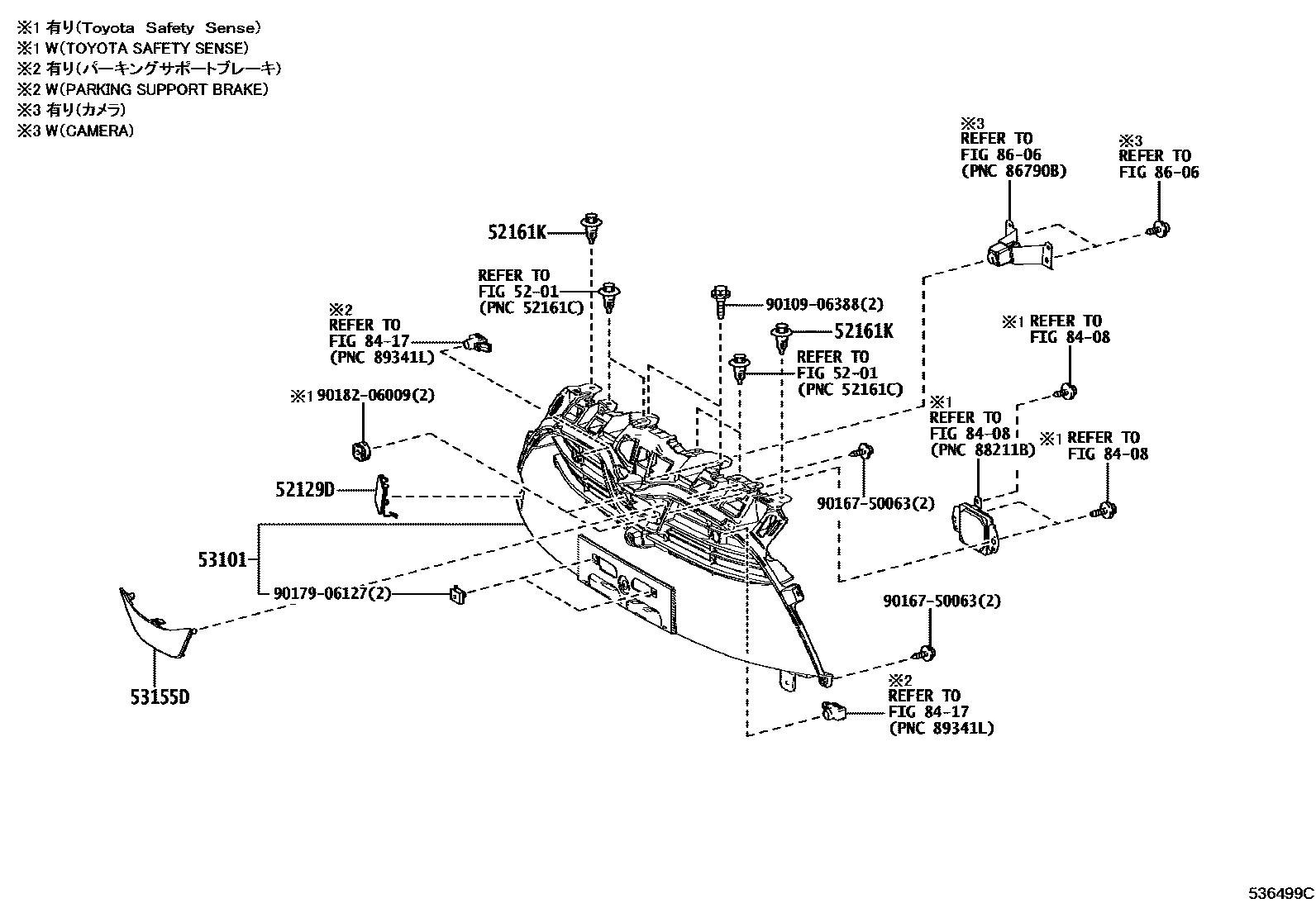

Toyota YARIS — RADIATOR GRILLE

0001 1 0003 1

5201

52129DCOVER, FRONT BUMPER, LOWER

main52129-52370iKSP210,MXPA1#,MXPH14,17..G,U,X¥680202401

main52129-52380iMXPA1#,MXPH14,17..Z¥1,750202401

main52129-K0070iKSP210,MXPA1#..G,X¥500202002-202401

main52129-K0080iMXPH10,15..HBDZ¥750202002-202401

52161KPIECE, FRONT BUMPER

main52161-16010iKSP210,MXPA1#,MXPH14,17¥120202002-202401

53101GRILLE SUB-ASSY, RADIATOR

main53101-52770iKSP210,MXPA1#,MXPH14,17..G,U,X¥19,000202401

main53101-52E40iMXPA1#,MXPH14,17..Z¥33,500202401

main53101-K0090iKSP210,MXPA1#..G,X¥16,200202002-202401

main53101-K0120iMXPA1#,MXPH1#..CVT..(HBDZ,Z)¥20,900202002-202401

main53101-K0140iMXPA1#..CVT..Z¥21,700202105-202401

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-52310iKSP210,MXPA1#,MXPH14,17¥880202401

main53155-K0070iKSP210,MXPA1#¥980202002-202401

8408

8417

8606

9010906388

main90109-06388¥70

9016750063

main90167-50063¥60

9017906127

main90179-06127¥90

9018206009

main90182-06009¥100

12 parts on this diagram · 2 diagrams in section
