Toyota YARIS — PARTIAL ENGINE ASSEMBLY

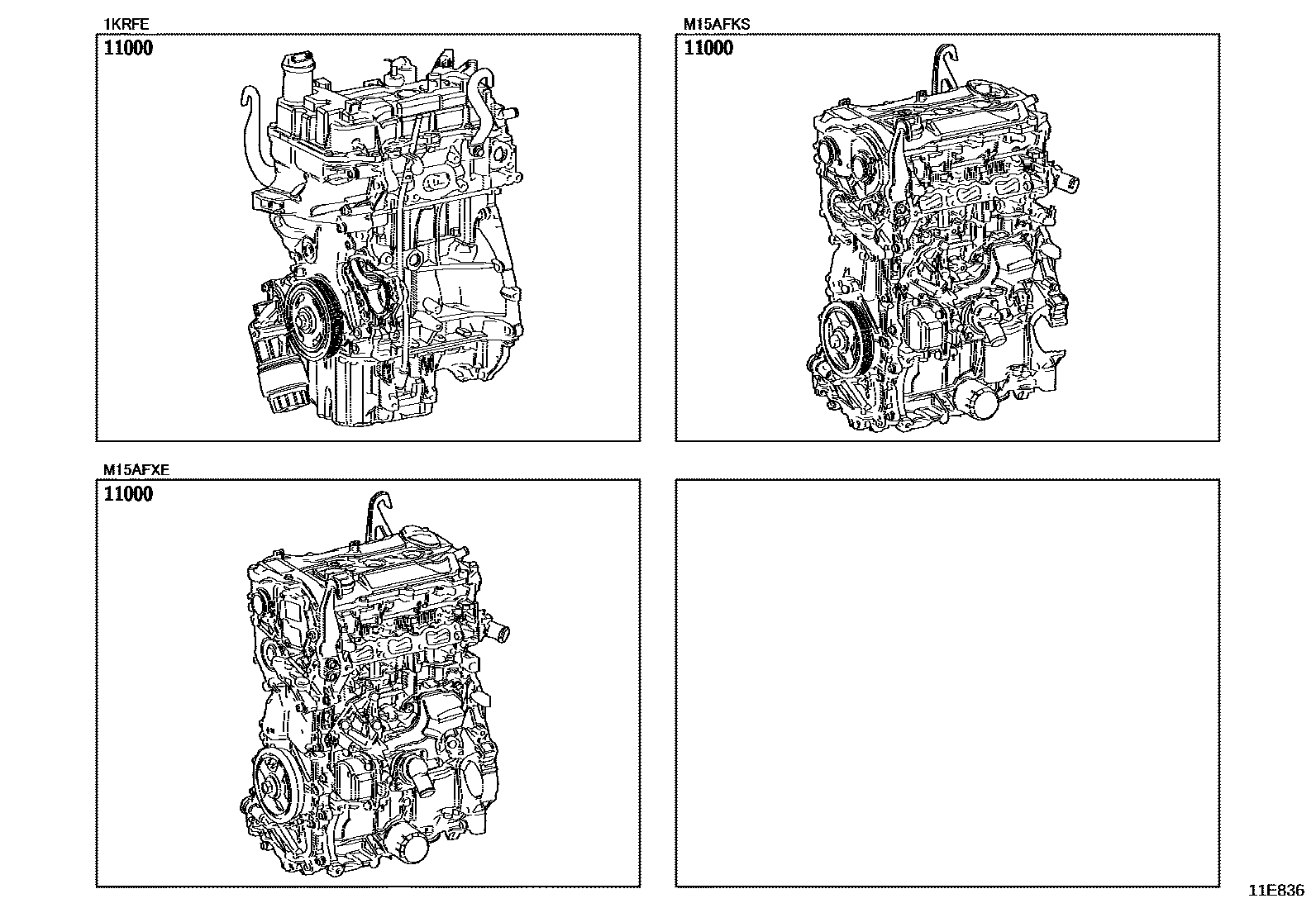

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-15370i¥364,000202002-202401

main19000-15370i¥364,000202401

main19000-15380i¥364,000202002

main19000-15380i¥364,000202401

main19000-40300i¥277,000202002-202401

main19000-40300i¥277,000202401

1 parts on this diagram · 1 diagram in section
