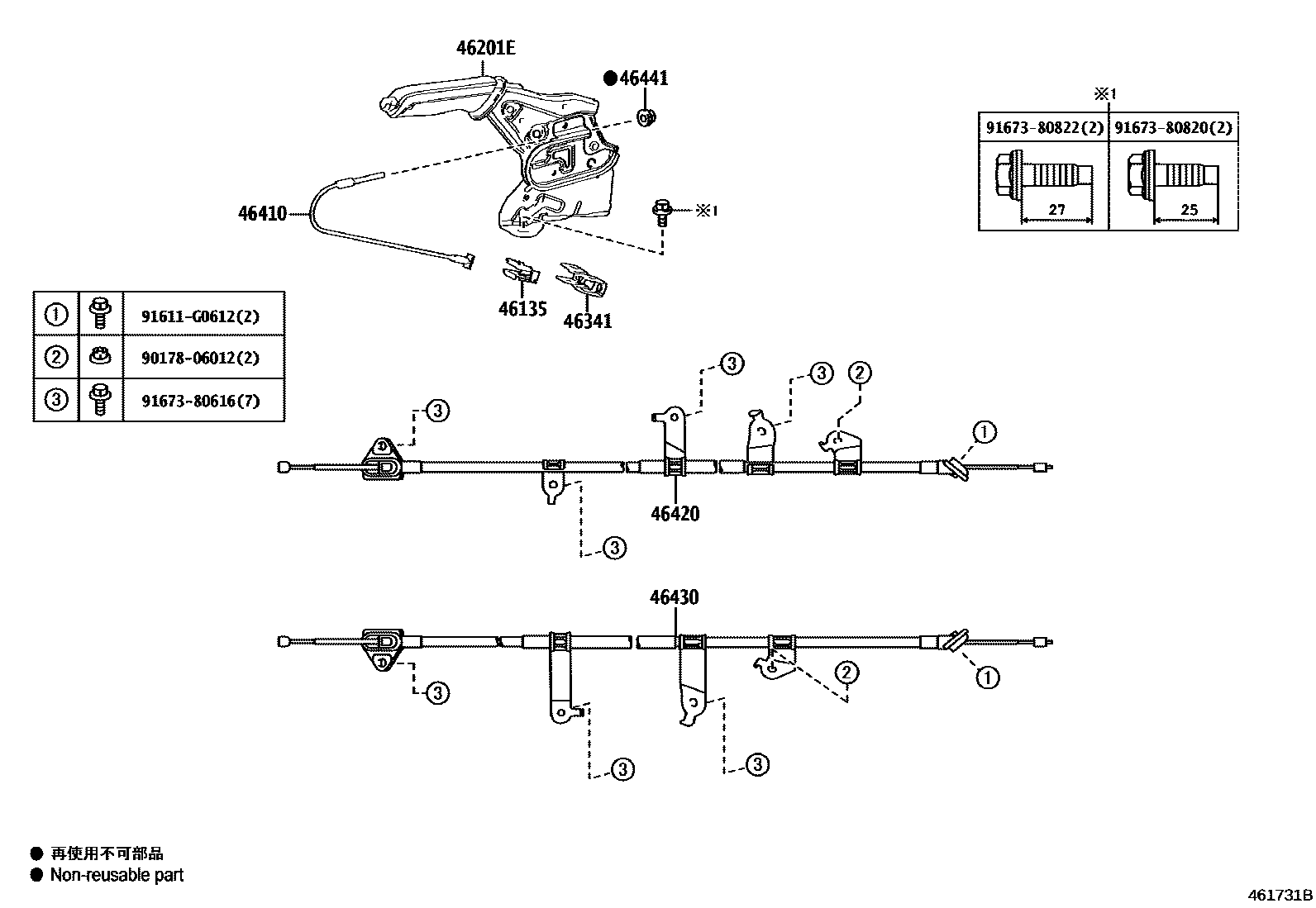

Toyota YARIS — PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-K0010iKSP210,MXPA1#,MXPH14,17¥180202002-202401

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main46201-K0010-C0iMXPA1#..G202002-202401

BLACK,TRIM1#,2#

main46201-K0010-C0iMXPA1#..G202002-202401

BLACK,TRIM1#,2#,4#

main46201-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-K0010iKSP210,MXPA1#¥270202002-202401

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-K0010iKSP210,MXPA1#¥1,340202002-202401

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52480iMXPH14¥3,200202401

main46420-52490iMXPH17¥3,200202401

main46420-K0010iKSP210,MXPA10¥3,200202002-202401

main46420-K0020iMXPH10¥3,520202002

main46420-K0030iMXPA15¥3,100202003-202401

main46420-K0040iMXPH15¥3,520202002

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52480iMXPH14¥3,100202401

main46430-52490iMXPH17¥3,100202401

main46430-K0010iMXPH10¥3,100202002-202401

main46430-K0030iMXPA15¥3,100202003-202401

main46430-K0040iMXPH15¥3,420202002-202108

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iKSP210,MXPA1#,MXPH14,17¥80202002-202401

9017806012

main90178-06012¥80

91611G0612

main91611-G0612¥70

9167380616

main91673-80616¥60

9167380820

main91673-80820¥80

9167380822

main91673-80822¥80

12 parts on this diagram · 6 diagrams in section
