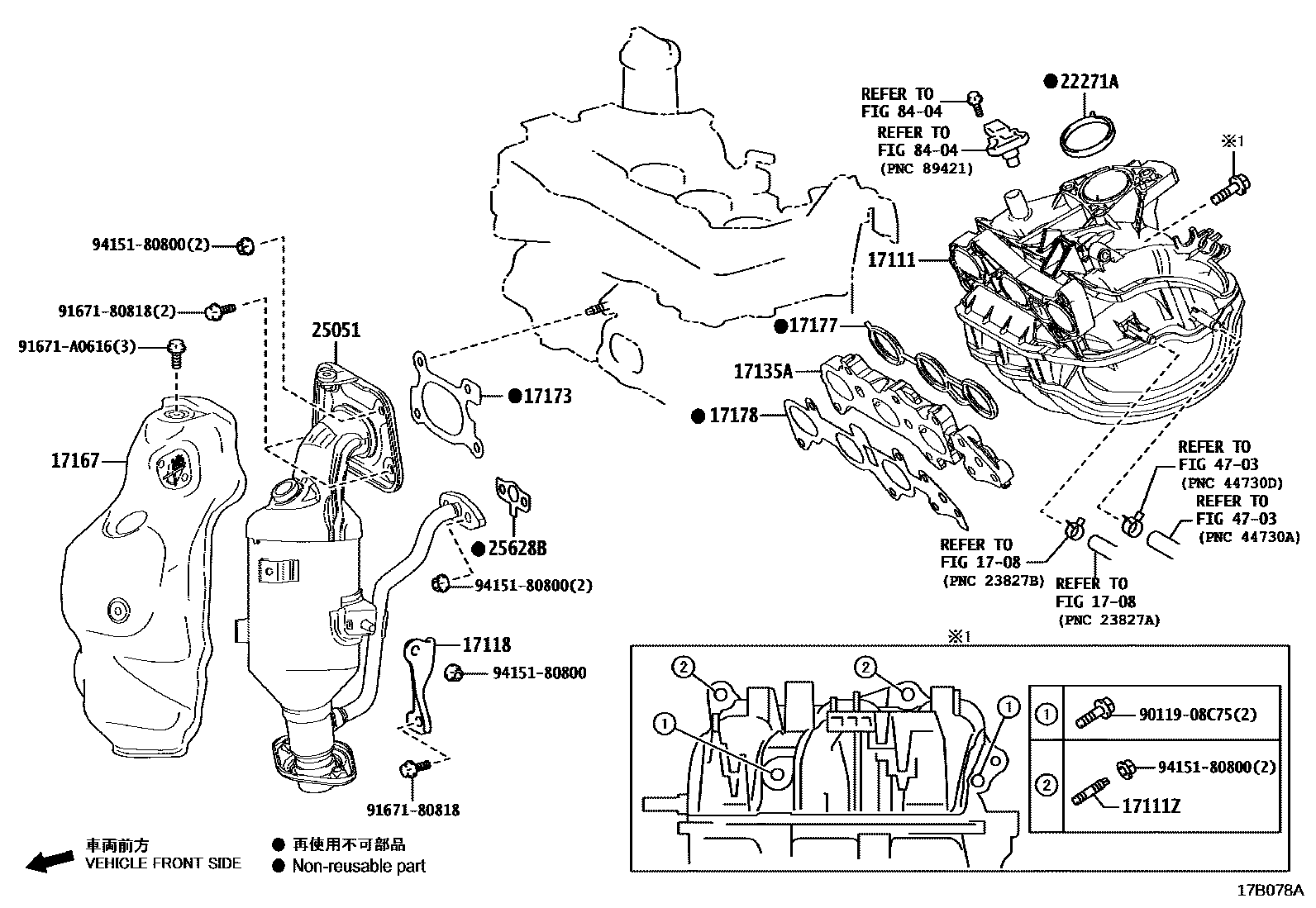

Toyota YARIS — MANIFOLD
1708
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25628BGASKET, EGR INLET
4703
8404
9011908C75
9167180818
91671A0616
9415180800
18 parts on this diagram · 3 diagrams in section
