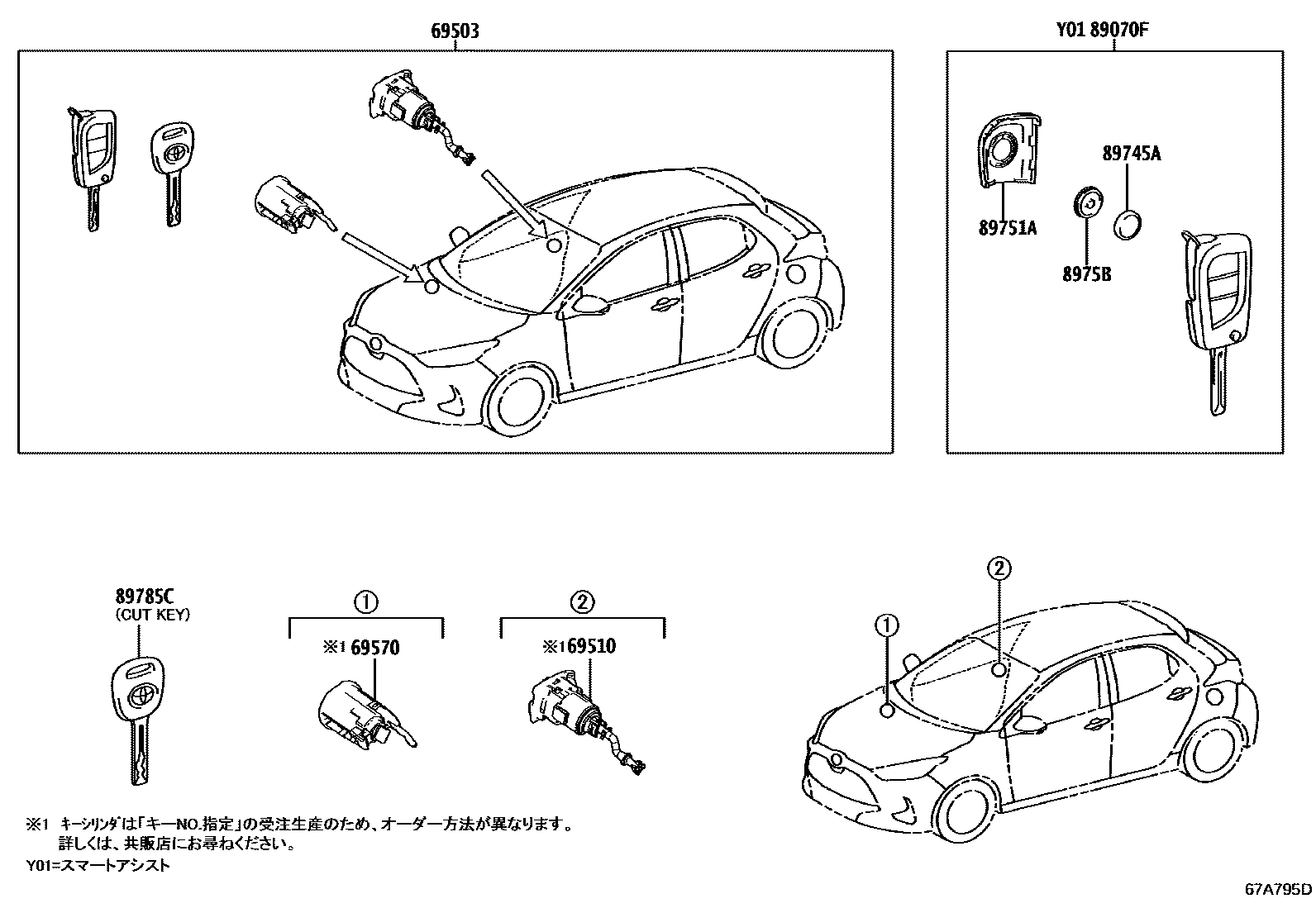

Toyota YARIS — LOCK CYLINDER SET

0001 1 0002 1��(��������)

69503CYLINDER SET, LOCK

main89704-K0020iKSP210,MXPA10,MXPH10..HBDX,X¥25,300202002-202503

main89704-K0020iMXPA10..6F..X¥25,300202401

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-K0030iKSP210,MXPA10..X¥10,400202002-202503

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-33140iKSP210,MXPA10..X¥11,300202002-202503

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-K0080iKSP210,MXPA10,MXPH10..HBDX,X¥18,700202002-202503

main89070-K0080iMXPA10..6F..X¥18,700202401

89745ABATTERY, TRANSMITTER

main89745-50020iKSP210,MXPA10,MXPH10..HBDX,X¥440202002-202503

main89745-50020iMXPA10..6F..X¥440202401

89751ACOVER, TRANSMITTER HOUSING

main89751-33200iKSP210,MXPA10,MXPH10..HBDX,X¥270202002-202503

main89751-33200iMXPA10..6F..X¥270202401

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050iKSP210,MXPA10,MXPH14..CVT..X¥170202002-202503

main8975B-33050iMXPA10..6F..X¥170202401

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-28070iKSP210,MXPA10,MXPH10..HBDX,X¥7,800202002-202503

main89785-28070iMXPA10..6F..X¥7,800202401

8 parts on this diagram · 2 diagrams in section
