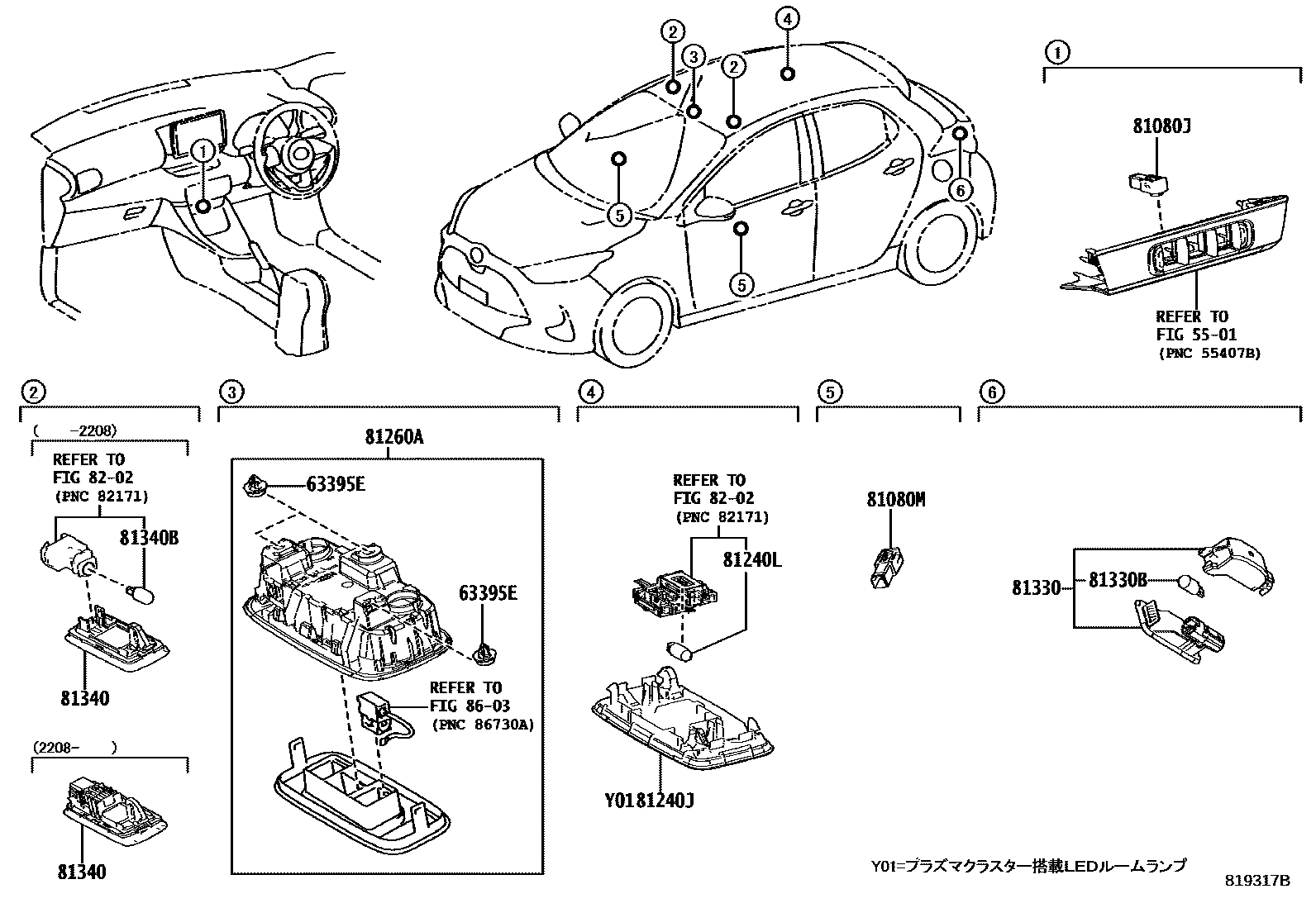

Toyota YARIS — INTERIOR LAMP

0001 1 0002 1

5501

63395ECLIP(FOR MAP LAMP)

main90467-09240iKSP210,MXPA1#¥80202002-202401

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iMXPH10,15..HBDG¥920202002-202401

main81080-33290iMXPH14,17..U¥920202401

main81080-33290iMXPH14,17..U¥920202401

main81080-33290iKSP210,MXPA1#,MXPH14,17..G¥920202401

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iMXPA10..Z¥920202002-202401

main81080-33290iMXPH14,17..U¥920202401

main81080-33290iKSP210,MXPA1#,MXPH14,17..G¥920202401

81240JLAMP ASSY, ROOM

main81240-42020-C0iMXPH10,15..HBDZ202002-202401

BLACK,TRIM2#,4#

main81240-42020-C0iMXPH10,15..HBDZ202002-202401

BLACK,TRIM1#,2#

main81240-42020-C0iMXPH10,15..HBDZ202002-202401

BLACK,TRIM1#,2#,4#

main81240-42020-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

81240LBULB, ROOM LAMP

main90981-14011iKSP210,MXPA1#¥180202002-202401

81260ALAMP ASSY, MAP

main81260-52420-C0iKSP210,MXPA1#,MXPH14,17..U,X,Z202401

BLACK,TRIM2#

main81260-52420-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#,4#

main81260-K0010-C0iMXPA1#..X;KSP210,MXPH1#..G,HBDX,X202002-202105

BLACK,TRIM2#,4#

main81260-K0010-C0iMXPA1#,MXPH1#..HBDZ,Z202002-202105

BLACK,TRIM1#,2#

main81260-K0010-C0iMXPA1#,MXPH1#..HBDZ,Z202002-202105

BLACK,TRIM1#,2#,4#

main81260-K0020-C0iMXPA1#..X;KSP210,MXPH1#..G,HBDX,X202105-202208

BLACK,TRIM1#,2#,4#

main81260-K0020-C0iMXPA1#,MXPH1#..HBDZ,Z202105-202208

BLACK,TRIM1#,2#

main81260-K0020-C0iMXPA1#,MXPH1#..HBDZ,Z202105-202208

BLACK,TRIM2#,4#

main81260-K0021-C0iMXPA1#..Z202208-202401

BLACK,TRIM2#

main81260-K0021-C0iMXPA1#..Z202208-202401

BLACK,TRIM2#,4#

main81260-K0021-C0iMXPA1#..Z202208-202401

BLACK,TRIM1#,2#

main81260-K0021-C0iMXPA1#..Z202208-202401

BLACK,TRIM1#,2#,4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iKSP210,MXPA1#¥1,250202002-202401

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iKSP210,MXPA1#¥110202002-202401

81340LAMP ASSY, VANITY

main81340-30110iMXPA1#,MXPH1#..HBDZ,Z¥1,670202002-202208

main81340-33170iMXPA1#..Z¥990202208-202401

81340BBULB (FOR VANITY LAMP)

main90981-11062iMXPA1#,MXPH1#..HBDZ,Z¥340202002-202208

8202

8603

13 parts on this diagram · 2 diagrams in section
