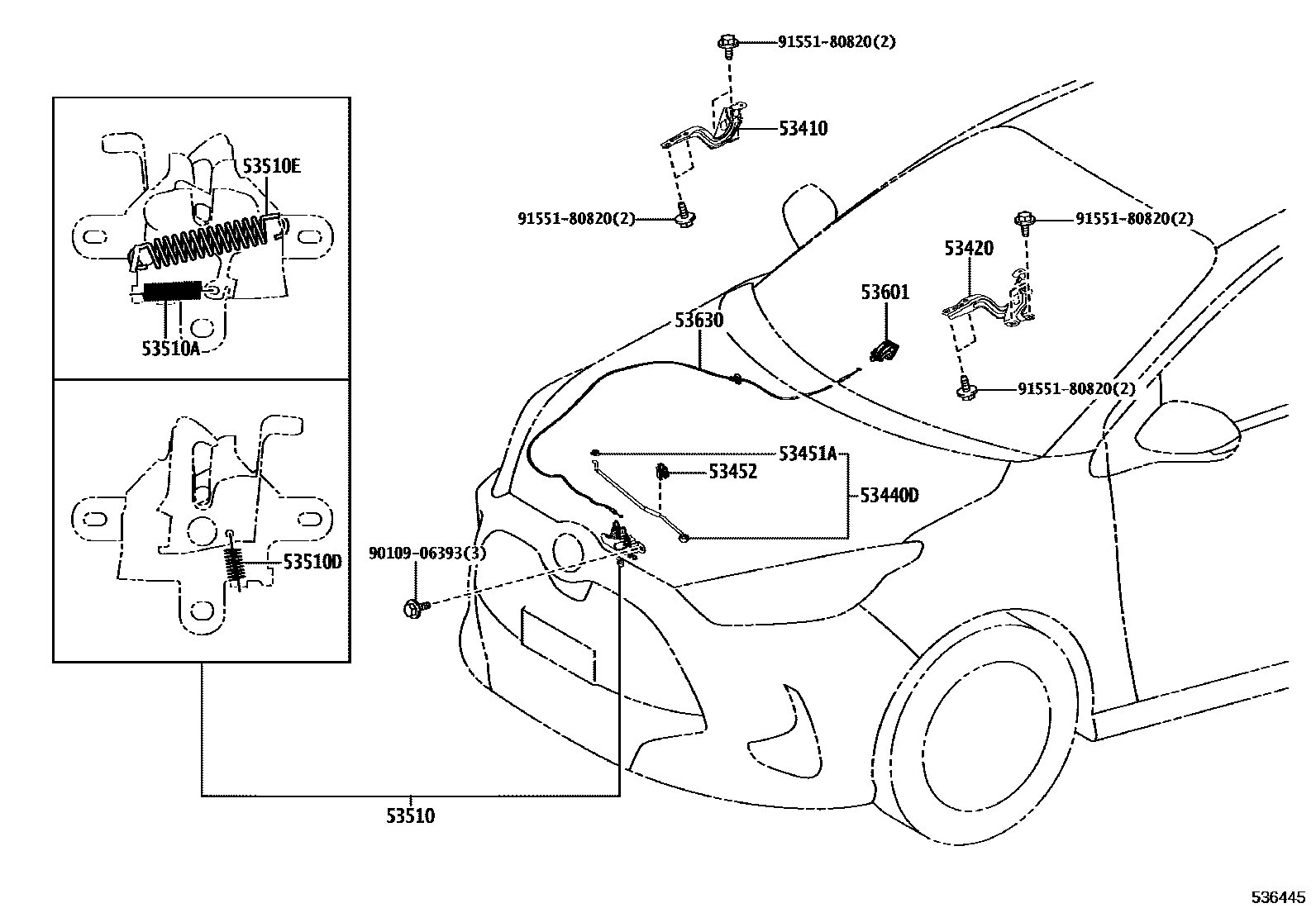

Toyota YARIS — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-K0040iKSP210,MXPA1#,MXPH14,17¥1,700202002-202401

53420HINGE ASSY, HOOD, LH

main53420-K0040iKSP210,MXPA1#¥1,700202002-202401

53440DSUPPORT ASSY, HOOD

main53440-K0010iKSP210,MXPA1#¥1,060202002-202401

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKSP210,MXPA1#¥220202002-202401

53452HOLDER, HOOD STAY

main53452-15020iKSP210,MXPA1#,MXPH14,17¥340202002-202401

53510LOCK ASSY, HOOD

main53510-K0010iMXPH10,15¥2,710202002

main53510-K0060iKSP210,MXPA1#¥2,010202002-202401

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKSP210,MXPA1#,MXPH14,17¥90202002-202401

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iKSP210,MXPA1#¥90202002-202401

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iKSP210,MXPA1#¥120202002-202401

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-B0iMXPA10..6F..(G,Z)202002-202401

LT.GRAY,TRIM10

main53601-30100-B0iMXPA10..6F..(G,Z)202002-202401

LT.GRAY,TRIM1#

main53601-30100-C0iMXPA1#..CVT..(G,Z)202002-202401

BLACK,TRIM11,2#

main53601-30100-C0iKSP210;MXPA1#..X;MXPA10..6F..(G,Z)202002-202401

BLACK,TRIM2#

main53601-30100-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#,4#

main53601-30100-E1iKSP210,MXPA1#..G,X202002-202401

TAUPE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-K0030iKSP210,MXPA1#,MXPH14,17¥990202002-202401

9010906393

main90109-06393¥80

9155180820

main91551-80820¥80

13 parts on this diagram · 1 diagram in section
