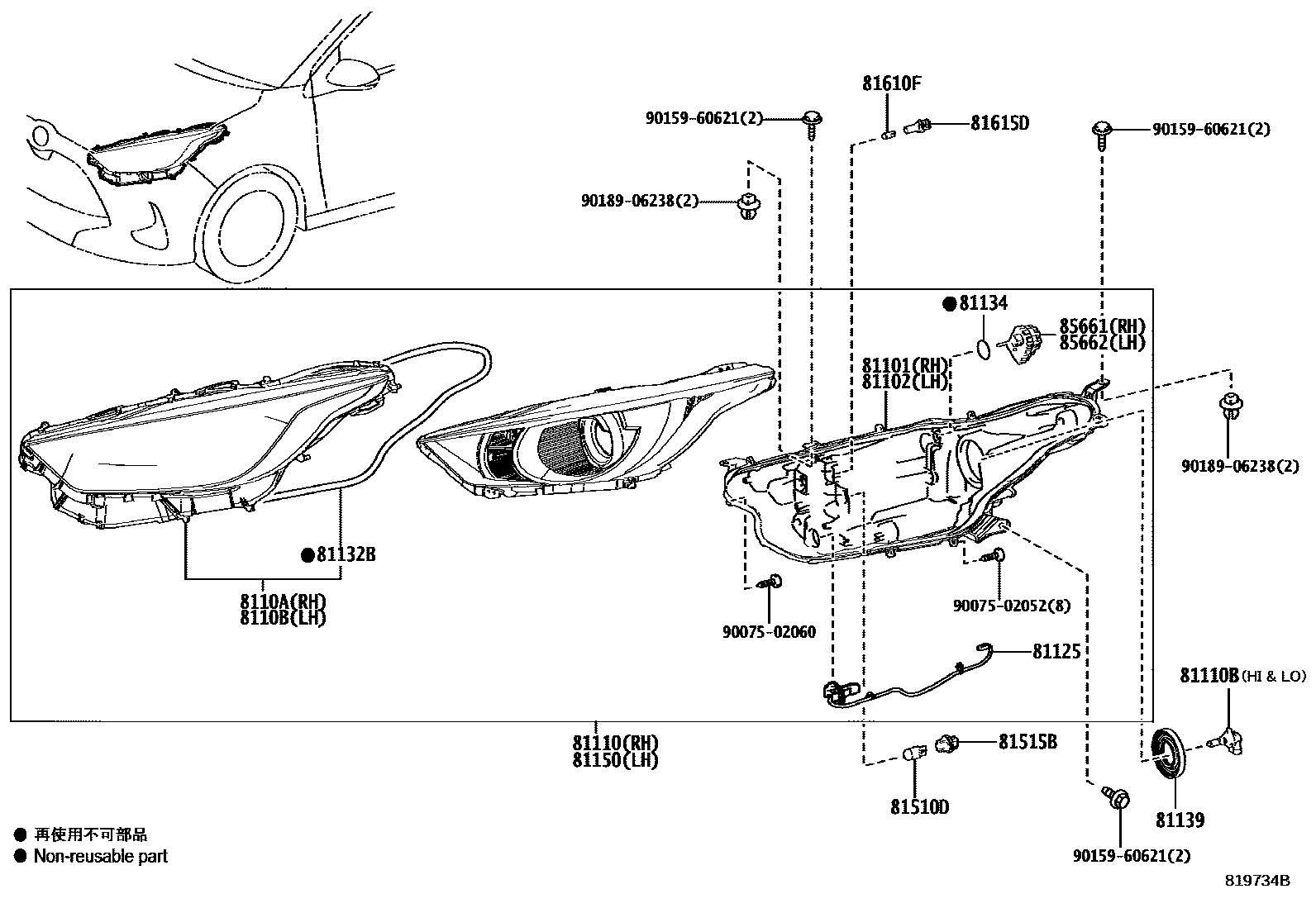

Toyota YARIS — HEADLAMP

0001 1����� �������� 0003 1LED ��������

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-K0010iKSP210,MXPA1#,MXPH14,17..G,U,X¥8,300202002-202401

main8111B-K0030iMXPH10,15..HBDG,HBDX¥8,300202002-202401

main8111B-K0030iMXPA1#,MXPH14,17..Z¥8,300202401

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-K0010iKSP210,MXPA1#,MXPH14,17..G,U,X¥8,300202002-202401

main8115B-K0030iMXPH10,15..HBDZ¥8,300202002-202401

main8115B-K0030iMXPA1#,MXPH14,17..Z¥8,300202401

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-K0010iMXPH10,15..HBDG,HBDX¥10,200202002-202401

main8110A-K0030iKSP210..G;MXPA1#..G,X¥27,200202002-202401

main8110A-K0030iMXPA1#,MXPH14,17..Z¥27,200202401

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-K0010iMXPH10,15..HBDG,HBDX¥10,200202002-202401

main8110B-K0030iMXPH10,15..HBDZ¥27,200202002-202401

main8110B-K0030iMXPA1#,MXPH14,17..Z¥27,200202401

81110HEADLAMP ASSY, RH

main81110-K0030iMXPH10,15..HBDG,HBDX¥76,700202002-202401

sub81110-K0031¥69,700

main81110-K0031iKSP210,MXPA1#,MXPH14,17..G,U¥69,700202401

main81130-K0010iKSP210,MXPA1#..G,X¥30,000202002-202401

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091iKSP210,MXPA1#..G,X¥3,540202002-202401

81125CORD, HEADLAMP

main81125-K0010iKSP210,MXPA1#..G,X¥940202002-202401

main81125-K0030iMXPA1#..Z¥2,230202002-202401

main81125-K0030iMXPA1#,MXPH14,17..Z¥2,230202401

81132BGASKET, HEADLAMP LENS

main81132-50590iKSP210,MXPA1#¥2,230202002-202401

81134GASKET, HEADLAMP

main90075-99120iKSP210,MXPA1#..G,X¥220202002-202401

81139COVER, HEADLAMP SOCKET

main90075-65006iKSP210,MXPA1#..G,X¥460202002-202401

81150HEADLAMP ASSY, LH

main81150-K0030iMXPH10,15..HBDZ¥76,700202002-202401

sub81150-K0031¥69,700

main81150-K0031iMXPA1#,MXPH14,17..Z¥69,700202401

main81170-K0010iKSP210,MXPA1#..G,X¥30,000202002-202401

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iKSP210,MXPA1#..G,X¥300202002-202401

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iKSP210,MXPA1#..G,X¥610202002-202401

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iKSP210,MXPA1#..G,X¥110202002-202401

81615DSOCKET, CLEARANCE LAMP

main90075-60089iKSP210,MXPA1#..G,X¥610202002-202401

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iKSP210,MXPA1#¥3,710202002-202401

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iKSP210,MXPA1#¥3,710202002-202401

9007502052

main90075-02052¥60

9007502060

main90075-02060¥60

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

21 parts on this diagram · 2 diagrams in section
