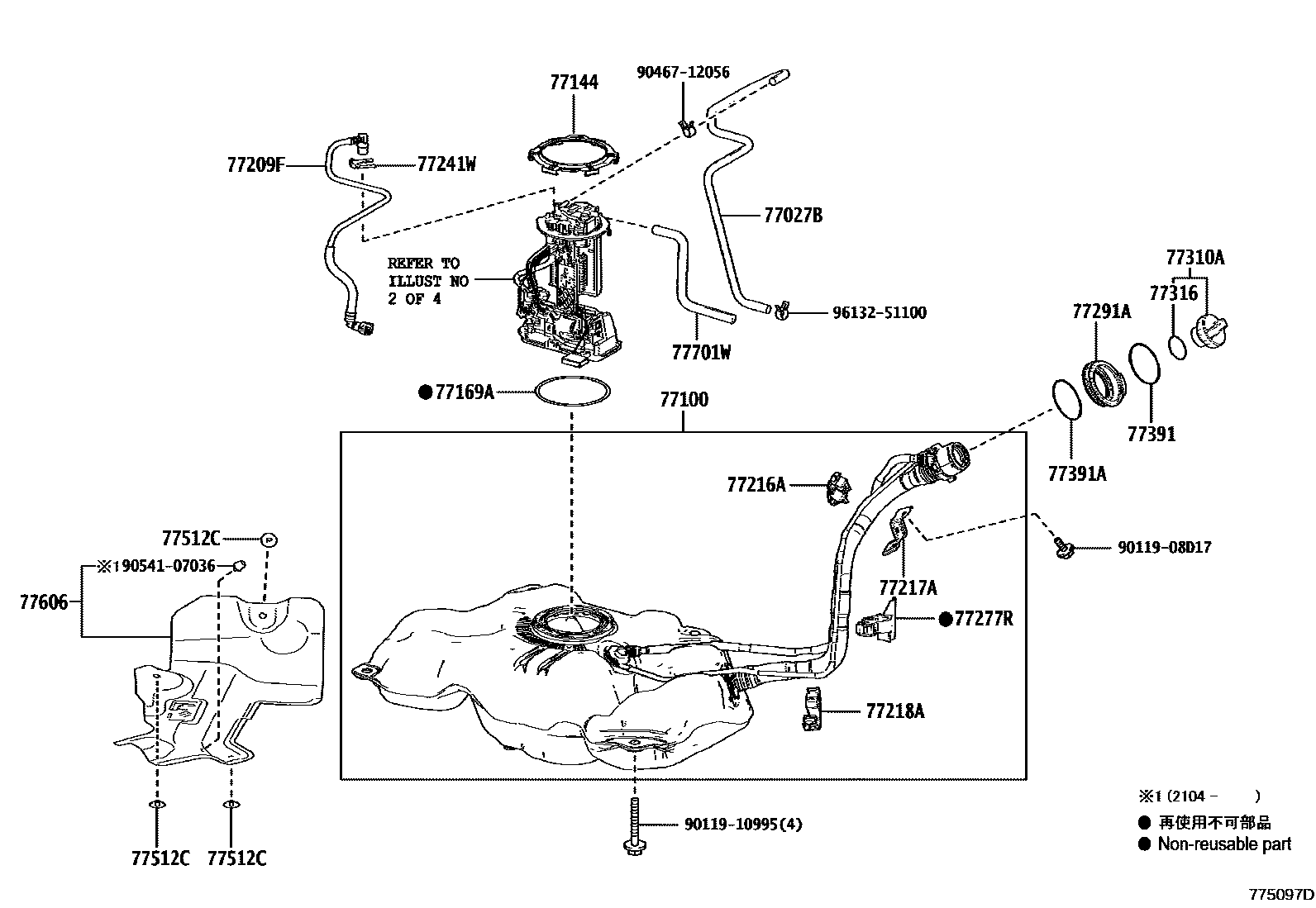

Toyota YARIS — FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1�������� 0007 1���������� 0008 1���������� 0009 1���������� 0010 1���������� 0011 1���������� 0012 1���������� 0013 1���������� 0014 1���������� 0015 1���������� 0016 1���������� 0017 1���������� 0018 1��������������

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-52210iKSP210,MXPA10¥1,010202401

main77027-52210iKSP210,MXPA10¥1,010202002-202401

main77027-52220iMXPA15¥590202401

main77027-52220iMXPA15¥590202003-202401

main77027-52230iMXPH14,17¥1,260202401

main77027-52230iMXPH10,15¥1,260202002

77100TANK ASSY, FUEL

main77001-52630iKSP210,MXPA10¥27,100202401

main77001-52630iKSP210,MXPA10¥27,100202002-202401

main77001-52650iMXPA15¥27,100202401

main77001-52650iMXPA15¥27,100202003-202401

main77001-52660iMXPH10¥27,100202002-202208

main77001-52670iMXPH15¥30,000202002-202208

main77001-52690iMXPH10¥27,100202208

main77001-52690iMXPH14¥27,100202401

main77001-52700iMXPH17¥27,100202401

main77001-52700iMXPH15¥27,100202208

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXPA15¥1,270202003-202401

main77144-30030iMXPA15¥1,270202401

main77144-30030iMXPH10,15¥1,270202002

main77144-30030iKSP210,MXPA10¥1,270202002-202401

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMXPH10,15¥220202002

main77169-47030iKSP210,MXPA10¥220202002-202401

main77169-47030iMXPA15¥220202003-202401

main77169-47030iKSP210,MXPA10,MXPH14,17¥220202401

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52280iKSP210,MXPA10¥1,350202401

main77209-52280iKSP210,MXPA10¥1,350202002-202401

main77209-52290iMXPA15¥1,090202401

main77209-52290iMXPA15¥1,090202003-202401

main77209-52300iMXPH10,15¥1,190202002-202208

main77209-52310iMXPH10,15¥1,190202208

main77209-52310iMXPH14,17¥1,190202401

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52300iKSP210,MXPA1#¥300202002-202401

main77216-52300iMXPH10,15¥300202002

main77216-52300iKSP210,MXPA1#,MXPH14,17¥300202401

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52180iKSP210,MXPA1#¥860202002-202401

main77217-52180iMXPH10,15¥860202002

main77217-52180iKSP210,MXPA1#,MXPH14,17¥860202401

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-52050iKSP210,MXPA10¥730202002-202401

main77218-52050iKSP210,MXPA10,MXPH14¥730202401

main77218-52050iMXPH10¥730202002

main77218-52060iMXPH15¥800202002

main77218-52060iMXPA15¥800202002-202401

main77218-52060iMXPA15,MXPH17¥800202401

77241WCLIP, TUBE JOINT

main77241-33011iKSP210,MXPA1#,MXPH1#¥80202002-202103

main77241-60550iKSP210,MXPA1#¥50202104-202401

main77241-60550iMXPH10,15¥50202104

main77241-60550iKSP210,MXPA1#,MXPH14,17¥50202401

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iKSP210,MXPA10¥1,090202002-202401

main77277-52120iMXPH10¥1,090202002

main77277-52120iKSP210,MXPA10,MXPH14¥1,090202401

main77277-52130iMXPH15¥590202002

main77277-52130iMXPA15,MXPH17¥590202401

main77277-52130iMXPA15¥590202002-202401

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K0010iKSP210,MXPA1#¥980202002-202401

main77291-K0010iMXPH10,15¥980202002

main77291-K0010iKSP210,MXPA1#,MXPH14,17¥980202401

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPH10,15¥1,660202002

main77300-12020iKSP210,MXPA1#,MXPH14,17¥1,660202401

main77300-12020iKSP210,MXPA1#¥1,660202002-202401

77316GASKET, FUEL TANK CAP

main77316-52040iKSP210,MXPA1#¥230202002-202401

main77316-52040iMXPH10,15¥230202002

main77316-52040iKSP210,MXPA1#,MXPH14,17¥230202401

77391RING, FUEL INLET BOX

main77391-12020iKSP210,MXPA1#¥180202002-202401

main77391-12020iMXPH10,15¥180202002

main77391-12020iKSP210,MXPA1#,MXPH14,17¥180202401

77391ARING, FUEL INLET BOX

main77391-12020iKSP210,MXPA1#¥180202002-202401

main77391-12020iMXPH10,15¥180202002

main77391-12020iKSP210,MXPA1#,MXPH14,17¥180202401

77512BRACKET, FUEL TANK, REAR

main77512-35140iMXPA15¥230202003-202401

main77512-35140iMXPA15¥230202401

77512CBRACKET, FUEL TANK

main77512-35140iKSP210,MXPA10,MXPH14,17¥230202401

main77512-35140iKSP210,MXPA10¥230202002-202401

main77512-35140iMXPH10,15¥230202002

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52140iKSP210,MXPA10¥3,230202002-202206

main77606-52141iKSP210,MXPA10¥2,930202207-202401

main77606-52141iKSP210,MXPA10¥2,930202401

main77606-52150iMXPA15¥3,000202401

main77606-52150iMXPA15¥3,000202003-202401

main77606-52160iMXPH10,15¥3,330202002-202207

sub77606-52161¥3,030

main77606-52161iMXPH14,17¥3,030202401

main77606-52161iMXPH10,15¥3,030202208

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52060iKSP210,MXPA10¥610202401

main77701-52060iKSP210,MXPA10¥610202002-202401

main77701-52070iMXPA15¥1,070202003-202401

main77701-52070iMXPA15¥1,070202401

main77701-52080iMXPH14,17¥580202401

main77701-52080iMXPH10,15¥580202002

9011908D17

main90119-08D17¥100

9011910995

main90119-10995¥190

9046712056

main90467-12056¥70

9054107036

main90541-07036¥110

9613251100

main96132-51100¥120

24 parts on this diagram · 18 diagrams in section
