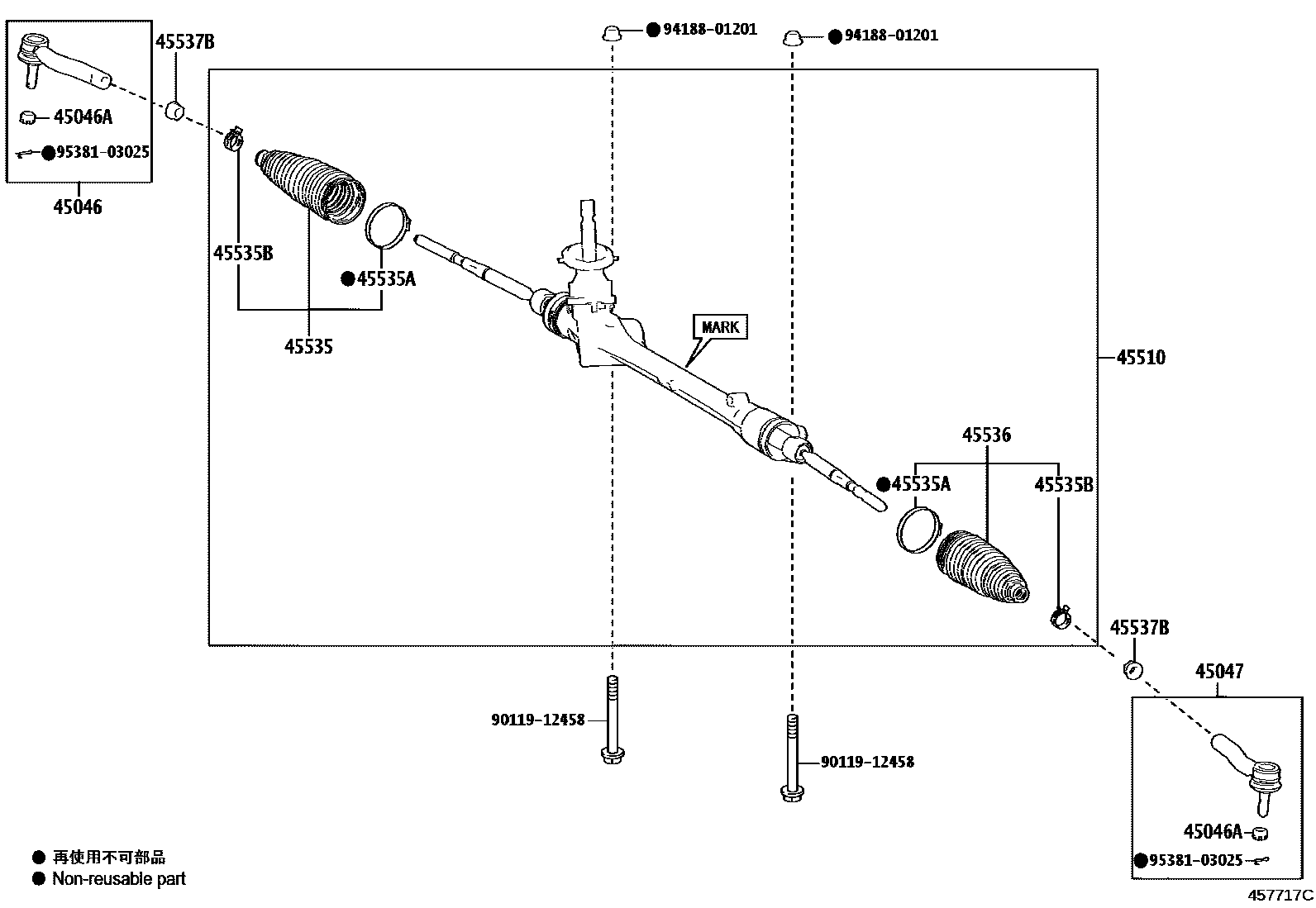

Toyota YARIS — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-K9015iKSP210,MXPA1#¥2,570202002-202401

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKSP210,MXPA1#,MXPH14,17¥130202002-202401

45047END SUB-ASSY, TIE ROD, LH

main45047-K9015iKSP210,MXPA1#,MXPH14,17¥2,570202002-202401

45510GEAR ASSY, STEERING

main45510-K0010iKSP210,MXPA10,MXPH14..G,X¥29,800202002-202401

main45510-K0020iMXPH10..HBDG¥29,800202002-202401

main45510-K0020iMXPH10..HBDG¥29,800202002-202401

main45510-K0020iMXPH17;MXPA10,MXPH14..U,Z¥29,800202401

main45510-K0020iMXPA10..Z¥29,800202002-202401

main45510-K0030iMXPA15¥29,800202003-202401

45535BOOT, STEERING RACK, NO.1

main45535-59075iKSP210,MXPA1#¥790202002-202401

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020iKSP210,MXPA1#,MXPH10,15¥240202002

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iKSP210,MXPA1#,MXPH10,15¥320202002

45536BOOT, STEERING RACK, NO.2

main45535-59075iKSP210,MXPA1#¥790202002-202401

45537BNUT, RACK END LOCK

main90179-14019iMXPH10,15¥130202002-202401

9011912458

main90119-12458¥360

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

12 parts on this diagram · 2 diagrams in section
