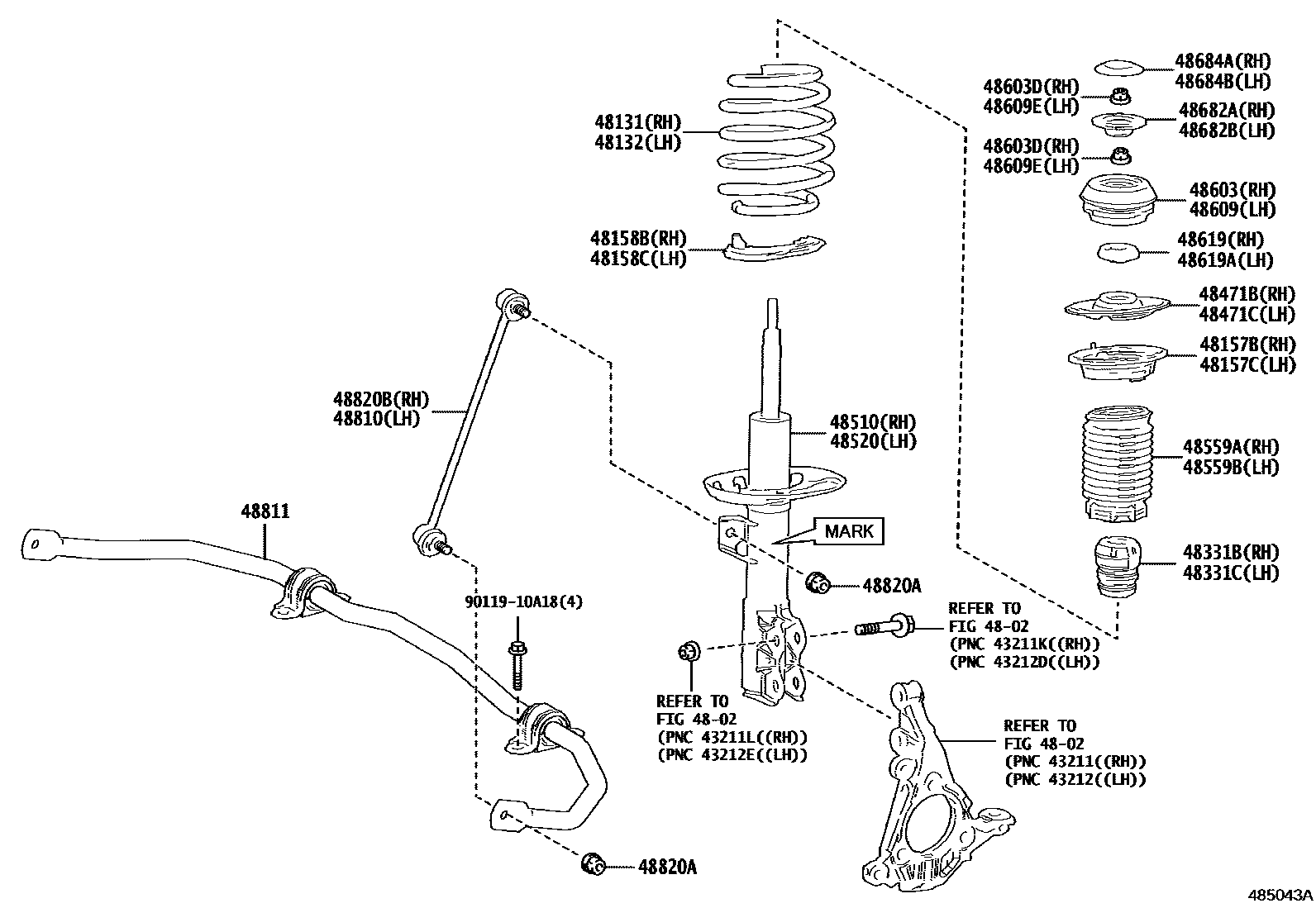

Toyota YARIS — FRONT SPRING & SHOCK ABSORBER

0001 1 0004 1 0005 1

4802

48131SPRING, FRONT COIL, RH

main48131-52R70iMXPH10¥3,890202204

main48131-K0010iKSP210¥3,610202002-202401

main48131-K0020iMXPA10..X¥3,890202002-202401

main48131-K0030iMXPH10¥4,280202002-202203

sub48131-52R70¥3,890

main48131-K0140iMXPA15¥4,440202003-202401

main48131-K0150iMXPH15¥4,440202002

48132SPRING, FRONT COIL, LH

main48131-52R70iMXPH10¥3,890202204

main48131-K0010iKSP210¥3,610202002-202401

main48131-K0020iMXPA10¥3,890202002-202401

main48131-K0030iMXPH10¥4,280202002-202203

sub48131-52R70¥3,890

main48131-K0140iMXPA15¥4,440202003-202401

main48131-K0150iMXPH17¥4,440202002

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-K0010iKSP210,MXPA1#¥620202002-202401

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-K0010iKSP210,MXPA1#,MXPH14,17¥620202002-202401

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-K0011iKSP210,MXPA1#¥580202002-202401

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-K0011iKSP210,MXPA1#¥580202002-202401

48331BBUMPER, FRONT SPRING, RH

main48331-K0010iKSP210,MXPA10¥300202002-202401

main48331-K0020iMXPA15¥540202003-202401

48331CBUMPER, FRONT SPRING, LH

main48331-K0010iKSP210,MXPA10¥300202002-202401

main48331-K0020iMXPA15¥540202003-202401

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-K0010iMXPH10,15¥880202002-202401

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-K0010iKSP210,MXPA1#¥880202002-202401

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52X40iKSP210¥15,300202401

main48510-52X50iMXPA10..6F..X¥15,300202401

main48510-52X50iMXPA10..6F..X¥15,300202401

main48510-52X60iMXPA15¥16,000202401

main48510-K0010iKSP210¥16,900202002-202110

sub48510-K0011¥16,900

main48510-K0011iKSP210¥16,900202111-202401

main48510-K0030iMXPA10¥16,900202002-202110

sub48510-K0031¥16,900

main48510-K0030iMXPA10..X¥16,900202002-202110

sub48510-K0031¥16,900

main48510-K0031iMXPA10..X¥16,900202111-202401

main48510-K0031iMXPA10¥16,900202111-202401

main48510-K0040iMXPH10¥16,900202002-202110

sub48510-K0041¥15,300

main48510-K0041iMXPH10¥15,300202111

main48510-K0050iMXPA15¥17,600202003-202110

sub48510-K0051¥17,600

main48510-K0051iMXPA15¥17,600202111-202401

main48510-K0060iMXPH15¥16,900202002-202110

sub48510-K0061¥15,300

main48510-K0061iMXPH15¥15,300202111

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52M40iKSP210¥15,300202401

main48520-52M50iMXPA10..6F..X¥15,300202401

main48520-52M50iMXPA10¥15,300202401

main48520-52M60iMXPA15¥16,000202401

main48520-K0010iKSP210¥16,900202002-202110

sub48520-K0011¥16,900

main48520-K0011iKSP210¥16,900202111-202401

main48520-K0030iMXPA10¥16,900202002-202110

sub48520-K0031¥16,900

main48520-K0030iMXPA10¥16,900202002-202110

sub48520-K0031¥16,900

main48520-K0031iMXPA10..X¥16,900202111-202401

main48520-K0031iMXPA10¥16,900202111-202401

main48520-K0040iMXPH10¥16,900202002-202110

sub48520-K0041¥15,300

main48520-K0041iMXPH10¥15,300202111

main48520-K0050iMXPA15¥17,600202003-202110

sub48520-K0051¥17,600

main48520-K0051iMXPA15¥17,600202111-202401

main48520-K0060iMXPH15¥16,900202002-202110

sub48520-K0061¥15,300

main48520-K0061iMXPH15¥15,300202111

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-K0010iKSP210,MXPA1#¥910202002-202401

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-K0010iKSP210,MXPA1#¥910202002-202401

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-K0011iKSP210,MXPA1#¥1,690202002-202401

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iKSP210,MXPA1#¥100202002-202401

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-K0011iKSP210,MXPA1#¥1,690202002-202401

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iKSP210,MXPA1#,MXPH14,17¥100202002-202401

48619BEARING, STRUT MOUNTING, RH

main48619-K0010iKSP210,MXPA1#¥840202002-202401

48619ABEARING, STRUT MOUNTING, LH

main48619-K0010iKSP210,MXPA1#¥840202002-202401

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-K0010iKSP210,MXPA1#¥410202002-202401

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-K0010iKSP210,MXPA1#¥410202002-202401

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iKSP210,MXPA1#¥500202002-202401

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iKSP210,MXPA1#¥500202002-202401

48810LINK ASSY, FRONT STABILIZER, LH

main48820-K0020iKSP210,MXPA1#¥4,350202002-202401

48811BAR, STABILIZER, FRONT

main48804-K0010iKSP210,MXPA10¥7,200202002-202401

main48804-K0020iMXPH15¥7,500202002-202401

main48811-52310iKSP210¥7,000202401

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iKSP210,MXPA1#¥100202002-202401

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-K0020iKSP210,MXPA1#¥4,350202002-202401

9011910A18

main90119-10A18¥160

30 parts on this diagram · 3 diagrams in section
