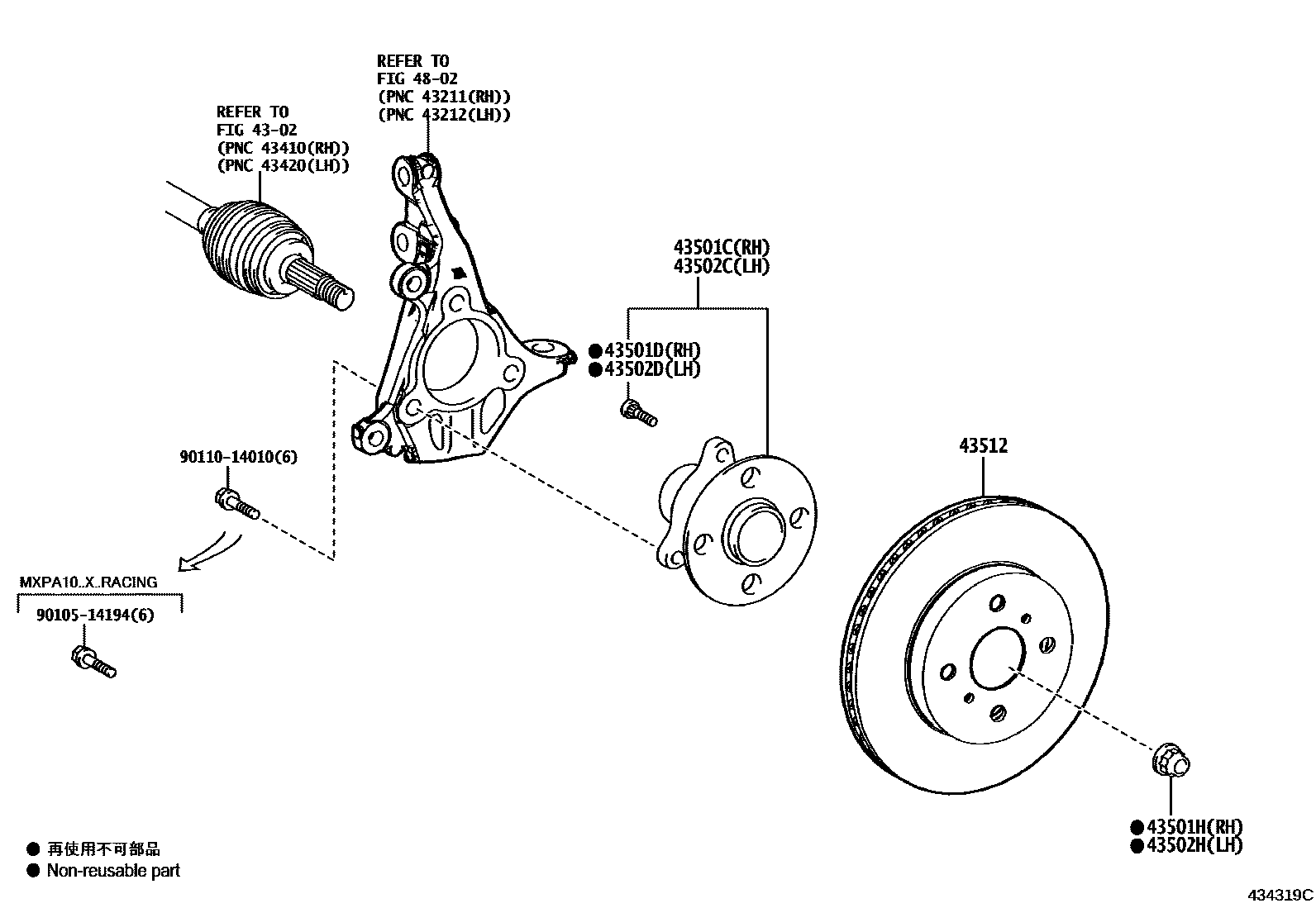

Toyota YARIS — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-K0020iKSP210,MXPA1#¥13,600202002-202401

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKSP210,MXPA1#¥240202002-202401

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP210,MXPA1#¥220202002-202401

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-K0020iKSP210,MXPA1#¥13,600202002-202401

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKSP210,MXPA1#¥240202002-202401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP210,MXPA1#¥220202002-202401

43512DISC, FRONT

main43512-K0010iKSP210,MXPA1#¥8,000202002-202401

main43512-K0020iMXPH15¥9,300202002-202307

sub43512-K0021¥8,500

main43512-K0021iMXPH15¥8,500202308

4802

9010514194

main90105-14194¥240

9011014010

main90110-14010¥190

11 parts on this diagram · 1 diagram in section
