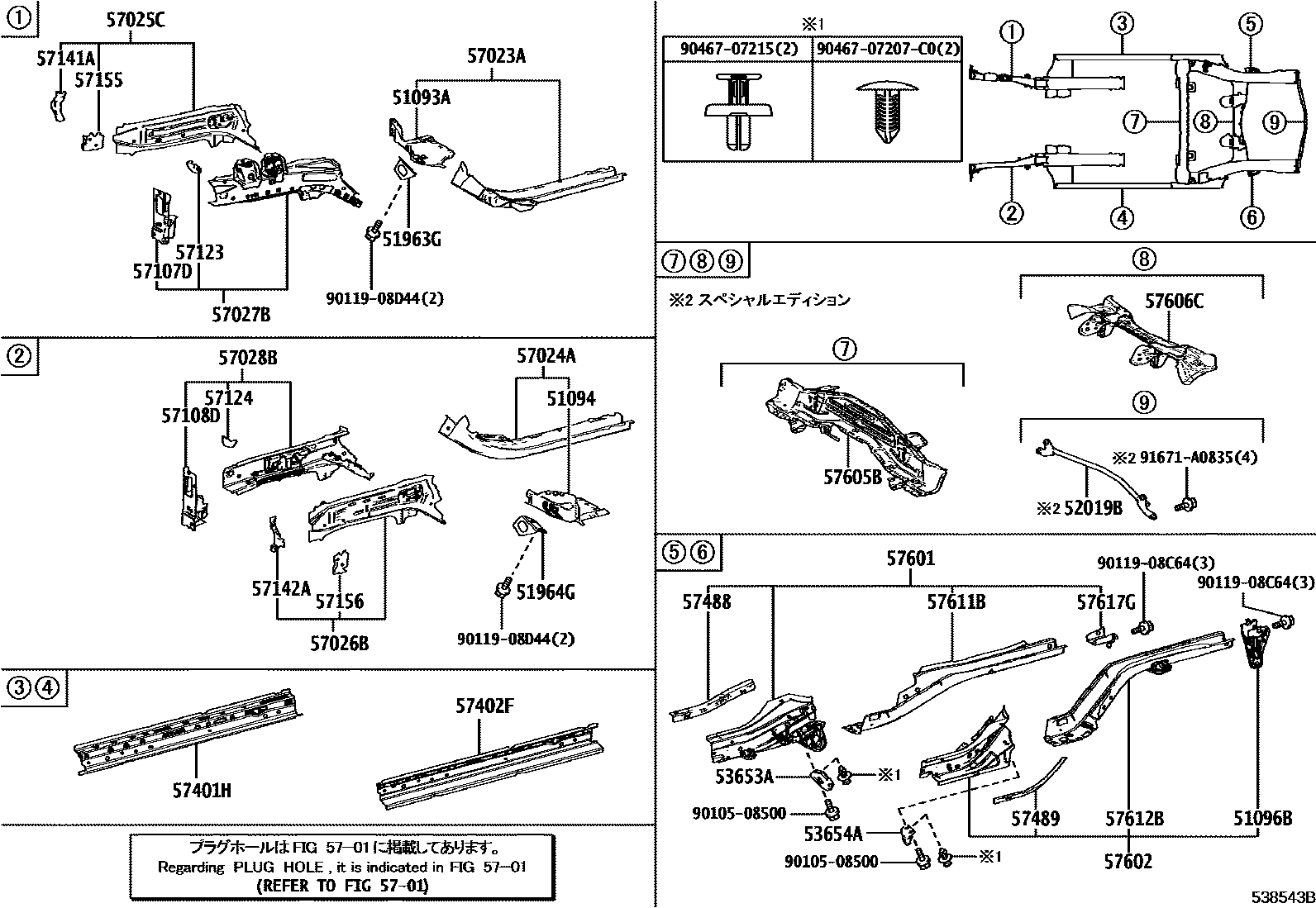

Toyota YARIS — FLOOR SIDE MEMBER
51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH
51094HOOK SUB-ASSY, TRANSPORT, FRONT LH
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
51963GHOOK, TRANSPORT, FRONT RH
51964GHOOK, TRANSPORT, FRONT LH
52019BBAR SUB-ASSY, REAR BUMPER
53653ABRACE, REAR SUSPENSION, LOWER RH
53654ABRACE, REAR SUSPENSION, LOWER LH
5701
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57488REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 RH
57489REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57611BMEMBER, REAR FLOOR SIDE, FRONT RH
57612BMEMBER, REAR FLOOR SIDE, FRONT LH
57617GRETAINER, REAR BUMPER ARM
9010508500
9011908C64
9011908D44
9046707207C0
main90467-07207C0
9046707215
91671A0835
40 parts on this diagram · 4 diagrams in section
