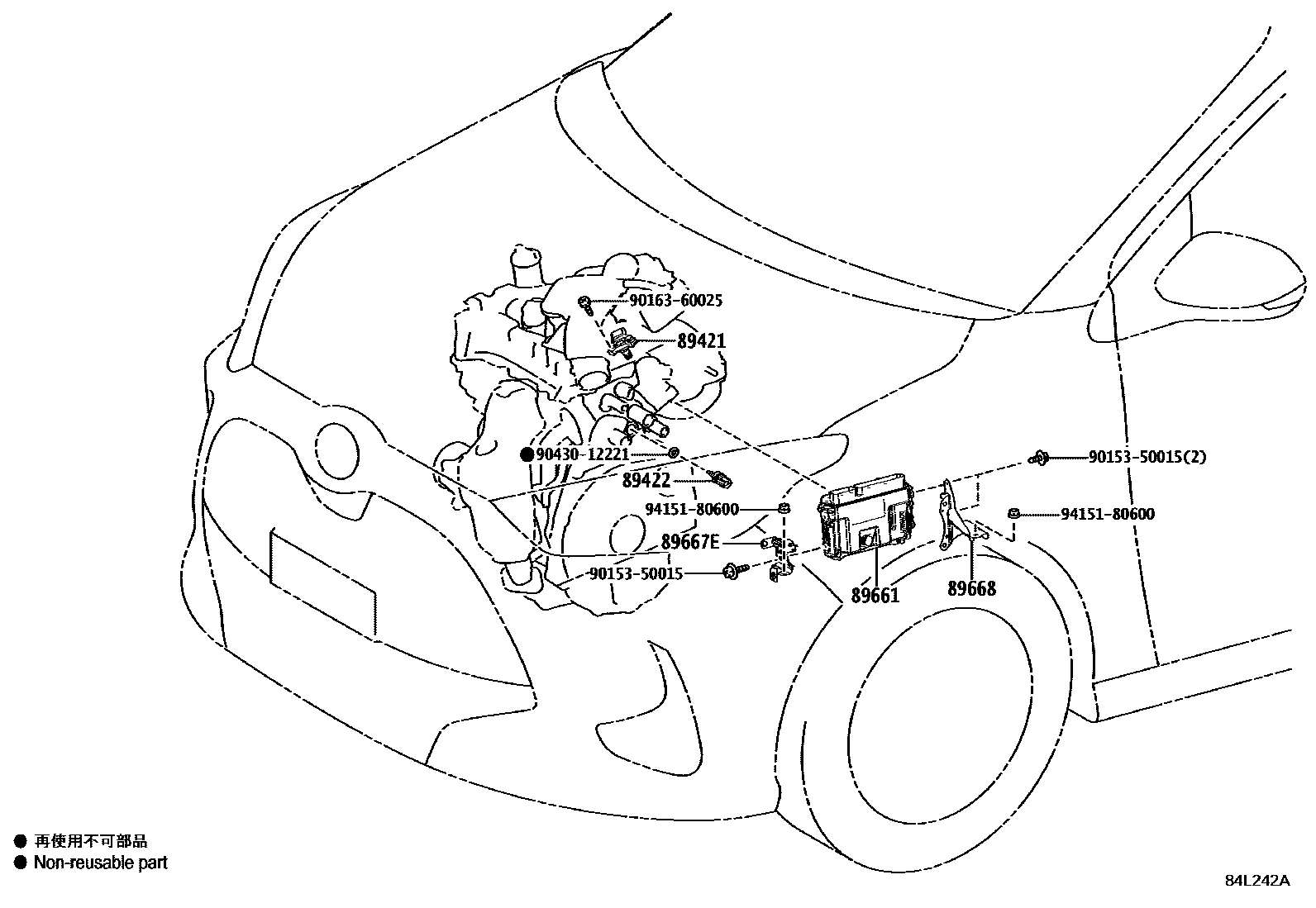

Toyota YARIS — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXPA1#¥5,900202002-202401

main89421-52010iKSP210¥7,800202002-202401

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKSP210¥2,410202002-202401

89661COMPUTER, ENGINE CONTROL

main89661-5CC40iMXPA10..6F¥72,400202002-202106

sub89661-5CC41¥72,400

main89661-5CC41iMXPA10..6F¥72,400202107-202112

sub89661-5CC42¥72,400

main89661-5CC42iMXPA10..6F¥72,400202201-202401

main89661-5CE30iMXPA10..CVT¥72,400202105-202106

sub89661-5CE31¥72,400

main89661-5CE31iMXPA10..CVT¥72,400202107-202112

sub89661-5CE32¥72,400

main89661-5CE32iMXPA10..CVT¥72,400202201-202401

main89661-5CE40iMXPA15¥72,400202105-202106

sub89661-5CE41¥72,400

main89661-5CE41iMXPA15¥72,400202107-202112

sub89661-5CE42¥72,400

main89661-5CE42iMXPA15¥72,400202201-202401

main89661-5CJ60iMXPA1#..CVT¥65,800202401

main89661-5CJ90iMXPA10..6F¥65,800202401

main89661-5CK00iMXPH14,17¥65,800202401

main89661-5CL10iKSP210202401-202402

main89661-5CL90iKSP210¥65,800202402

main89661-K0060iKSP210¥86,900202002-202003

sub89661-K0061¥86,900

main89661-K0061iKSP210¥86,900202004-202008

sub89661-K0062¥86,900

main89661-K0062iKSP210¥86,900202009-202010

sub89661-K0063¥72,400

main89661-K0063iKSP210¥72,400202011-202401

main89661-K0070iMXPH10¥86,900202002-202011

sub89661-K0071¥72,400

main89661-K0071iMXPH10¥72,400202012-202106

sub89661-K0072¥72,400

main89661-K0072iMXPH10¥72,400202107

main89661-K0480iMXPH15¥86,900202002-202011

sub89661-K0481¥72,400

main89661-K0481iMXPH15¥72,400202012-202106

sub89661-K0482¥72,400

main89661-K0482iMXPH15¥72,400202107

main89661-K0530iMXPA10..CVT¥72,400202002-202105

sub89661-K0531¥72,400

main89661-K0540iMXPA15¥72,400202003-202105

sub89661-K0541¥72,400

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iKSP210,MXPA1#¥400202002-202401

main89667-K0020iMXPH10,15¥450202002

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52430iMXPA1#¥680202002-202401

main89668-52440iKSP210¥580202002-202401

main89668-K0020iMXPH10,15¥640202002

9015350015

main90153-50015¥60

9016360025

main90163-60025¥60

9043012221

main90430-12221¥200

9415180600

main94151-80600¥60

9 parts on this diagram · 3 diagrams in section
