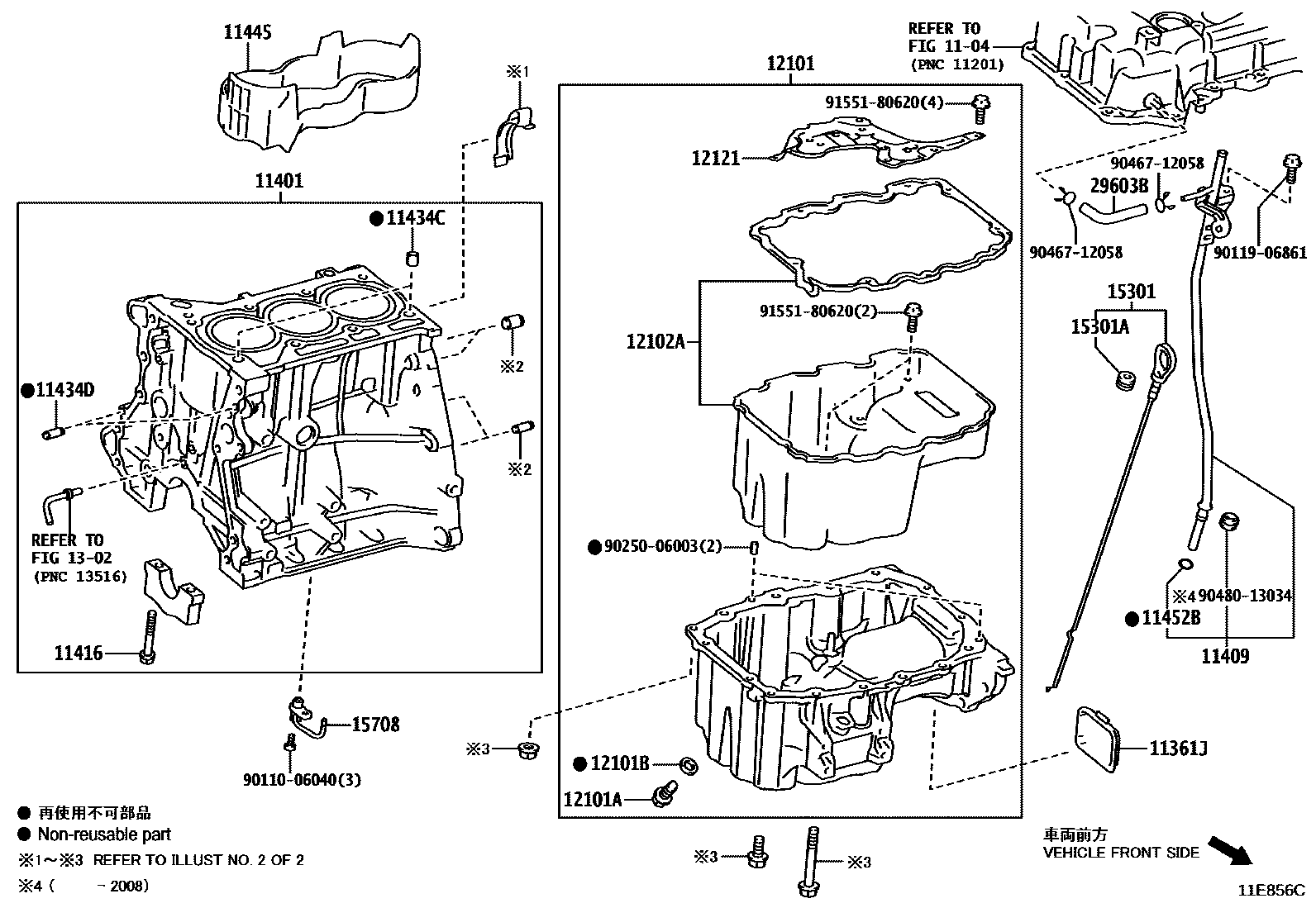

Toyota YARIS — CYLINDER BLOCK

0001 1 0002 1 0003 1���������� 0004 1���������� 0005 1������������(1/2) 0006 1������������(1/2) 0007 1������������(2/2)

1104

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-23020i1KRFE..KSP210¥540202002-202401

main11361-25010iM15#..MXPA1#,MXPH14,17¥700202002-202401

11401BLOCK SUB-ASSY, CYLINDER

main11401-40080i1KRFE..KSP210¥115,000202002-202401

main11410-19005iM15AFXE..MXPH10,15¥112,000202002-202401

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-40090i1KRFE..KSP210¥1,600202002-202401

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531i1KRFE..KSP210¥160202002-202401

main90910-02197iM15AFXE..MXPH10,15¥240202002-202401

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-12002i1KRFE..KSP210¥50202002-202401

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1KRFE..KSP210¥90202002-202401

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-15010iM15AFXE..MXPH10,15¥2,150202002-202401

main11445-40021i1KRFE..KSP210¥1,700202002-202401

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KSP210¥190202002-202401

12101PAN SUB-ASSY, OIL

main12101-40140i1KRFE..KSP210¥11,600202002-202401

main12102-15010iM15AFXE..MXPH10,15¥3,780202002-202401

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM15AFKS..MXPA1#¥160202002-202401

main90341-12032i1KRFE..KSP210¥190202002-202401

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1KRFE..KSP210¥90202002-202401

12102APAN SUB-ASSY, OIL, NO.2

main12102-40010i1KRFE..KSP210¥4,160202002-202104

sub12112-40011¥4,460

main12112-40011i1KRFE..KSP210¥4,460202105-202401

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-15050iM15AFKS..MXPA1#¥1,720202002-202401

main12121-40070i1KRFE..KSP210¥1,420202002-202401

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-40110i1KRFE..KSP210¥750202002-202401

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1KRFE..KSP210¥140202002-202401

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-15010iM15AFKS..MXPA1#¥770202002-202401

main15708-40010i1KRFE..KSP210¥660202002-202401

29603BHOSE, OIL(FOR OIL LEVEL GAUGE GUIDE)

main29603-40010i1KRFE..KSP210¥400202002-202401

9011006040

main90110-06040¥60

9011906861

main90119-06861¥60

9025006003

main90250-06003¥90

9046712058

main90467-12058¥90

9048013034

main90480-13034¥100

9155180620

main91551-80620¥60

25 parts on this diagram · 7 diagrams in section
