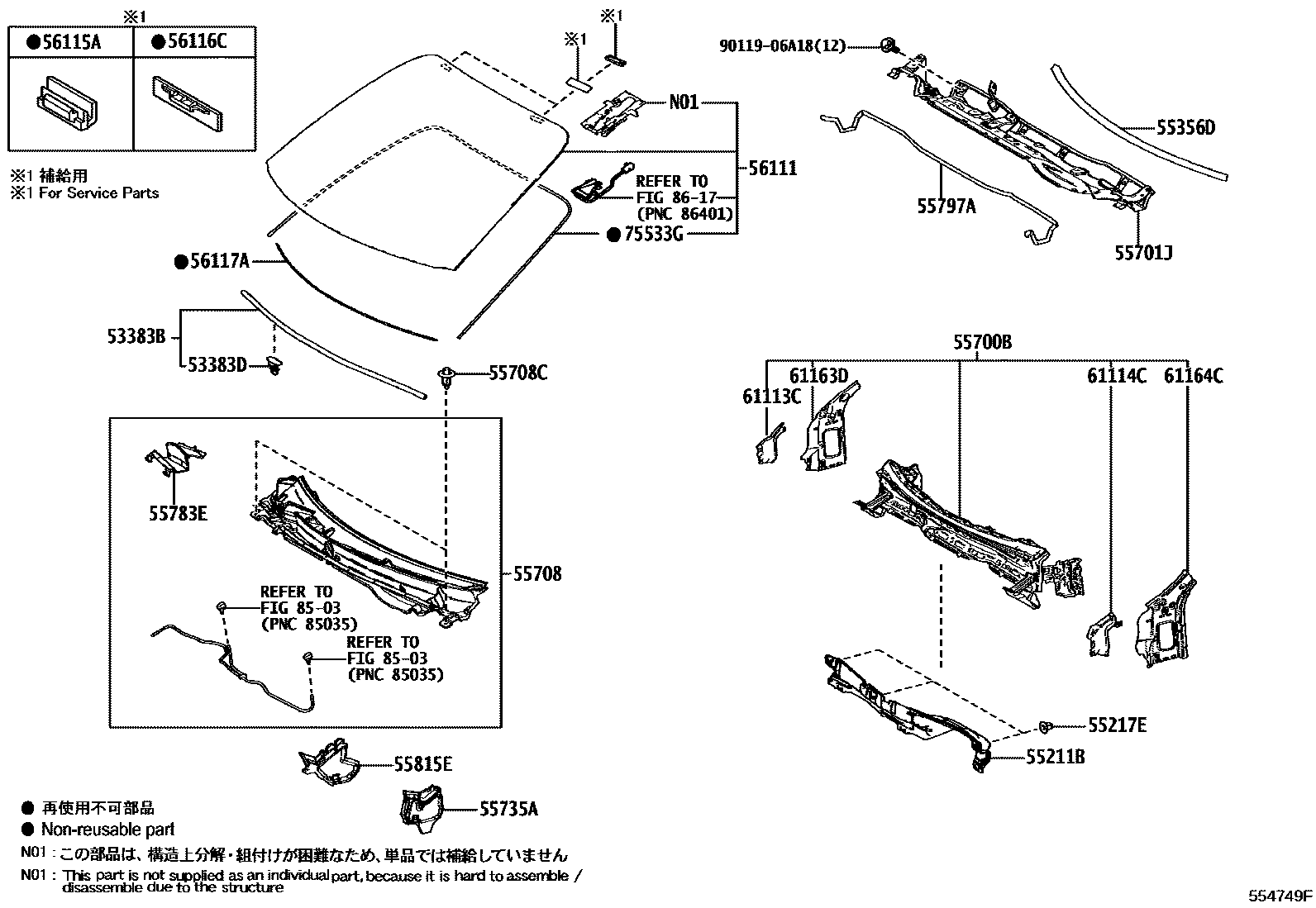

Toyota YARIS — COWL PANEL & WINDSHIELD GLASS

0001 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-K0010iKSP210,MXPA1#,MXPH14,17¥680202002-202401

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iKSP210,MXPA1#¥100202002-202401

55211BSILENCER, FRONT PANEL

main55211-K0050iKSP210,MXPA1#,MXPH14,17¥1,610202002-202401

55217ERETAINER, DASH PANEL SILENCER

main55217-51010iKSP210,MXPA1#,MXPH14,17¥90202002-202401

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-K2010iMXPH10,15¥1,130202002-202401

55700BCOWL ASSY

main55700-52450iMXPH10,15¥20,700202002-202401

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52420iKSP210,MXPA1#,MXPH1#¥10,900202002-202010

main55701-52470iKSP210,MXPA1#¥9,800202011-202401

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-K0010iMXPH10,15¥9,700202002-202401

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7iKSP210,MXPA1#202002-202401

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

55735APLATE, WATER GUARD, LH

main55735-K0060iKSP210,MXPA1#¥1,340202002-202401

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-K0010iMXPH10,15¥1,820202002-202401

55797ASEAL, COWL WATER EXTRACT

main55797-K0010iKSP210,MXPA1#,MXPH14,17¥970202002-202401

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-K0060iMXPH10,15¥1,560202002-202401

56111GLASS, WINDSHIELD

main56101-52R90iMXPH10,15..HBDX¥90,300202106-202401

main56101-52S50iMXPH10,15..HBDG,HBDZ¥108,000202106-202401

main56101-52X10iKSP210,MXPA1#,MXPH14,17..U,X¥80,200202401

main56101-52Y00iKSP210,MXPA1#,MXPH14,17..G,Z¥102,000202401

main56101-K0020iKSP210,MXPA1#,MXPH1#..G,HBDX,X¥90,300202002-202105

main56101-K0070iMXPA1#,MXPH1#..HBDG,HBDZ,Z¥108,000202002-202105

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKSP210,MXPA1#,MXPH14,17¥130202002-202401

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXPH10,15¥120202002-202401

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

main56117-50140iMXPA1#..Z¥870202002-202401

61113CPANEL, SIDE, INNER RH

main61113-K0010iKSP210,MXPA1#¥900202002-202401

61114CPANEL, SIDE, INNER LH

main61114-K0010iKSP210,MXPA1#¥900202002-202401

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-K0010iKSP210,MXPA1#,MXPH10,15¥11,800202002

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-K0010iKSP210,MXPA1#,MXPH10,15¥11,800202002

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-K0010iKSP210,MXPA1#¥1,390202002-202401

8503

8617

9011906A18

main90119-06A18¥80

25 parts on this diagram · 2 diagrams in section
