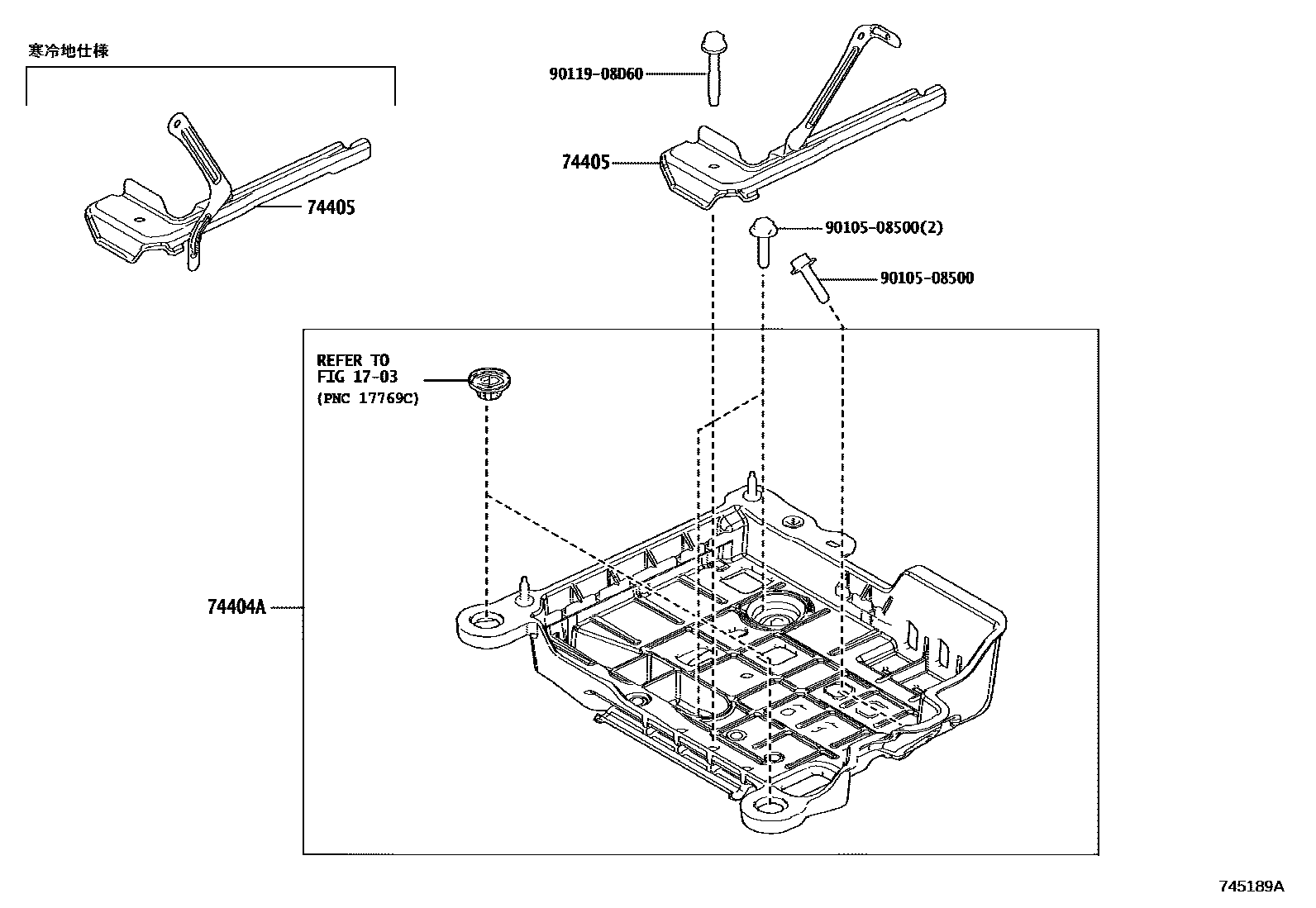

Toyota YARIS — BATTERY CARRIER

0001 1 0002 1

1703

74404ACLAMP SUB-ASSY, BATTERY

main74404-52170iKSP210,MXPA1#¥7,800202002-202006

sub74404-52200¥5,900

main74404-52200iKSP210,MXPA1#¥5,900202007-202401

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-K2010iKSP210,MXPA1#¥1,480202002-202401

9010508500

main90105-08500¥100

9011908D60

main90119-08D60¥100

5 parts on this diagram · 2 diagrams in section
