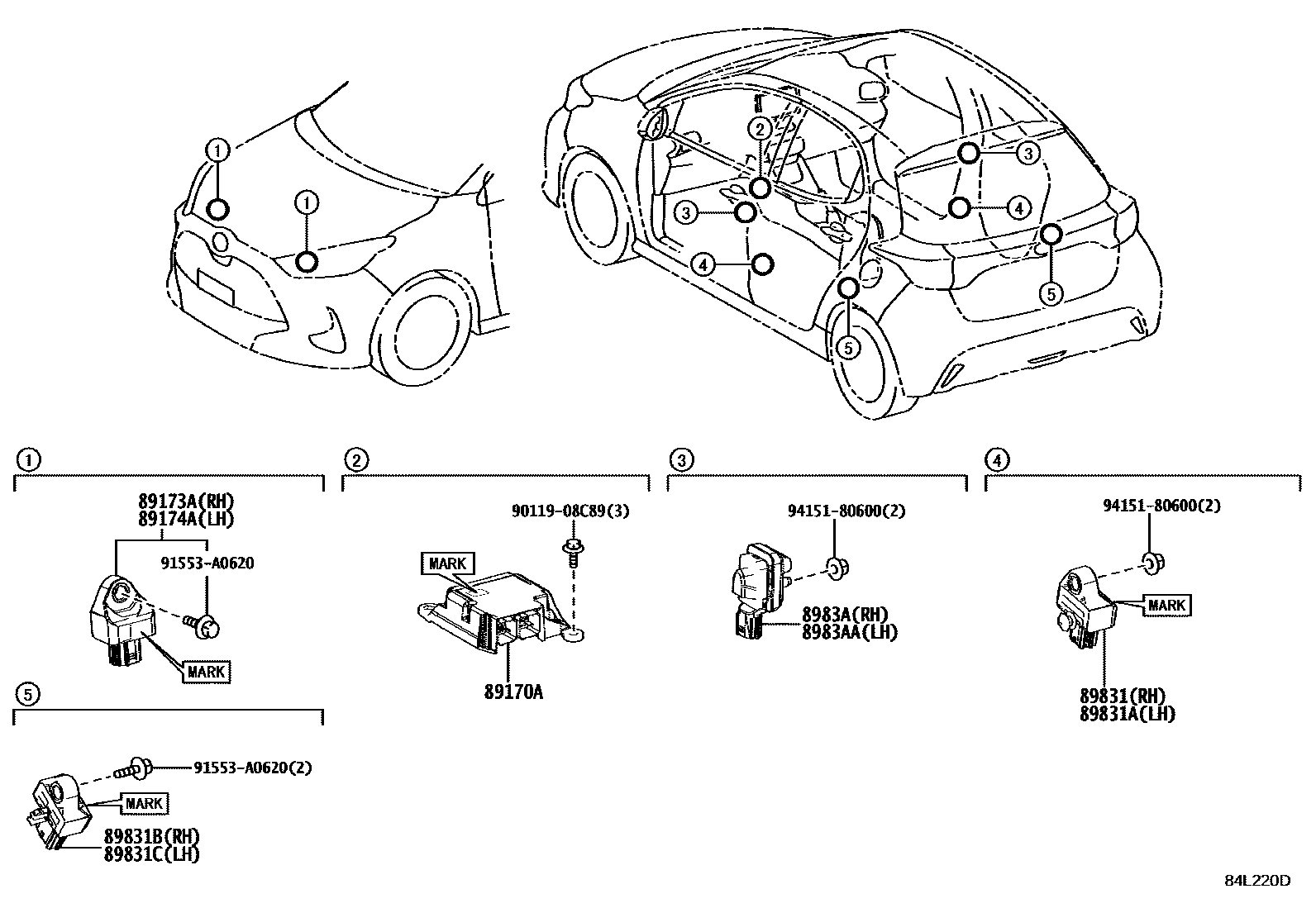

Toyota YARIS — AIR BAG

0001 1 0003 1

89170ACOMPUTER ASSY, AIRBAG

main89170-52Q50iKSP210,MXPA1#,MXPH1#¥37,300202105-202304

main89170-52T40iKSP210,MXPA1#¥28,000202304-202401

main89170-52U10iKSP210,MXPA1#,MXPH14,17¥25,400202401

main89170-K0010iKSP210,MXPA1#,MXPH1#¥37,300202002-202105

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iKSP210,MXPA1#,MXPH10,15¥4,110202304

main89173-59335iKSP210,MXPA1#,MXPH1#¥4,110202002-202304

main89173-59415iKSP210,MXPA1#,MXPH14,17¥4,110202401

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iKSP210,MXPA1#,MXPH10,15¥4,110202304

main89173-59335iKSP210,MXPA1#,MXPH1#¥4,110202002-202304

main89173-59415iKSP210,MXPA1#,MXPH14,17¥4,110202401

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-52120iKSP210,MXPA1#,MXPH1#¥4,110202002-202304

main89831-52180iKSP210,MXPA1#,MXPH14,17¥4,110202401

main89831-52180iKSP210,MXPA1#,MXPH10,15¥4,110202304

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-52120iKSP210,MXPA1#,MXPH1#¥4,110202002-202304

main89831-52180iKSP210,MXPA1#,MXPH10,15¥4,110202304

main89831-52180iKSP210,MXPA1#,MXPH14,17¥4,110202401

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-52130iKSP210,MXPA1#,MXPH1#¥4,110202002-202105

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-52130iKSP210,MXPA1#,MXPH1#¥4,110202002-202105

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iKSP210,MXPA1#,MXPH14,17¥4,110202401

main8983A-52010iKSP210,MXPA1#,MXPH1#¥4,520202002-202101

sub8983A-52011¥4,110

main8983A-52011iKSP210,MXPA1#¥4,110202102-202401

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iKSP210,MXPA1#,MXPH14,17¥4,110202401

main8983A-52010iKSP210,MXPA1#,MXPH1#¥4,520202002-202101

sub8983A-52011¥4,110

main8983A-52011iKSP210,MXPA1#¥4,110202102-202401

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 2 diagrams in section
