Toyota YARIS — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL & FLOOR & RO0005 1DOOR 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

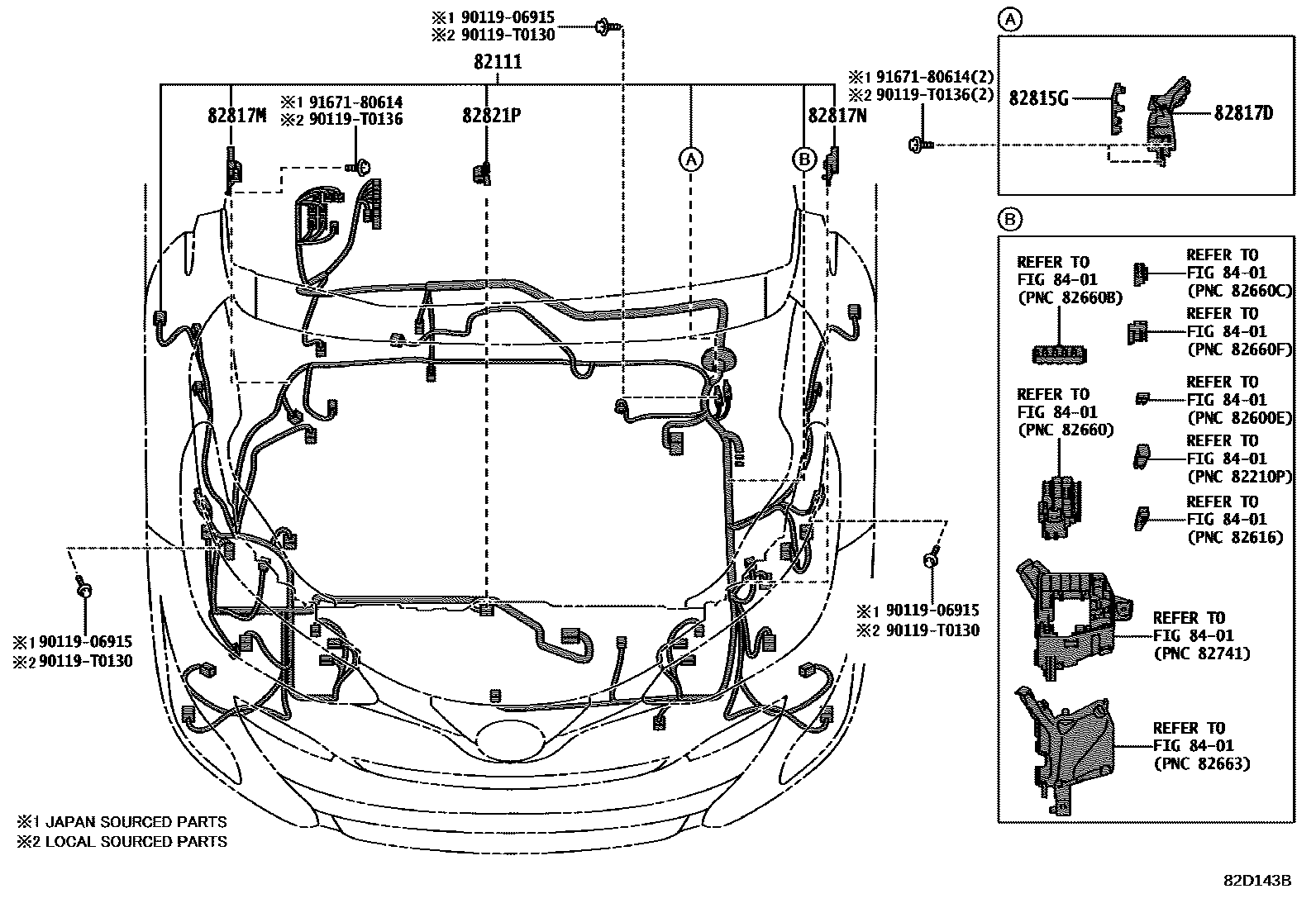

82111WIRE, ENGINE ROOM MAIN

main82115-0U761iNSP151..6F..V201908-202004

main82115-0U762iNSP151..6F..V202004

main82115-0U771iNSP151..6F..D201908-202004

main82115-0U772iNSP151..6F..D202004

main82115-0U781iNSP151..6F..R201908-202004

main82115-0U782iNSP151..6F..R202004

main82115-0U791iNSP151..6F..G201908-202004

main82115-0U792iNSP151..6F..G202004

main82115-0U801iNSP151..CVT..V201908-202004

main82115-0U802iNSP151..CVT..V202004

main82115-0U811iNSP151..CVT..D201908-202004

main82115-0U812iNSP151..CVT..D202004

main82115-0U821iNSP151..CVT..R201908-202004

main82115-0U822iNSP151..CVT..R202004

main82115-0U831iNSP151..CVT..G201908-202004

main82115-0U832iNSP151..CVT..G202004

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0D350iNSP151201908

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-0D580iNSP151201908

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-0DB00iNSP151201908

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-0DB10iNSP151201908

82821PCOVER, CONNECTOR

main82821-30650iNSP151¥60201908

8401

9011906915

main90119-06915¥60

90119T0130

main90119-T0130

90119T0136

main90119-T0136

9167180614

main91671-80614¥60

11 parts on this diagram · 9 diagrams in section
