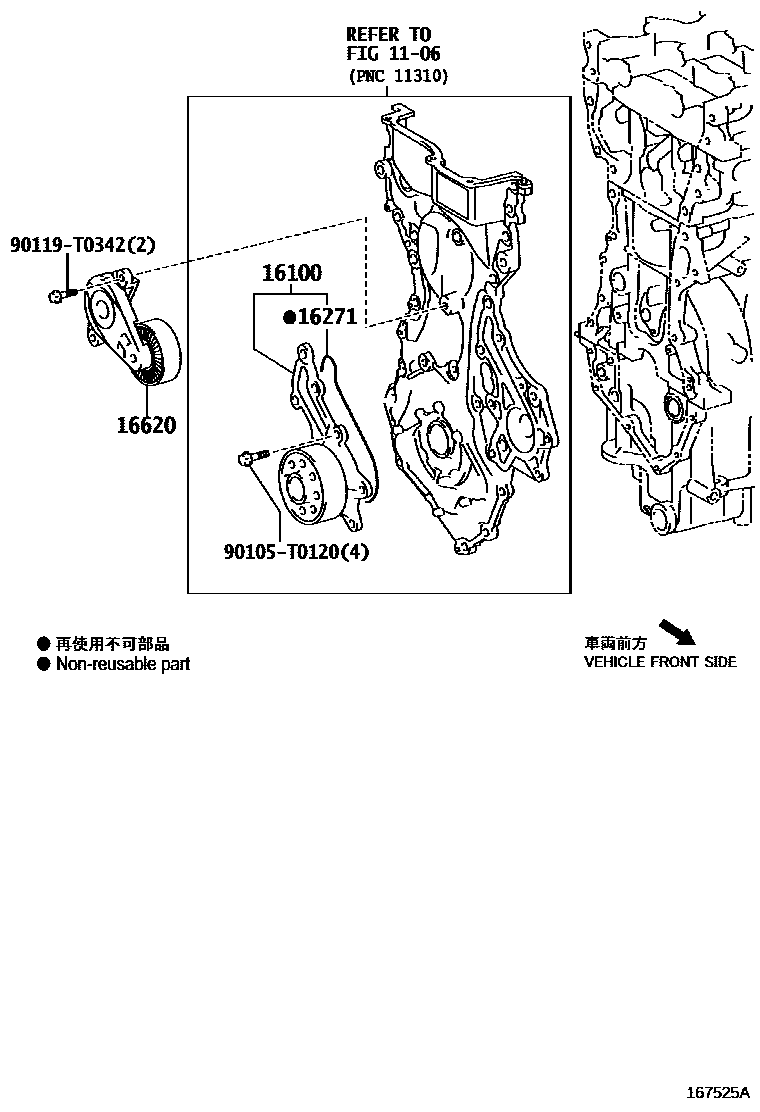

Toyota YARIS — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9490i2NRFE..NSP151¥8,000201908

16271GASKET, WATER PUMP

main16271-0Y030i2NRFE..NSP151¥650201908

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y060i2NRFE..NSP151201908-201912

sub16620-0Y061

main16620-0Y061i2NRFE..NSP151201912

90105T0120

main90105-T0120

90119T0342

main90119-T0342

6 parts on this diagram · 1 diagram in section
