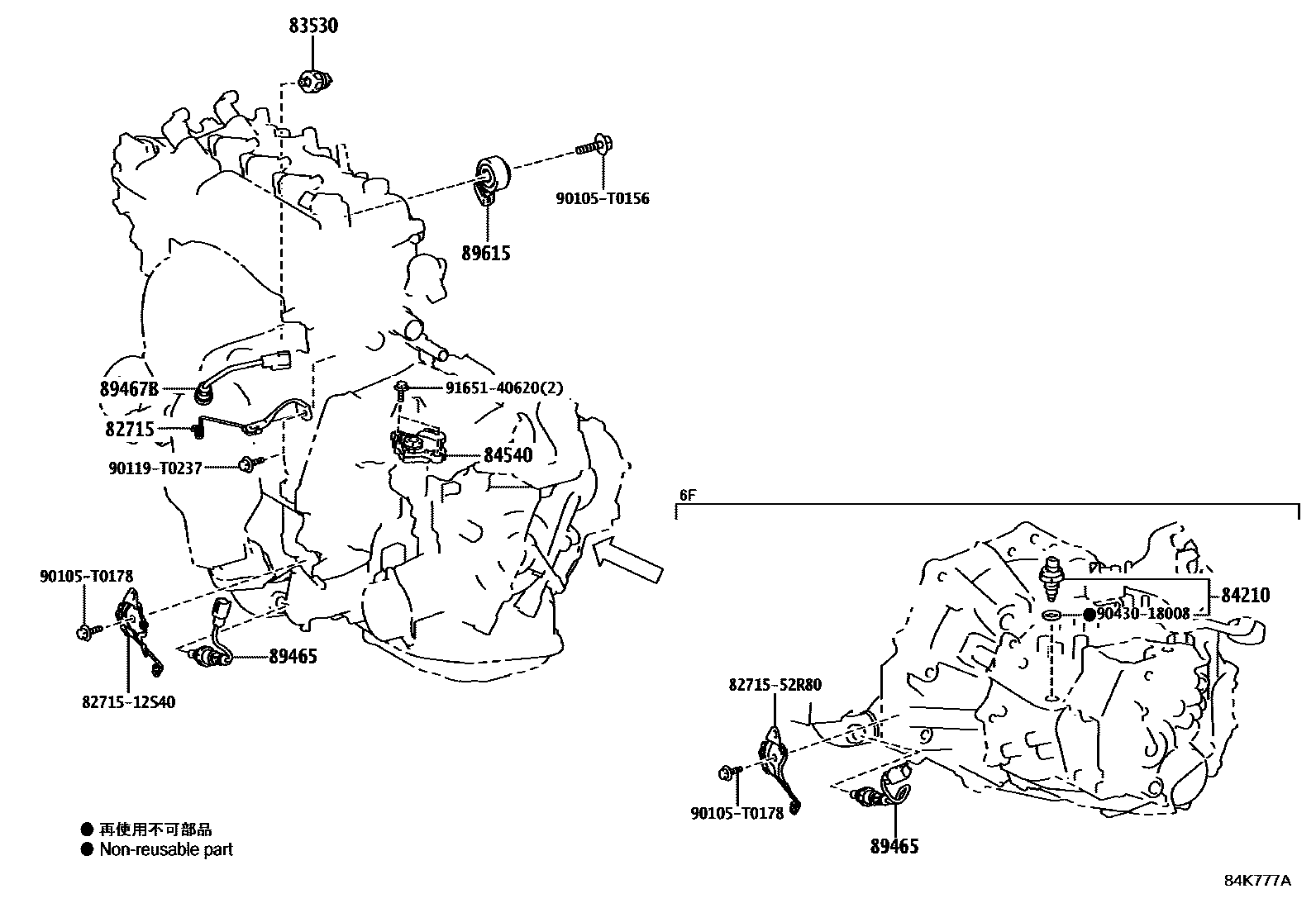

Toyota YARIS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1SEAT 0007 1DOOR, ROOF, FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-5C360iNSP151201908

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP151¥1,970201908

DENSO

main83530-60020iNSP151¥1,970201908

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP151..6F¥1,360201908

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP151..CVT¥7,600201908

89465SENSOR, OXYGEN

main89465-52740iNSP151¥6,500201908

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP151¥9,900201908

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP151¥2,370201908

8271512S40BRACKET,WIRING HARNESS CLAMP

main82715-12S40¥540

8271552R80BRACKET,WIRING HARNESS CLAMP

main82715-52R80

90105T0156

main90105-T0156

90105T0178

main90105-T0178

90119T0237

main90119-T0237

9043018008

main90430-18008¥110

9165140620

main91651-40620¥70

14 parts on this diagram · 7 diagrams in section
