Toyota YARIS — SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0D270iNSP151201908

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0D270iNSP151201908

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-0D140iNSP151201908

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-0D140iNSP151201908

67772GCAP, FRONT PILLAR COVER

main67772-95J03iNSP151¥170201908

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0D310iNSP151201908

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0D270iNSP151201908

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iNSP151¥140201908

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-0D090iNSP151201908

sub75755-0D040

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-0D090iNSP151201908

sub75756-0D040

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-0D080iNSP151201908

sub75761-0D020

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-0D080iNSP151201908

sub75762-0D020

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iNSP151¥70201908

FRONT,REAR

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03¥170

9043009003

main90430-09003¥60

9046710162

main90467-10162¥90

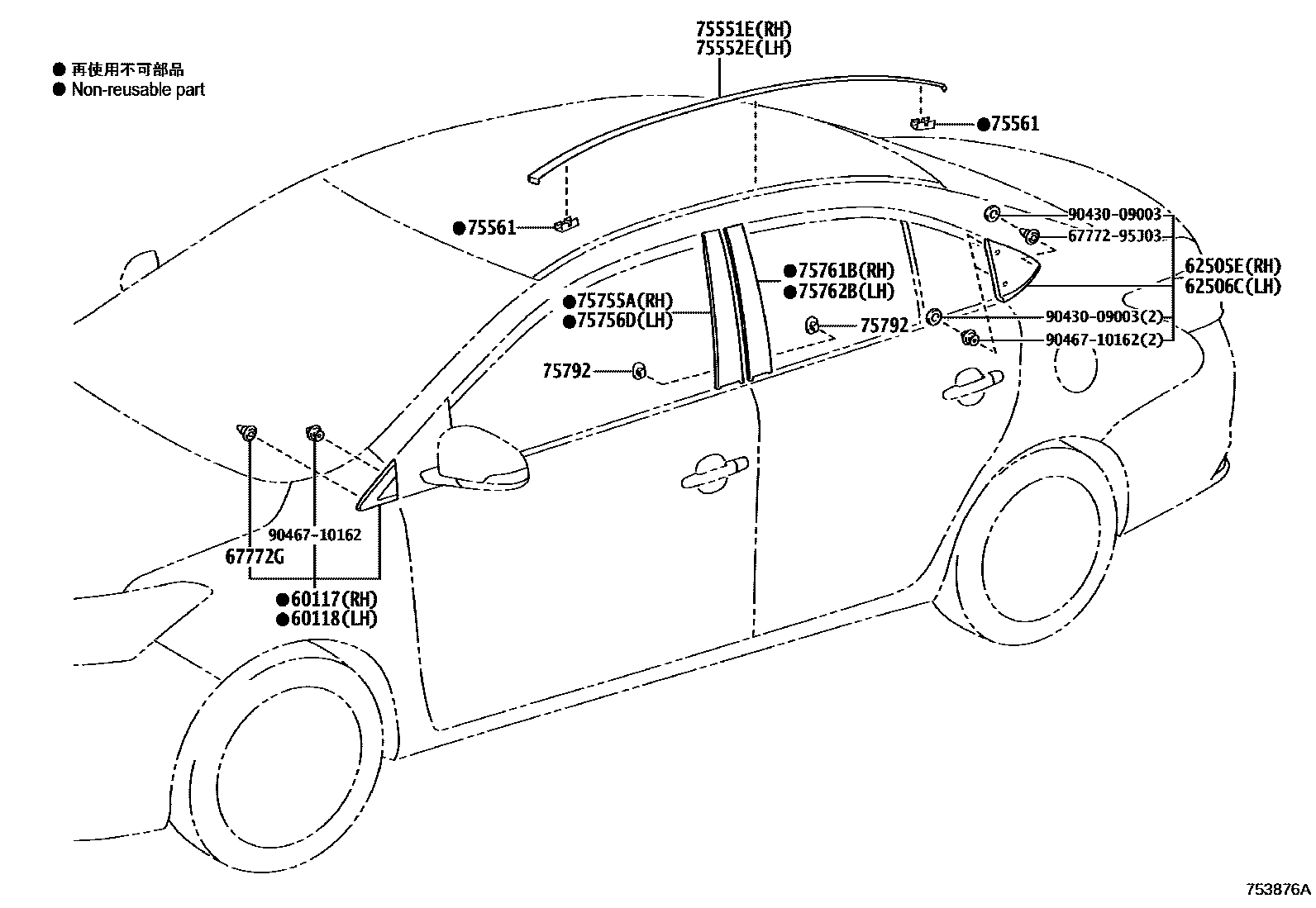

16 parts on this diagram · 1 diagram in section
