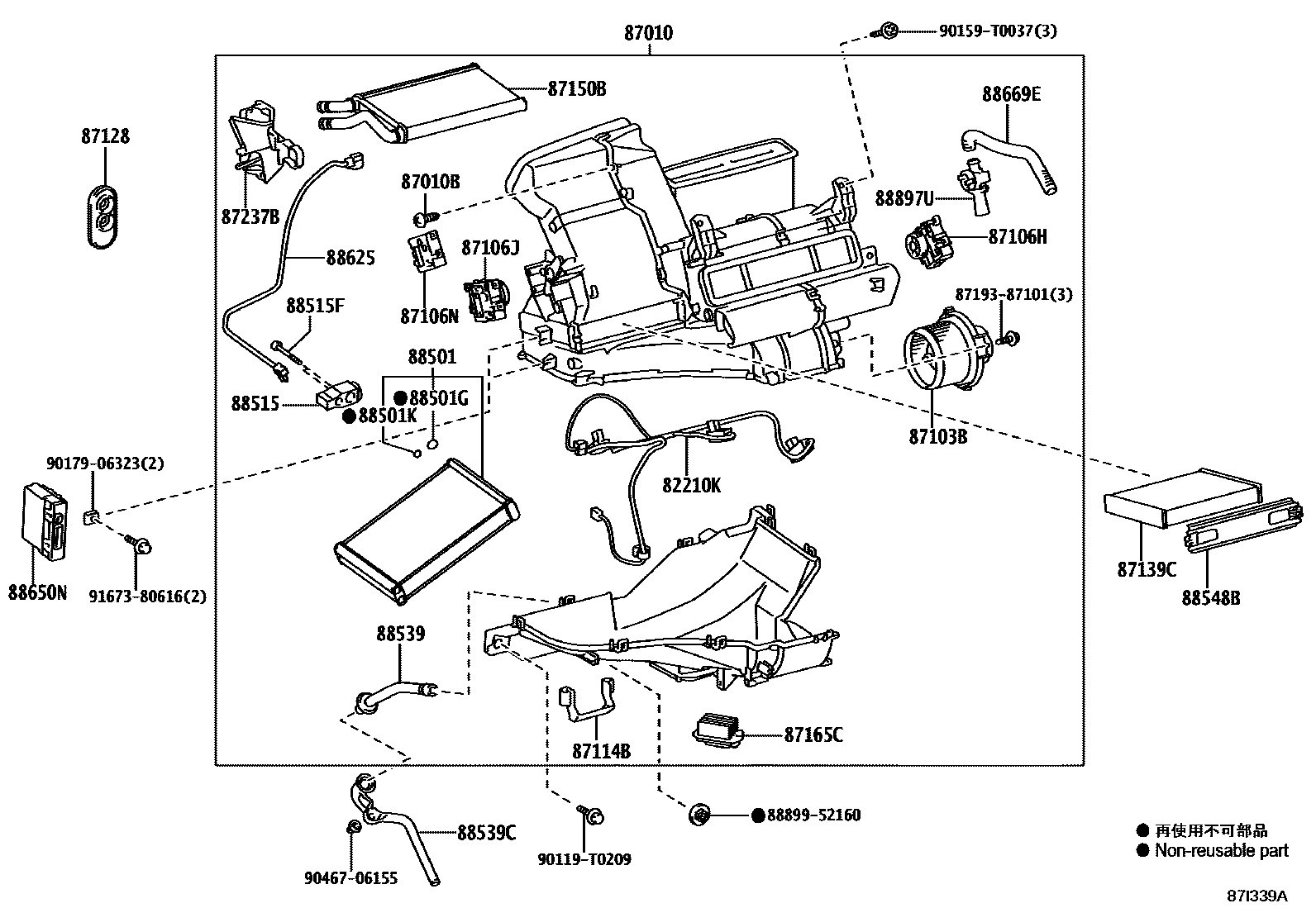

Toyota YARIS — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87010BSCREW(FOR AIR CONDITIONER UNIT)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87114BCOVER, HEATER
87128GROMMET, HEATER
87139CFILTER, CLEAN AIR
POLLEN FILTER,OE PART
POLLEN DEODORANT
87150BRADIATOR ASSY, HEATER
87165CCONTROL, BLOWER MOTOR
87237BCOVER, HEATER PIPING
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88548BCASE, AIR FILTER
88650NAMPLIFIER ASSY, AIR CONDITIONER
88669EHOSE, AIR
88897UPIPE, ASPIRATOR
8719387101
8889952160COVER, EVAPORATOR
90119T0209
main90119-T0209
90159T0037
main90159-T0037
9017906323
9046706155
9167380616
32 parts on this diagram · 3 diagrams in section
